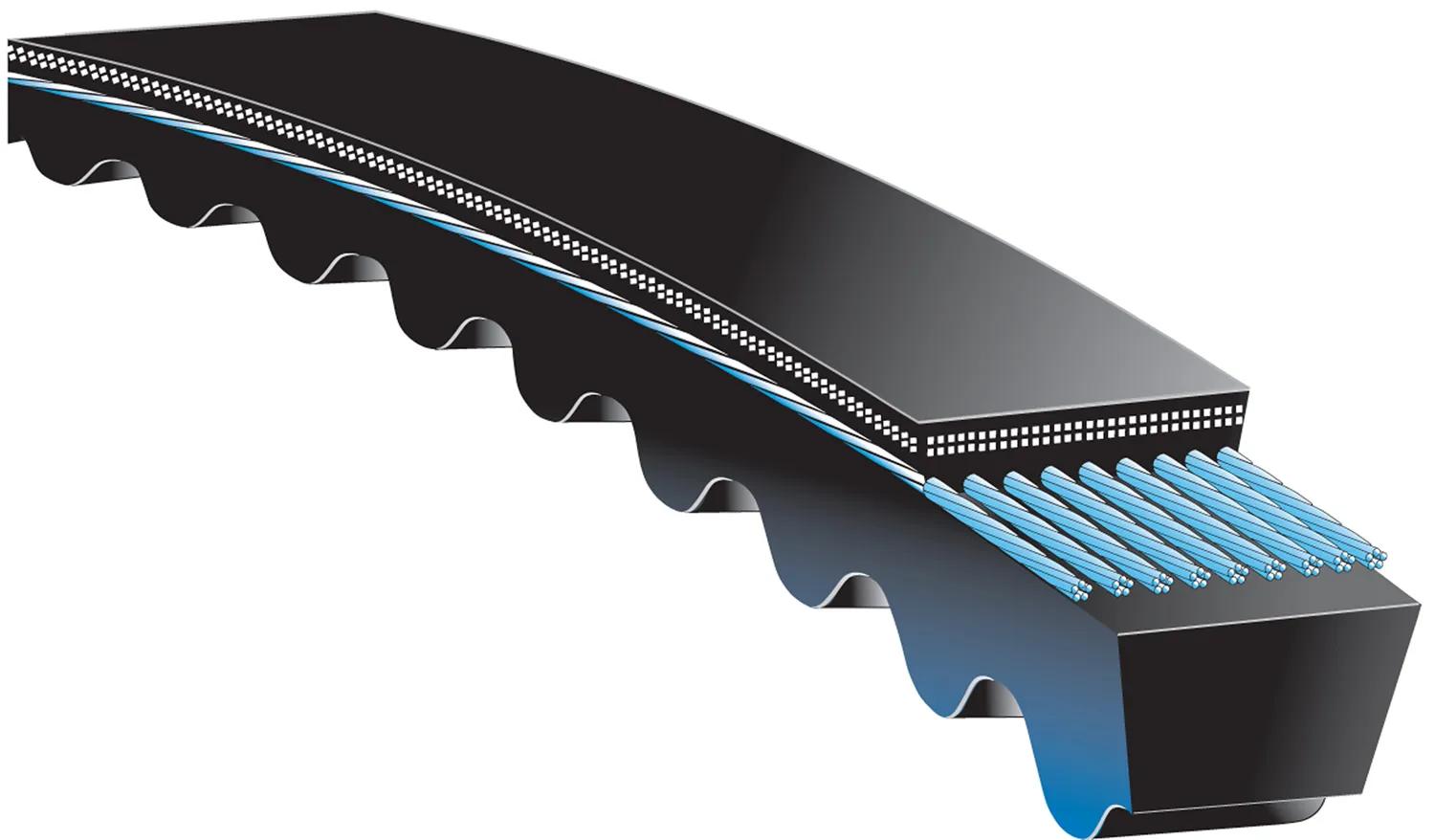

Narrow Section Molded Notch V-Belt, W: 3/8 in
#GAT3VX280
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Notched |
| Length | 28 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | 3VX |
| Length Range | 25 to 29.99 in |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 05110187 |
| 11032 |
| 128819A |
| 25657 |
| 265962 |
| 2925B06H17 |
| 29504639 |
| 2L379 |
| 3030008409344 |
| 308280 |
| 32862 |
| 37280 |
| 3VX280 |
| 4280 |
| 434360 |
| 434626 |
| 548444 |
| 548607 |
| 611118 |
| 7234 |
| 78526 |
| 9XN710 |
| CP9151 |
| MS392773V280 |
| 126292C |
| 265-962 |
| 2925B06G17 |
| A-3VX280 |
| SPZ710 |
| 13VX280 |
| A3VX280 |
| 128819 |
| 41006333 |
| 94120280 |
