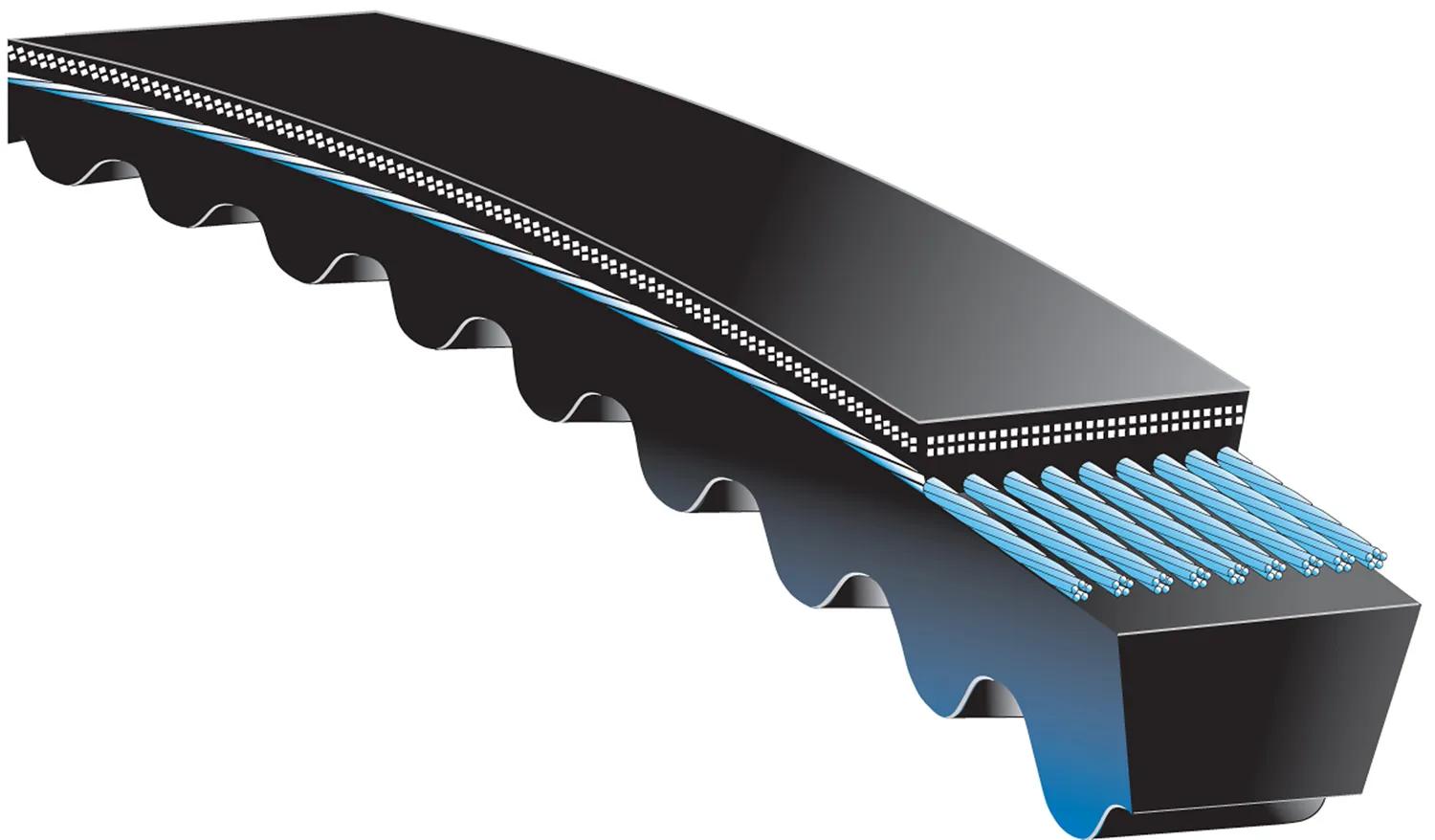

Narrow Section Molded Notch V-Belt, W: 3/8 in
#GAT3VX300
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Notched |
| Length | 30 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | 3VX |
| Length Range | 30 to 34.99 in |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 012229 |
| 19033820 |
| 2L380 |
| 3030001038691 |
| 3VX300 |
| 3VX300PBL |
| 4300 |
| 75980 |
| 780735 |
| 78735 |
| 81990 |
| 9XN760 |
| MS392773V300 |
| SPZ750 |
| 2925B06H94 |
| 75-980 |
| A-3VX300 |
| 13VX300 |
| A3VX300 |
| 41006335 |
| 94120300 |
