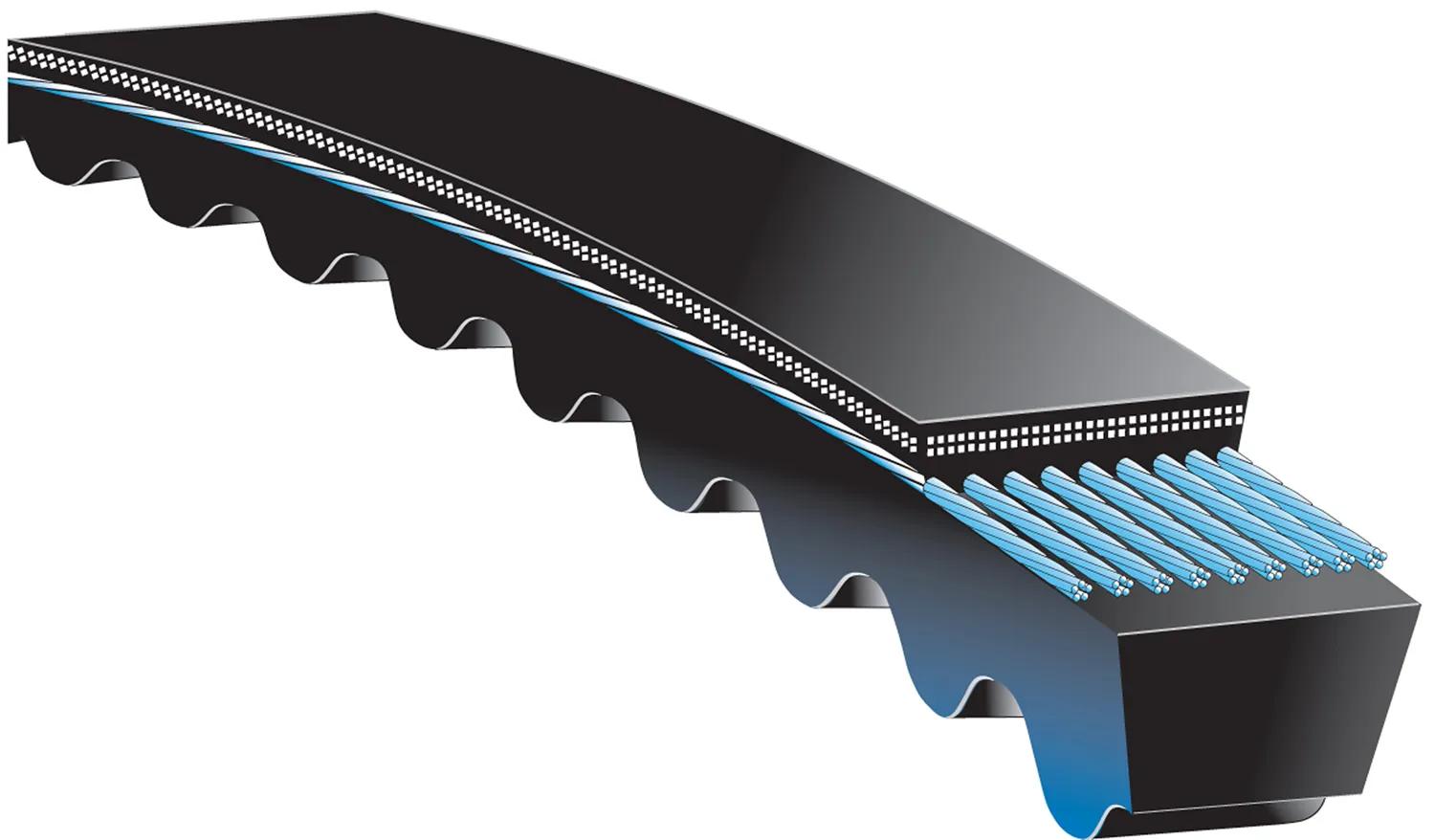

Narrow Section Molded Notch V-Belt, W: 3/8 in
#GAT3VX335
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Notched |
| Length | 33.5 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | 3VX |
| Length Range | 30 to 34.99 in |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 170086 |
| 265154 |
| 2L382 |
| 360686 |
| 3VX335 |
| 4335 |
| 434997 |
| 46068 |
| 4642C96H81 |
| 506033032 |
| 506070520 |
| 7231 |
| 75273 |
| 75724 |
| 780797 |
| 78797 |
| 94900007851 |
| 9XN850 |
| H164970 |
| GYI3VX335 |
| 265-154 |
| 358 |
| 75-273 |
| 75-724 |
| SPZ850 |
| A-3VX335 |
| 13VX335 |
| A3VX335 |
| 41006338 |
| R3VX335 |
| 94120335 |
