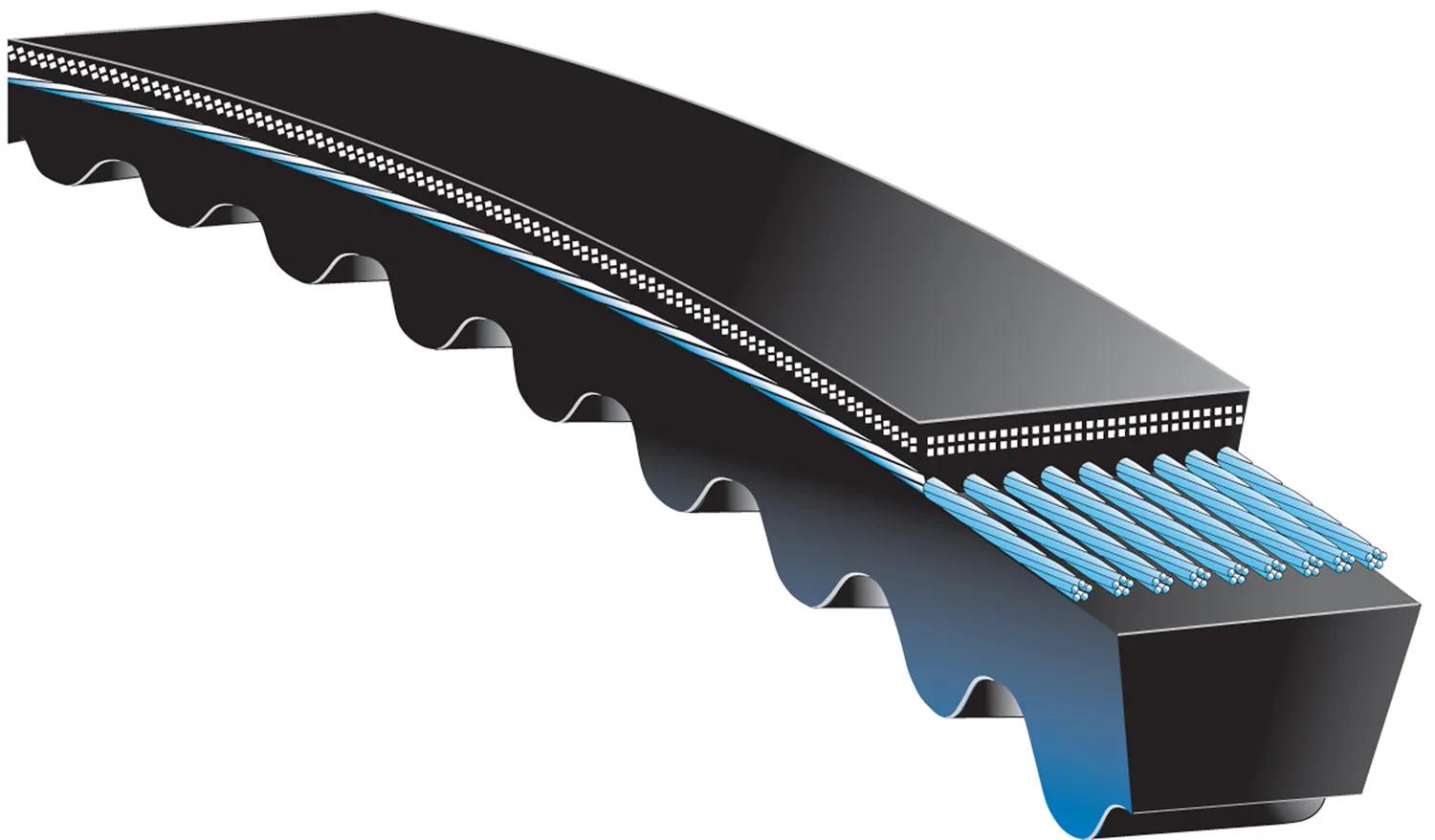

Narrow Section Molded Notch V-Belt, W: 3/8 in
#GAT3VX800
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Notched |
| Length | 80 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | 3VX |
| Length Range | 80 to 84.99 in |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 02012079 |
| 02012080 |
| 021361 |
| 141158 |
| 1A1158 |
| 1A981 |
| 2045B55H95 |
| 23695 |
| 2L397 |
| 3030005870494 |
| 3VX800 |
| 426415 |
| 475725R1 |
| 9XN2030 |
| A208940 |
| G1073591 |
| MS392773V800 |
| 4800 |
| 476198R91 |
| 63260B |
| 7Z277D802 |
| 857276 |
| A-3VX800 |
| 13VX800 |
| A3VX800 |
| 41006370 |
| R3VX800 |
| 94120800 |
