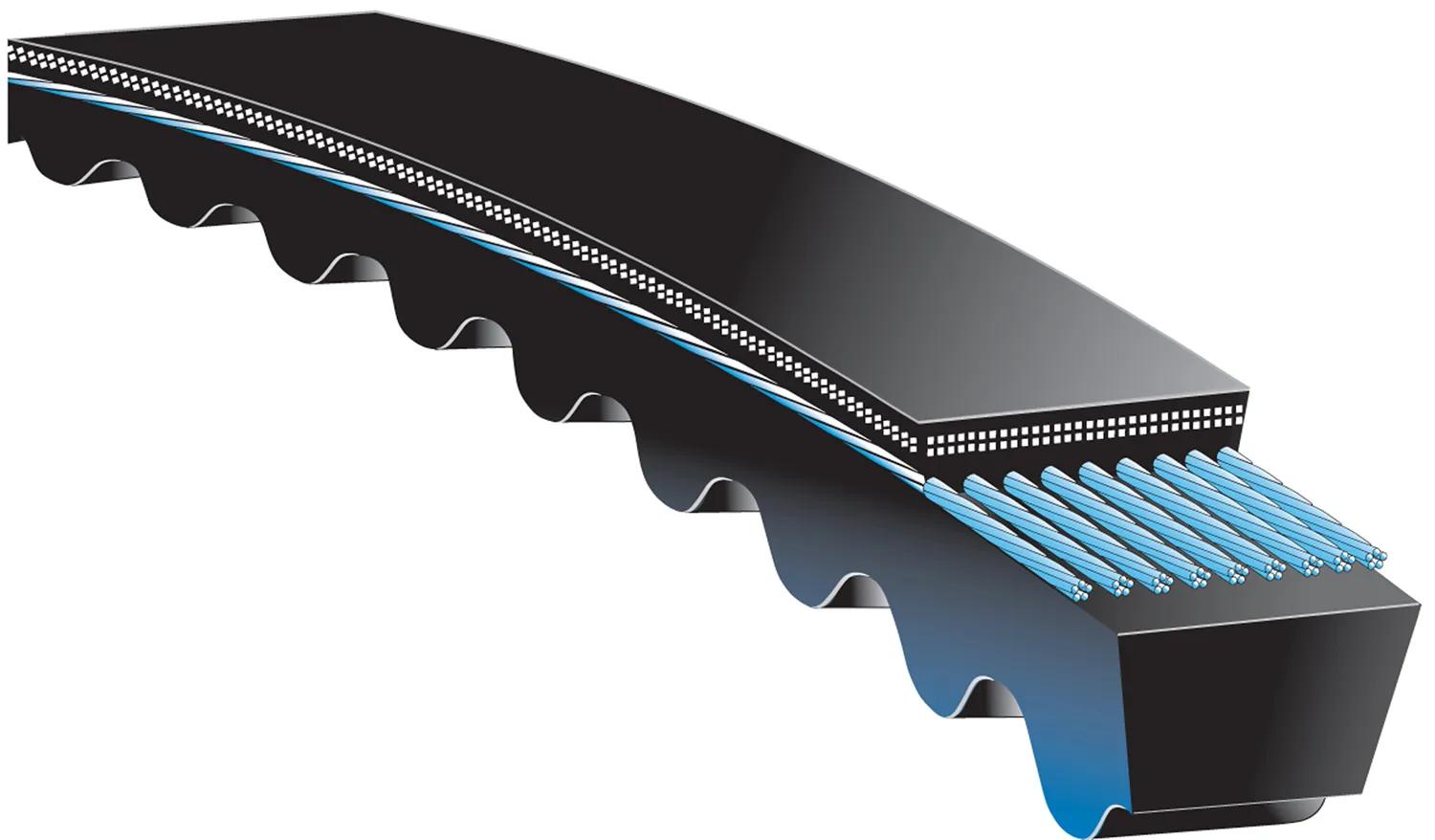

Narrow Section Molded Notch V-Belt, W: 5/8 in
#GAT5VX750
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Notched |
| Length | 75 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | 5VX |
| Length Range | 75 to 79.99 in |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 5/8 in (1.6 cm) |
Interchanges & Equivalent parts:
| 15XN1900 |
| 2L431 |
| 5750 |
| 5VX750 |
| 005460 |
| 128770375 |
| 128770575 |
| 3R9090 |
| 21R69 |
| 3R9089 |
| A-5VX750 |
| SPB1900 |
| 15VX750 |
| A5VX750 |
| 0499673 |
| 41006428 |
| R5VX750 |
| 94140750 |
