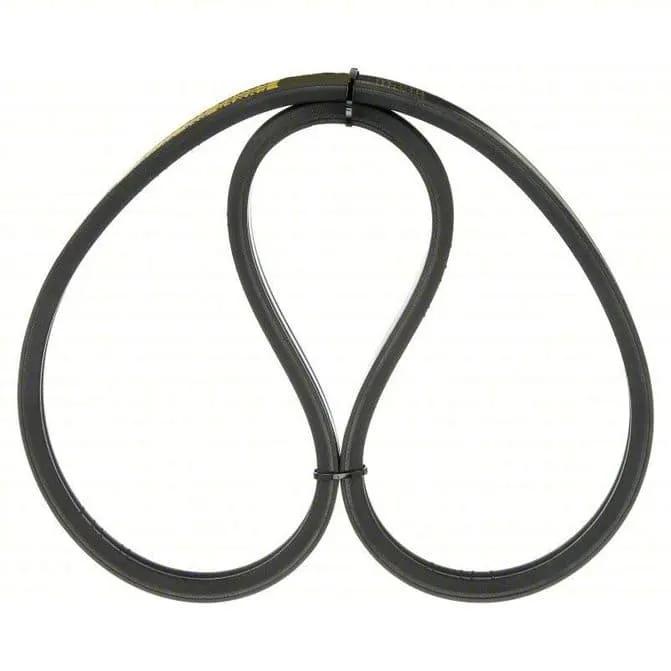

Narrow Section Wrapped Joined V-Belt, W: 3/4 in
#GAT2/3V600
Product Overview
The Powerband Construction Allows Multiple Belts To Function As A Single Unit, w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Features & Benefits
- Recommended For Multiple V-Belt Drives Exposed To Pulsating Or Heavy Shock Loads Which Can Make Belts Whip, Turn Over Or Jump Off The Drive.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Concave Sidewalls Provide Proper Cord Support & Full Contact w/ The Sheave-Groove For Equal Loading & Uniform Wear.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending stress w/o Cord Deterioration.
- Meets RMA Oil & Heat Resistant Standards.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | 3/4 to 7/8 in (1.91 to 2.24 cm) |
| Construction | Wrapped |
| Length | 60 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 2 |
| Section | 3V |
| Length Range | 60 to 64.99 in |
| Type | Narrow Section Wrapped Joined V-Belt |
| Width | 3/4 in (1.91 cm) |
Interchanges & Equivalent parts:
| 100030 |
| 23V600 |
| R3V6002 |
| 7Z419D8 |
| A3V60002 |
| 2/3V600 |
| A-3V600/02 |
| 93852060 |
