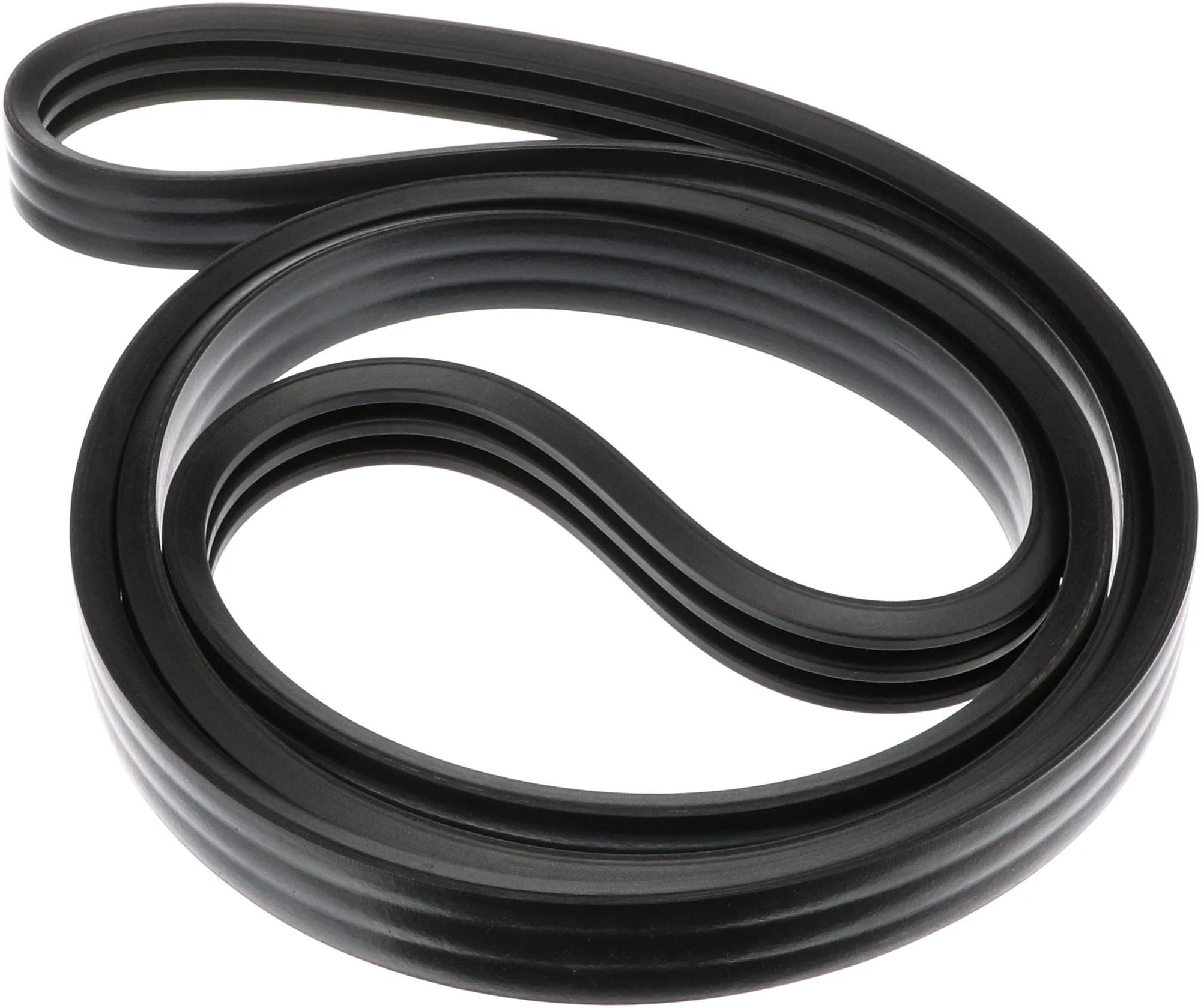

Narrow Section Wrapped V-Belt, W: 3-3/8 in
#GAT3/8V1900
Sommaire du produit
The Powerband Construction Allows Multiple Belts To Function As A Single Unit, w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Caractéristiques et avantages
- Meets RMA Oil & Heat Resistant Standards.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending stress w/o Cord Deterioration.
- Concave Sidewalls Provide Proper Cord Support & Full Contact w/ The Sheave-Groove For Equal Loading & Uniform Wear.
- Recommended For Multiple V-Belt Drives Exposed To Pulsating Or Heavy Shock Loads Which Can Make Belts Whip, Turn Over Or Jump Off The Drive.
- Meets RMA Static Conductivity Requirements.
Spécifications
| Belt Top Width | More than 3 in |
| Length | 190 in |
| # of Grooves | 3 |
| Section | 8V |
| Length Range | 190 to 199.99 in |
| Top Width Per Strand (in) | 63/64 in (2.49 cm) |
| Type | Narrow Section Wrapped V-Belt |
| Width | 3-3/8 in (8.59 cm) |
Interchanges et pièces équivalentes:
| 38V1900 |
| R8V19003 |
| A8V190003 |
| 3/8V1900 |
| 93873190 |
