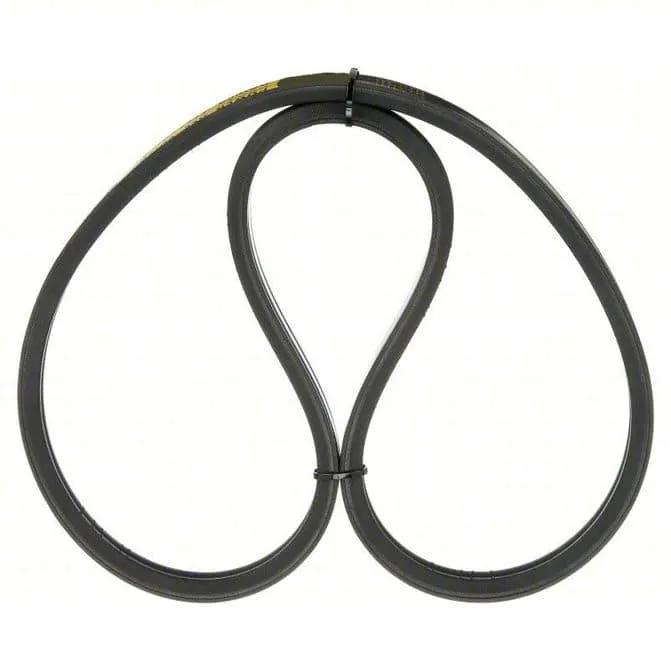

Narrow Section Wrapped V-Belt, W: 3/4 in
#GAT2/3V750
Product Overview
The Powerband Construction Allows Multiple Belts To Function As A Single Unit, w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending stress w/o Cord Deterioration.
- Concave Sidewalls Provide Proper Cord Support & Full Contact w/ The Sheave-Groove For Equal Loading & Uniform Wear.
- Recommended For Multiple V-Belt Drives Exposed To Pulsating Or Heavy Shock Loads Which Can Make Belts Whip, Turn Over Or Jump Off The Drive.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | 3/4 to 7/8 in (1.91 to 2.24 cm) |
| Length | 75 in |
| # of Grooves | 2 |
| Section | 3V |
| Length Range | 75 to 79.99 in |
| Type | Narrow Section Wrapped V-Belt |
| Width | 3/4 in (1.91 cm) |
Interchanges & Equivalent parts:
| R3V7502 |
| 23V750 |
| 7Z419D12 |
| A3V75002 |
| 2/3V750 |
| 93852075 |
