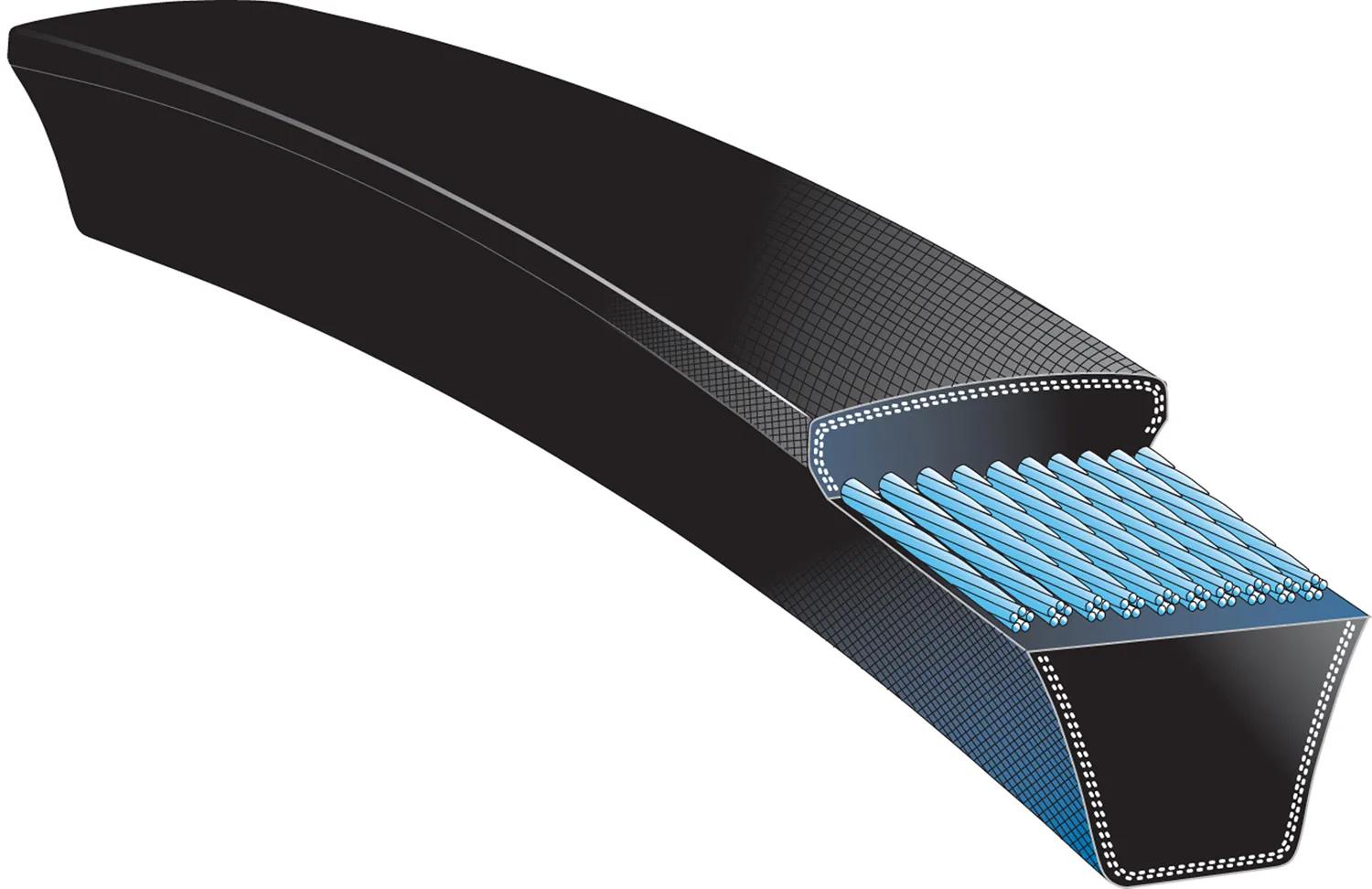

Narrow Section Wrapped V-Belt, W: 3/8 in
#GAT3V560
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Wrapped |
| Length | 56 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | 3V |
| Length Range | 55 to 59.99 in |
| Type | Narrow Section Wrapped V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 071059 |
| 090007009 |
| 12671 |
| 12T560 |
| 15951 |
| 20003442 |
| 2020B40H78 |
| 2045B55G42 |
| 2045B55H42 |
| 205356 |
| 23472 |
| 37560 |
| 425321 |
| 44154 |
| 5284 |
| 62032187 |
| 6353 |
| 780346 |
| 79560 |
| 87501020 |
| 9124C42H22 |
| GT3V560 |
| SGA000334608 |
| 13056 |
| 3V560 |
| 78343 |
| 500108601 |
| 780508 |
| 78346 |
| A-3V560 |
| A3V560 |
| CR400407 |
| 41006240 |
| R3V560 |
| 93320560 |
