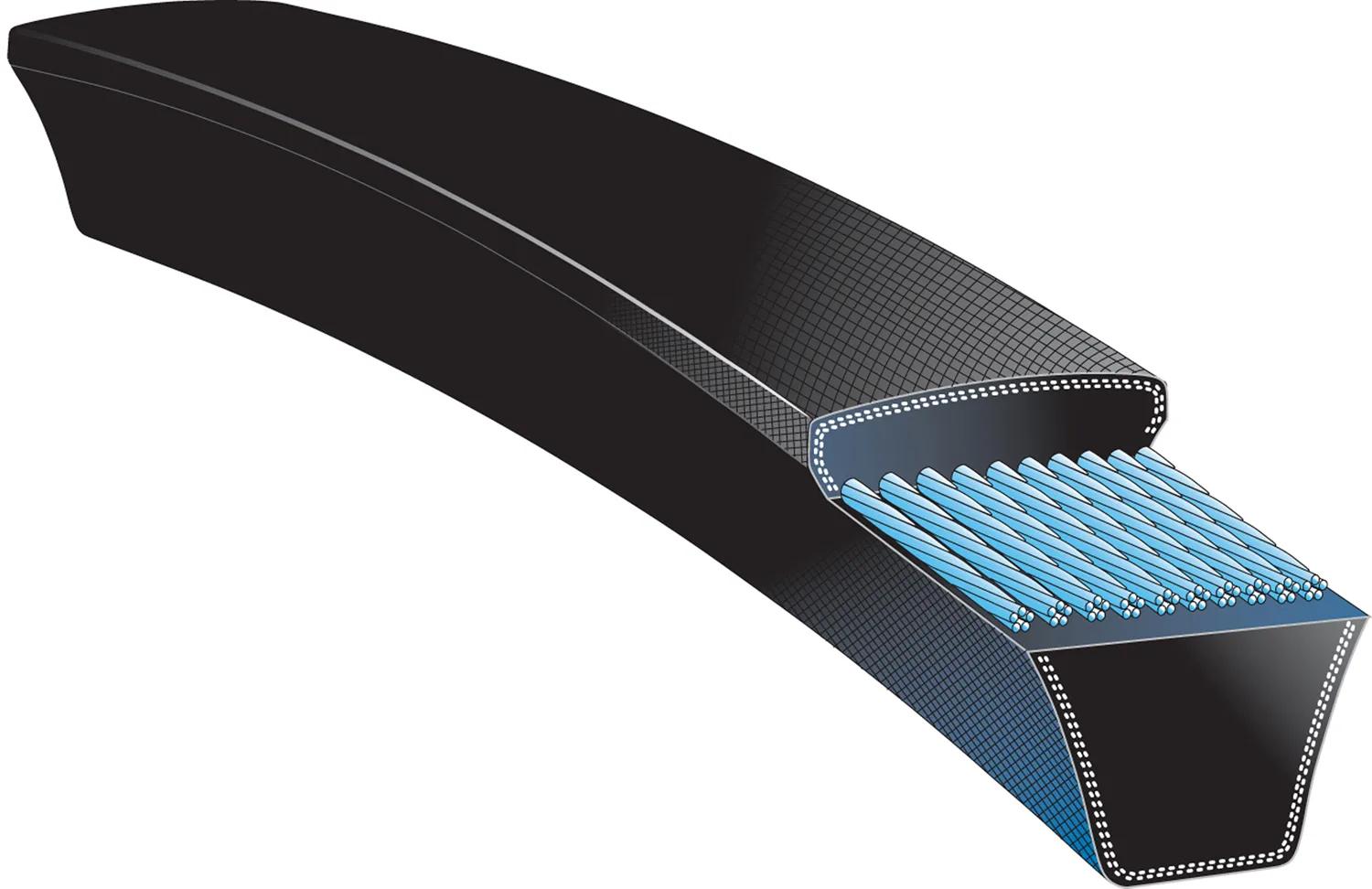

Narrow Section Wrapped V-Belt, W: 3/8 in
#GAT3V600
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Wrapped |
| Length | 60 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | 3V |
| Length Range | 60 to 64.99 in |
| Type | Narrow Section Wrapped V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 13060 |
| 16912 |
| 205360 |
| 308434 |
| 3V600 |
| 6359 |
| 7540297 |
| 79600 |
| 9540297 |
| GYI3V600 |
| A-3V600 |
| 21631 |
| A3V600 |
| 41006242 |
| R3V600 |
| 93320600 |
