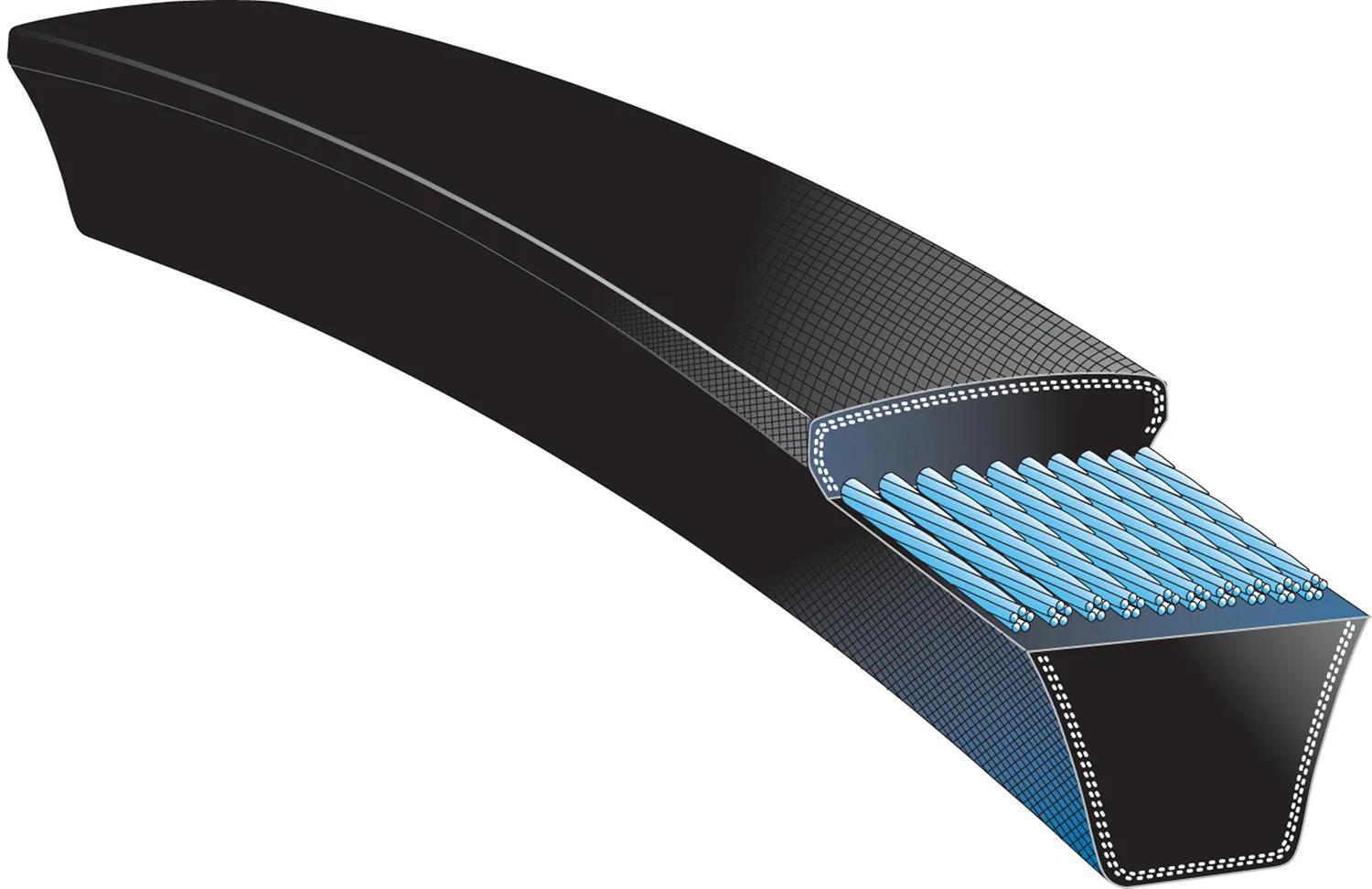

Narrow Section Wrapped V-Belt, W: 5/8 in
#GAT5V1180
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Largeur de la courroie supérieure | 5/8 à 3/4 po (1,6 à 1,91 cm) |
| Construction | Enveloppé |
| Longueur | 118 po |
| Matériel | Polyester |
| Encoché | Non |
| Nbre de rainures | 1 |
| Section | 5V |
| Length Range | 110 à 119.99 po |
| Type | Courroie en V enveloppée à section étroite |
| Width | 5/8 po (1,6 cm) |
Interchanges & Equivalent parts:
| 5V1180 |
| A-5V1180 |
| A5V1180 |
| 41006277 |
| R5V1180 |
| 93341180 |
