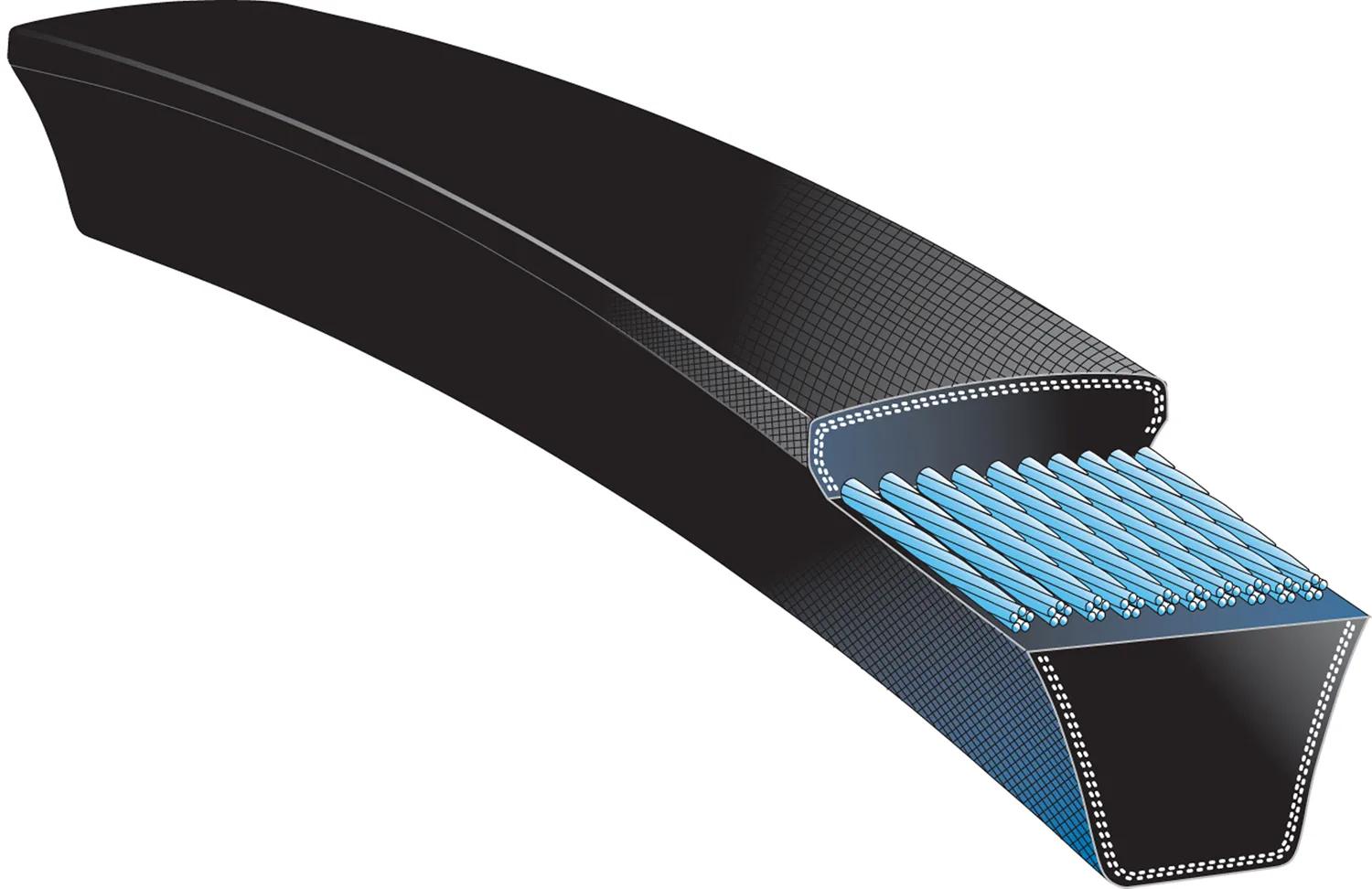

Narrow Section Wrapped V-Belt, W: 63/64 in
#GAT8V1180
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Construction | Wrapped |
| Length | 118 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | 8V |
| Length Range | 110 to 119.99 in |
| Type | Narrow Section Wrapped V-Belt |
| Width | 63/64 in (2.49 cm) |
Interchanges & Equivalent parts:
| 25N3000 |
| 8V1180 |
| A8V1180 |
| A-8V1180 |
| 18V1180 |
| 41006302 |
| R8V1180 |
| 93361180 |
