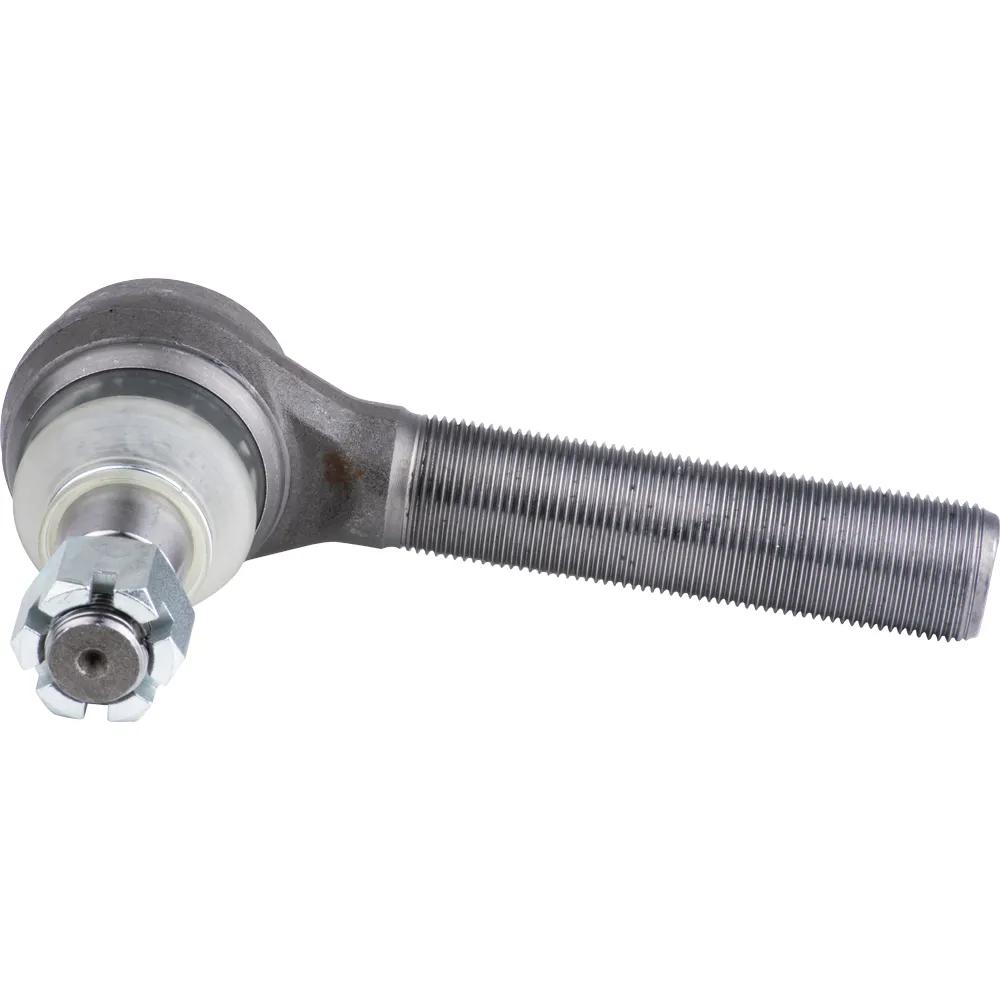

OEM Style - Tie Rod Assembly - 7.37 in. Length - Right Hand Thread External for Multi Applications
#TRWPHES2091R
Features & Benefits
- North American Made
- OEM Style
- Serviceable, pre-filled with high performance grease with a protective boot.
- Eliminates any contamination for extended service life.
- One-piece forged solid steel socket and hardened upper bearing for strength and durability.
- Induction hardened and polished full ball stud for precision steering.
- High strength steel lower seat for maintaining proper angulation.
- Self adjusting wear take-up pre-loaded heavy-duty spring, automatically reduces lash.
Specifications
| Large Taper Diameter | 1-1/4 in (3.18 cm) |
| OEM Replacement Part | Autocar 37024-5002 Brockway & Freightliner R230073 Chevrolet Truck & GMC Truck 12541320, 798203 Eaton & Kenworth 820627, 820695, 818471 Kenworth A3144V438, L24SV8101A21 MACK 10QH311P1, A3144V437 Navistar/IHC Truck 590584C91, 486355C91, 1668480C91 Peterbilt A3144V438, 820627, 820695, R230073 Rockwell/Meritor R230073, A3144V437, R230102 Volvo/White/GMC 37024-5002 Western Star R230073 White Truck 37024-5002, A3144V437 |
| Right or Left Hand Threads | RH |
| Small Taper Diameter | 1-5/64 in (2.74 cm) |
| Taper | 1.5/FT |
| Tie Rod End Length | 7.37 in. |
| Tie Rod End Thread Diameter | 1-1/4-12 in. |
| Type | Straight - 90 deg |
Interchanges & Equivalent parts:
| 310-434 |
| 310434 |
| 370245013 |
| 85112010 |
| E-4629 |
| E4629 |
| ES2091R |
| EUCE-4629 |
| EUCE4629 |
| HES2091R |
| R230073 |
| R230134 |
| 700043 |
| PHES3034R |
| PHES2091R |
| 2075447 |
| 462ES2091R |
| 15001001036 |
| HLC1071477 |
| L24SV8101C22P |
