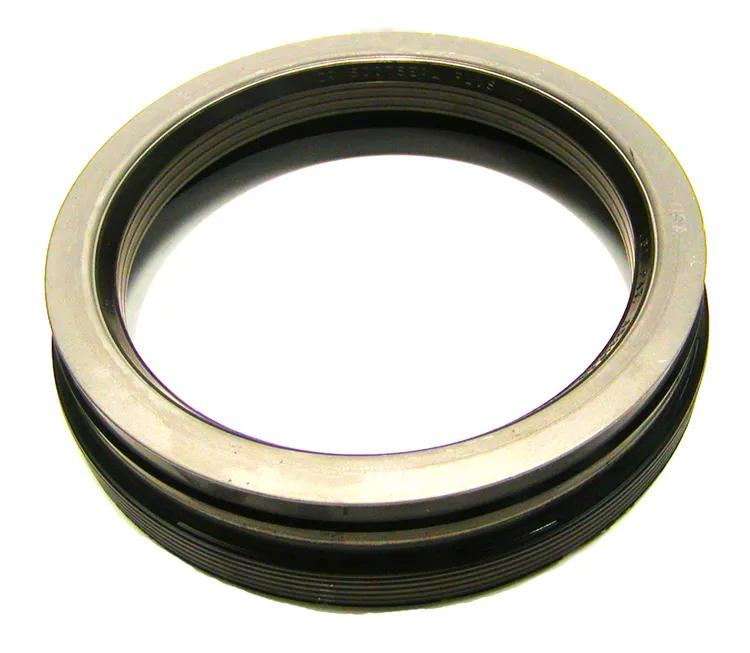

Oil Bath Wheel Hub Seals - Front-Steer Axle - H/D Truck PlusXL ScotSeal (CR)
#SKF40091
Product Overview
The ScotSeal PlusXL is a Rubber Unitized, One Piece Design.
Features & Benefits
Features & Benefits
SKF40091 - Features Documents - A
SKF40091 - Features Documents - B
SKF40091 - Features Documents - C
SKF40091 - Features Documents - D
SKF40091 - Features Documents - E
SKF40091 - Features Documents - F
SKF40091 - Features Documents - G
SKF40091 - Features Documents - H
SKF40091 - Features Documents - I
- The ScotSeal Plus XL Consists of Four Sealing Lips: A Spring Loaded Primary Sealing Lip With Patented Waveseal Design That is Factory Pre-Lubed,
- a Radial and Axial Dirt Lip , Plus an Outer Bumper Lip That Acts as a Priliminary Dirt Excluder.
- ScotSeal PlusXL Requires No Special Installation Tools and Maintains a Rubber to Metal Contact Between the Seal O.D. and the Hub Bore Surface,
- as Well as a Rubber to Metal Contact Between the Packing I.D. and Spindle or Axle.
- The New High Temperature, Synthetic Lubricant Freindly Material of the ScotSeal PlusXL, Hydrogenated Nitrile Butadiene Rubber (HNBR), is an Excellent Choice for Frequent Braking Applications.
- HNBR Elastomeric Material Provides Heat Resistance up to 300 Degrees Farenheit and Broad Compatibility With Today's Synthetic Lubrication Fluids.
- The Unsurpassed Exclusion Properties Allow the ScotSeal PlusXL to Perform in Very Harsh Conditions.
- Worn Hubs and Spindles Are Not a Problem for the ScotSeal PlusXL.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Contents | (1) Oil Bath Seal |
| Inside Diameter | 4 in (10.16 cm) |
| Type | PlusXL |
| VMRS Code | 18001004 |
Interchanges & Equivalent parts:
| 370066 |
| 370066A |
| 6357933 |
| 3830101 |
| CR40091 |
| 40091 |
| 157171 |
| 370036A |
| 370349A |
| 380036A |
| 383-0101 |
| 40086 |
| 40088 |
