2 POINTS
Oil Bath Wheel Hub Seals - Front-Steer Axle - H/D Truck PlusXL Scotseal (CR)
#SKF55122
Product Overview

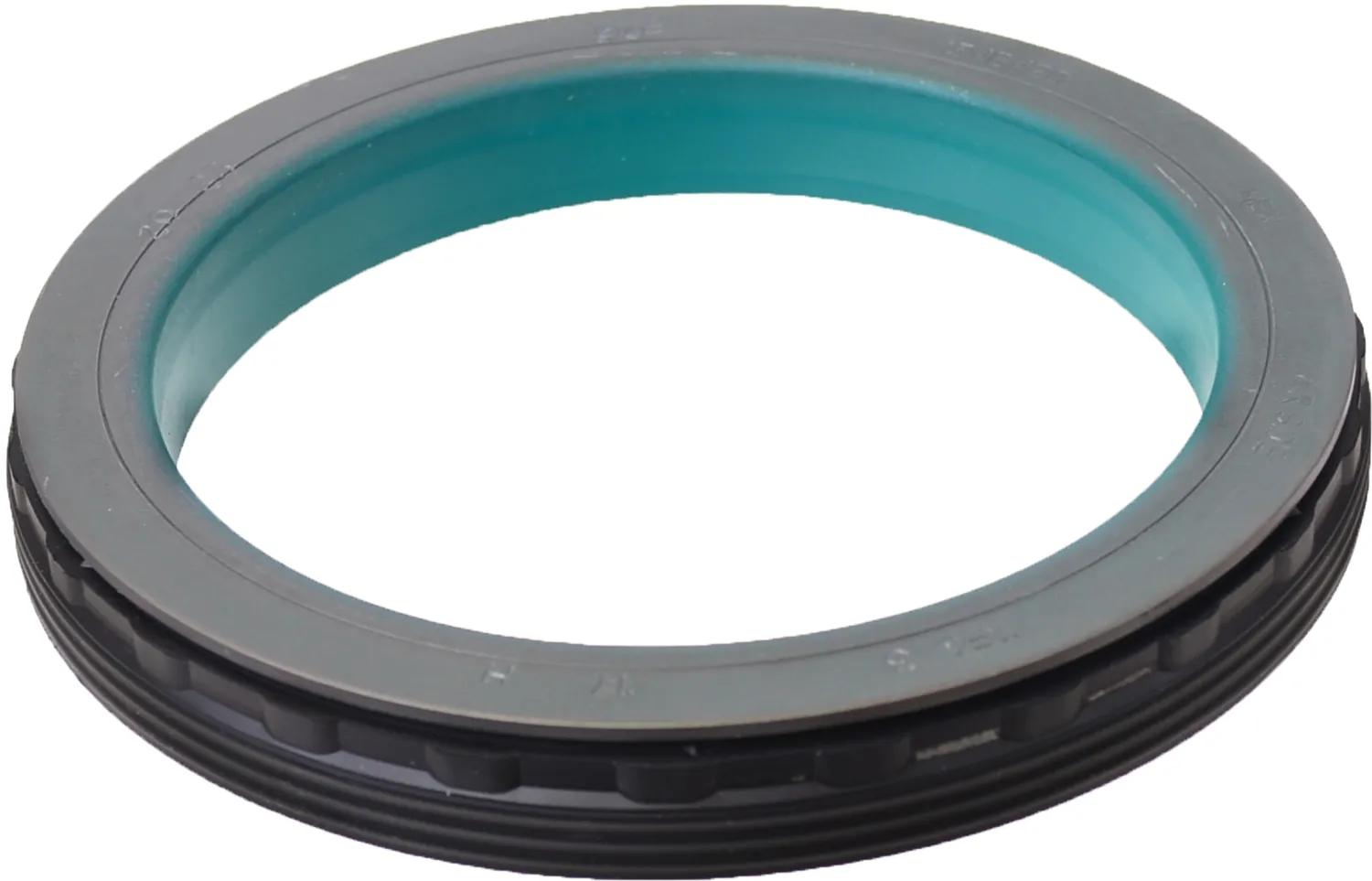

The ScotSeal PlusXL is a Rubber Unitized, One Piece Design.
Features & Benefits
Features & Benefits
SKF55122 - Features Documents - A
SKF55122 - Features Documents - B
SKF55122 - Features Documents - C
SKF55122 - Features Documents - D
SKF55122 - Features Documents - E
SKF55122 - Features Documents - F
SKF55122 - Features Documents - G
- The ScotSeal Plus XL Consists of Four Sealing Lips: A Spring Loaded Primary Sealing Lip With Patented Waveseal Design That is Factory Pre-Lubed,
- a Radial and Axial Dirt Lip , Plus an Outer Bumper Lip That Acts as a Priliminary Dirt Excluder.
- ScotSeal PlusXL Requires No Special Installation Tools and Maintains a Rubber to Metal Contact Between the Seal O.D. and the Hub Bore Surface,
- as Well as a Rubber to Metal Contact Between the Packing I.D. and Spindle or Axle.
- The New High Temperature, Synthetic Lubricant Freindly Material of the ScotSeal PlusXL, Hydrogenated Nitrile Butadiene Rubber (HNBR), is an Excellent Choice for Frequent Braking Applications.
- HNBR Elastomeric Material Provides Heat Resistance up to 300 Degrees Farenheit and Broad Compatibility With Today's Synthetic Lubrication Fluids.
- The Unsurpassed Exclusion Properties Allow the ScotSeal PlusXL to Perform in Very Harsh Conditions.
- Worn Hubs and Spindles Are Not a Problem for the ScotSeal PlusXL.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Contents | (1) Oil Bath Seal |
| Front Wheel Seal Width | 0.5910 in. |
| Packaging | Boxed |
| Seal I.D. | 5.5120 in. |
| Seal O.D. | 6.707 in. |
| Type | PlusXL |
| VMRS Code | 18002005 |
