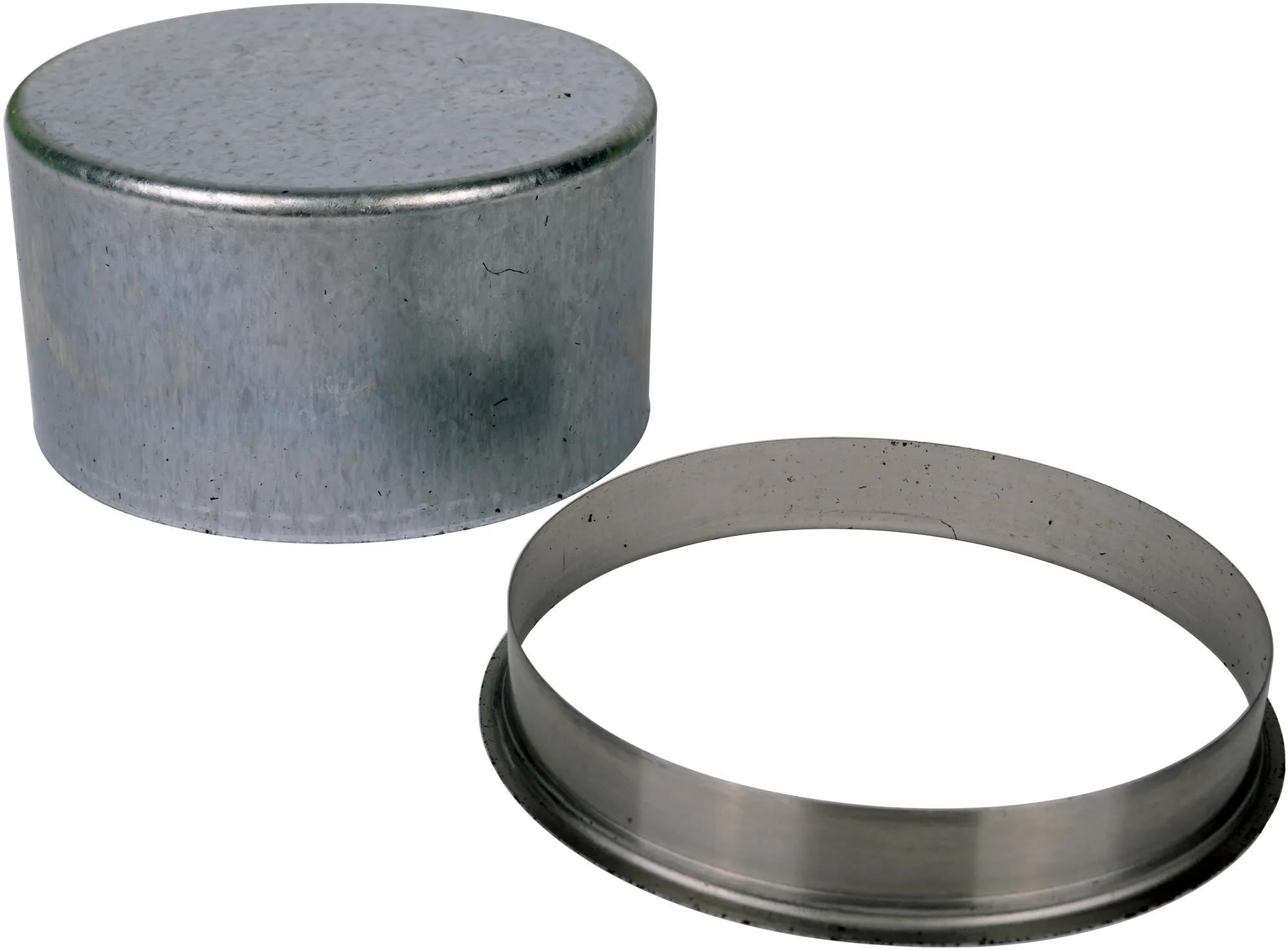

Oil & Grease Seal Speedi Sleeves - Metric & Inch - Std Speedi-Sleeve Kits
#SKF99364
Product Overview
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Features & Benefits
Features & Benefits
SKF99364 - Features Documents - A
SKF99364 - Features Documents - B
SKF99364 - Features Documents - C
SKF99364 - Features Documents - D
SKF99364 - Features Documents - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Fits Shaft Diameter | 3.740 in. To 3.746 in. / 94.99 mm To 95.15 mm |
| Flange Diameter | 4-1/32 in (10.24 cm) |
| Thickness | 15/32 in (1.19 cm) |
Interchanges & Equivalent parts:
490010C1, A338, 965899364, CHR99364, 993641, 99364CHR, N99364, NN99364, KWK99364, ZAR99364, 12328969, 99364, 99364, 99364, 99364, CR99364, 145899364, 99364, 8E91576, 12328969, 145899364, CR99364, CHR99364, 490010C1, KWK99364, N99364, NN99364, ZAR99364, A338, 993641, 965899364, 99364CHR, 99364, 8E91576, 99364, 99364, 99364, 99364
