1 POINT

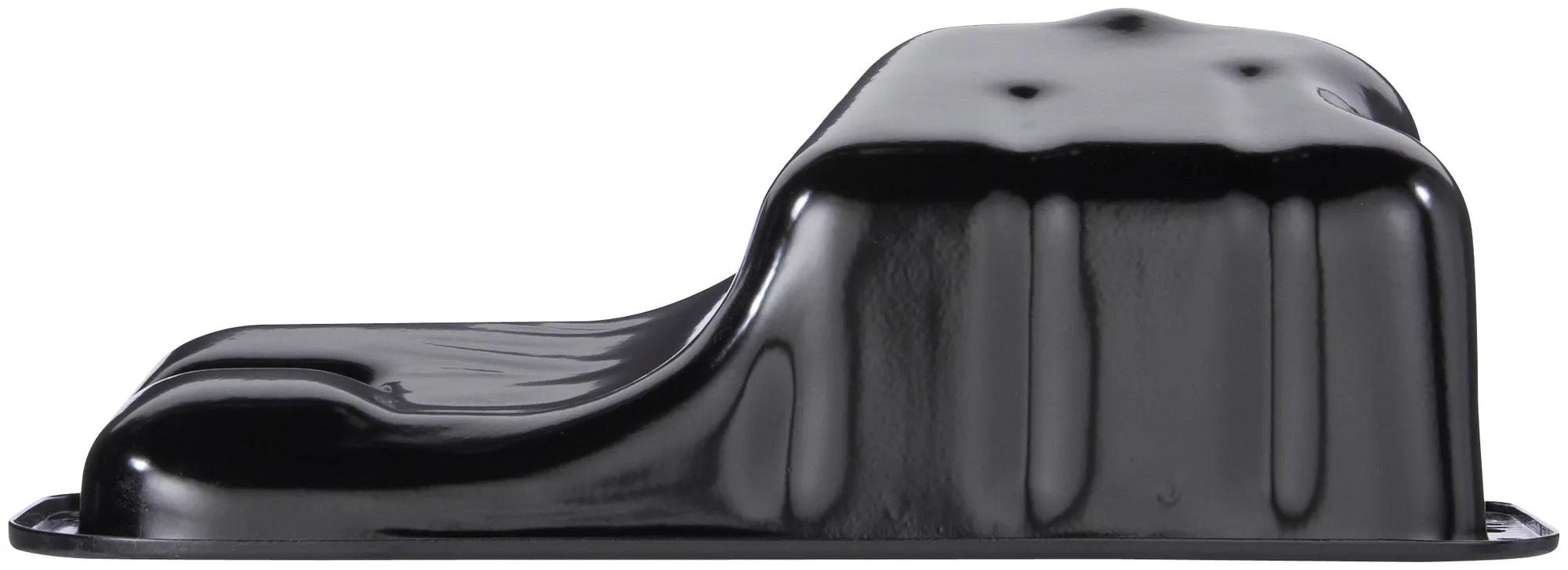

Oil Pan - New
#SPEGMP37A
Product Overview
Innovative Engineering, Manufacturing Technology And Quality Control Ensure That Spectra Premium Oil Pans Meet Or Exceed The Performance Of The Original Equipment They Replace.
Features & Benefits
Features & Benefits
SPEGMP37A - Features Documents - A
SPEGMP37A - Features Documents - B
SPEGMP37A - Features Documents - C
- Unit Is Designed To OE Fit, Form And Function Requirements Accomplished By Leveraging Our OE Expertise
- Durable Powder Coating Applied To Exterior Of Oil Pan For A Long Lasting Rust Free Unit
- Washed And Then Sealed With An Anti-Corrosive Spray On The Interior For A Rust Free Unit At Installation
- Fit Tested On The Very Same Vehicle Application For Which It Was Developed Verifying First-Hand That The Design Fits Properly And Can Be Easily Installed
- Engineered To Stringent Tolerances Based On Our Canadian Engineers In-Depth Knowledge Of The OE Part It is Designed To Replace
- Road Tested To Ensure Real World Performance And To Verify That Each Design Meets Our High Standards For Quality
- Coating Salt Spray Tested For Over 200 Hours To Insure Durability
- Addition Of Threaded Stainless Steel Inserts In The Aluminum Pans To Increases Product Lifespan By Providing Increased Durability While Maintaining The OE Drain Plug Specifications
Specifications
Baffled | Yes |
Capacity | 3.75 QT |
Color | Black |
Contents | 1 Engine Oil Pan |
Crank Shaft Wiper Included | No |
Depth (Inches) | 5 15/16 in. |
Depth (mm) | 150 mm |
Dipstick Port | No |
Drain Plug Included | Yes |
Engine Oil Cooler Return Fitting | No |
Finish | Black Powder Coating |
Gasket Or Seal Included | No |
Kick Out Type Pan | No |
Length | 16 3/4 in. |
Length (in.) | 16 3/4 in. |
Length (Inches) | 16 3/4 in. |
Length (mm) | 425 mm |
Material | Cold Rolled Steel (EDDQ) |
Maximum Width | 8 5/8 in. |
Mount Hole Quantity | 18 |
New or Remanufactured | New |
Oil Drain Plug Thread Size | M14 x 1.5 |
Oil Pan Capacity | 3.75 QT |
Oil Level Sensor Port | No |
Oil Pan Material | Cold Rolled Steel (EDDQ) |
Packaging | Box, Corrugated Or Solid |
Pickup Included | No |
Product Application | 00-98 Chevrolet Metro; 01 Chevrolet Metro; 97-96 Geo Metro; 99-96 Pontiac Firefly; 01-99 Suzuki Esteem; 98-96 Suzuki Esteem; 01-96 Suzuki Swift |
Sump Location | Front |
Sump Type | Wet |
Width (Inches) | 8 5/8 in. |
Width (mm) | 219 mm |
Windage Tray Included | No |
