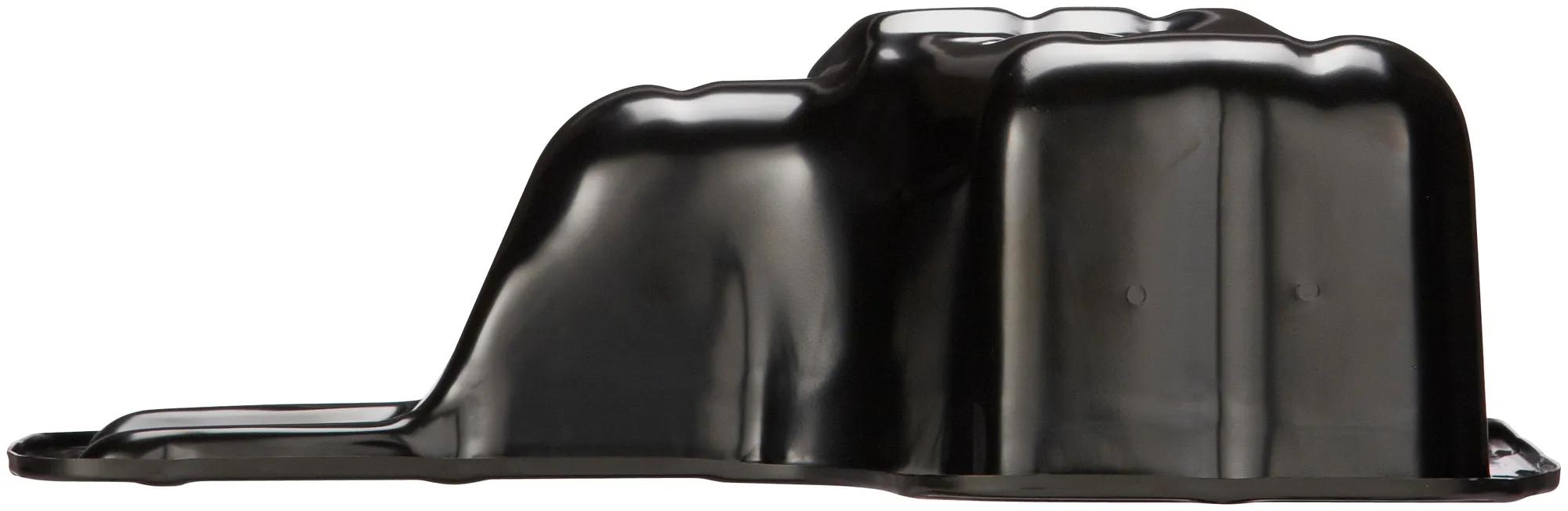

Oil Pan - New
#SPETOP10A
Product Overview
Innovative Engineering, Manufacturing Technology And Quality Control Ensure That Spectra Premium Oil Pans Meet Or Exceed The Performance Of The Original Equipment They Replace.
Features & Benefits
Features & Benefits
SPETOP10A - Features Documents - A
SPETOP10A - Features Documents - B
SPETOP10A - Features Documents - C
- Unit Is Designed To OE Fit, Form And Function Requirements Accomplished By Leveraging Our OE Expertise
- Durable Powder Coating Applied To Exterior Of Oil Pan For A Long Lasting Rust Free Unit
- Washed And Then Sealed With An Anti-Corrosive Spray On The Interior For A Rust Free Unit At Installation
- Fit Tested On The Very Same Vehicle Application For Which It Was Developed Verifying First-Hand That The Design Fits Properly And Can Be Easily Installed
- Engineered To Stringent Tolerances Based On Our Canadian Engineers In-Depth Knowledge Of The OE Part It is Designed To Replace
- Road Tested To Ensure Real World Performance And To Verify That Each Design Meets Our High Standards For Quality
- Coating Salt Spray Tested For Over 200 Hours To Insure Durability
- Addition Of Threaded Stainless Steel Inserts In The Aluminum Pans To Increases Product Lifespan By Providing Increased Durability While Maintaining The OE Drain Plug Specifications
Specifications
Baffled | Yes |
Capacity | 4.4 QT |
Color | Black |
Contents | 1 Engine Oil Pan |
Crank Shaft Wiper Included | No |
Depth (Inches) | 5 1/4 in. |
Depth (mm) | 132 mm |
Dipstick Port | No |
Drain Plug Included | Yes |
Engine Oil Cooler Return Fitting | No |
Finish | Black Powder Coating |
Gasket Or Seal Included | No |
Kick Out Type Pan | No |
Length | 17 in. |
Length (in.) | 17 in. |
Length (Inches) | 17 in. |
Length (mm) | 432 mm |
Material | Cold Rolled Steel (EDDQ) |
Maximum Width | 11 1/4 in. |
Mount Hole Quantity | 16 |
Oil Drain Plug Thread Size | M12 x 1.5 |
Oil Pan Capacity | 4.4 QT |
Oil Level Sensor Port | No |
Oil Pan Material | Cold Rolled Steel (EDDQ) |
Packaging | Box, Corrugated Or Solid |
Pickup Included | No |
Product Application | 02-98 Chevrolet Prizm; 06-03 Pontiac Vibe; 08-07 Pontiac Vibe; 05-00 Toyota Celica; 06-05 Toyota Corolla; 04-98 Toyota Corolla; 08-07 Toyota Corolla; 06-03 Toyota Matrix; 08-07 Toyota Matrix; 05-00 Toyota MR2 Spyder |
Sump Location | Front |
Sump Type | Wet |
Width (Inches) | 11 1/4 in. |
Width (mm) | 286 mm |
Windage Tray Included | No |
New or Remanufactured | New |
Interchanges & Equivalent parts:
58532, 1010861, 103217, 103366, 121010D010, 501207, 94858984, KTOP10A, TOP10A, 264314, 1210122022, 1210122024, 1210122023, 1210122021, 121010D020, SPITOP10A, 94859520, 94859568, 58532, 501207, 264314, KTOP10A, TOP10A, 103217, 1010861, 103366, 94858984, 121010D010, 94859520, 94859568, 1210122022, 1210122024, 1210122023, 1210122021, 121010D020, SPITOP10A, TY149596
