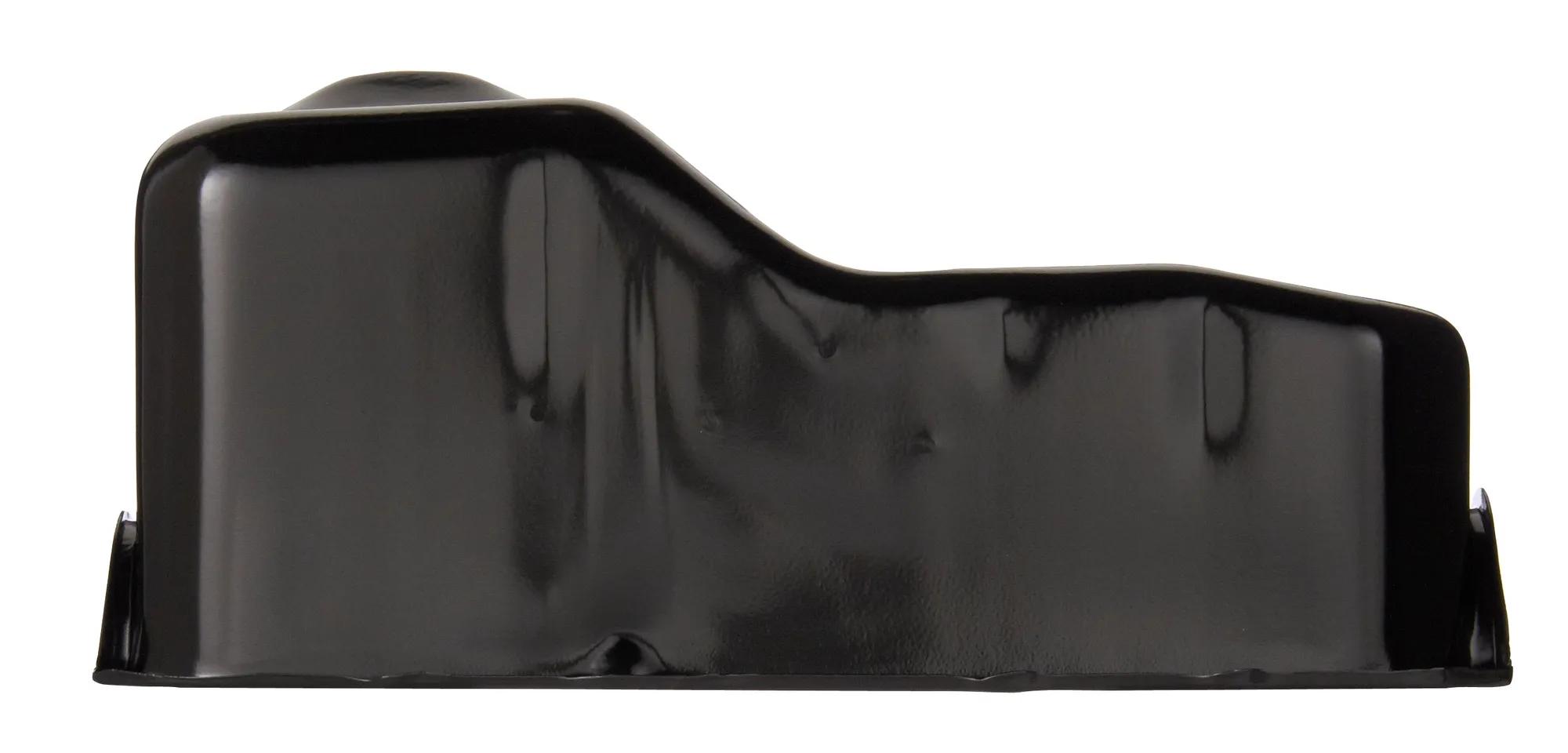

Oil Pan - New
#SPEGMP10A
Product Overview
Innovative Engineering, Manufacturing Technology And Quality Control Ensure That Spectra Premium Oil Pans Meet Or Exceed The Performance Of The Original Equipment They Replace.
Features & Benefits
Features & Benefits
SPEGMP10A - Features Documents - A
SPEGMP10A - Features Documents - B
SPEGMP10A - Features Documents - C
- Unit Is Designed To OE Fit, Form And Function Requirements Accomplished By Leveraging Our OE Expertise
- Durable Powder Coating Applied To Exterior Of Oil Pan For A Long Lasting Rust Free Unit
- Washed And Then Sealed With An Anti-Corrosive Spray On The Interior For A Rust Free Unit At Installation
- Fit Tested On The Very Same Vehicle Application For Which It Was Developed Verifying First-Hand That The Design Fits Properly And Can Be Easily Installed
- Engineered To Stringent Tolerances Based On Our Canadian Engineers In-Depth Knowledge Of The OE Part It is Designed To Replace
- Road Tested To Ensure Real World Performance And To Verify That Each Design Meets Our High Standards For Quality
- Coating Salt Spray Tested For Over 200 Hours To Insure Durability
- Addition Of Threaded Stainless Steel Inserts In The Aluminum Pans To Increases Product Lifespan By Providing Increased Durability While Maintaining The OE Drain Plug Specifications
Specifications
| Baffled | yes |
| Capacity | 4 QT |
| Color | Black |
| Contents | 1 Engine Oil Pan |
| Crank Shaft Wiper Included | No |
| Depth (Inches) | 7 7/8 in. |
| Depth (mm) | 198 mm |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Finish | Black Powder Coating |
| Gasket Or Seal Included | No |
| Kick Out Type Pan | No |
| Length | 17-3/4 in (45.09 cm) |
| Length (in.) | 17 3/4 in. |
| Length (Inches) | 17 3/4 in. |
| Length (mm) | 451 mm |
| Material | Cold Rolled Steel (EDDQ) |
| Maximum Width | 9 1/4 in. |
| Mount Hole Quantity | 12 |
| New or Remanufactured | New |
| Oil Drain Plug Thread Size | M14 x 1.5 |
| Oil Level Sensor Port | No |
| Oil Pan Capacity | 4 QT |
| Oil Pan Material | Cold Rolled Steel (EDDQ) |
| Packaging | Box, Corrugated Or Solid |
| Pickup Included | No |
| Product Application | 89-87 Chevrolet Camaro; 92-90 Chevrolet Camaro; 93-87 Chevrolet S10; 89-87 Chevrolet S10 Blazer; 90-87 GMC S15; 89-87 GMC S15 Jimmy; 93-91 GMC Sonoma; 89-87 Pontiac Firebird; 92-90 Pontiac Firebird |
| Sump Type | Wet |
| Sump Location | Rear |
| Width (Inches) | 9 1/4 in. |
| Width (mm) | 235 mm |
| Windage Tray Included | No |
Interchanges & Equivalent parts:
| 10078999 |
| 595 |
| 103091 |
| 501097 |
| KGMP10A |
| RGMP10A |
| GMP10A |
| 264122 |
| SPIGMP10A |
| 3310579 |
| IGMP12A |
| DOR264122 |
| 264-122 |
| IGMP10A |
