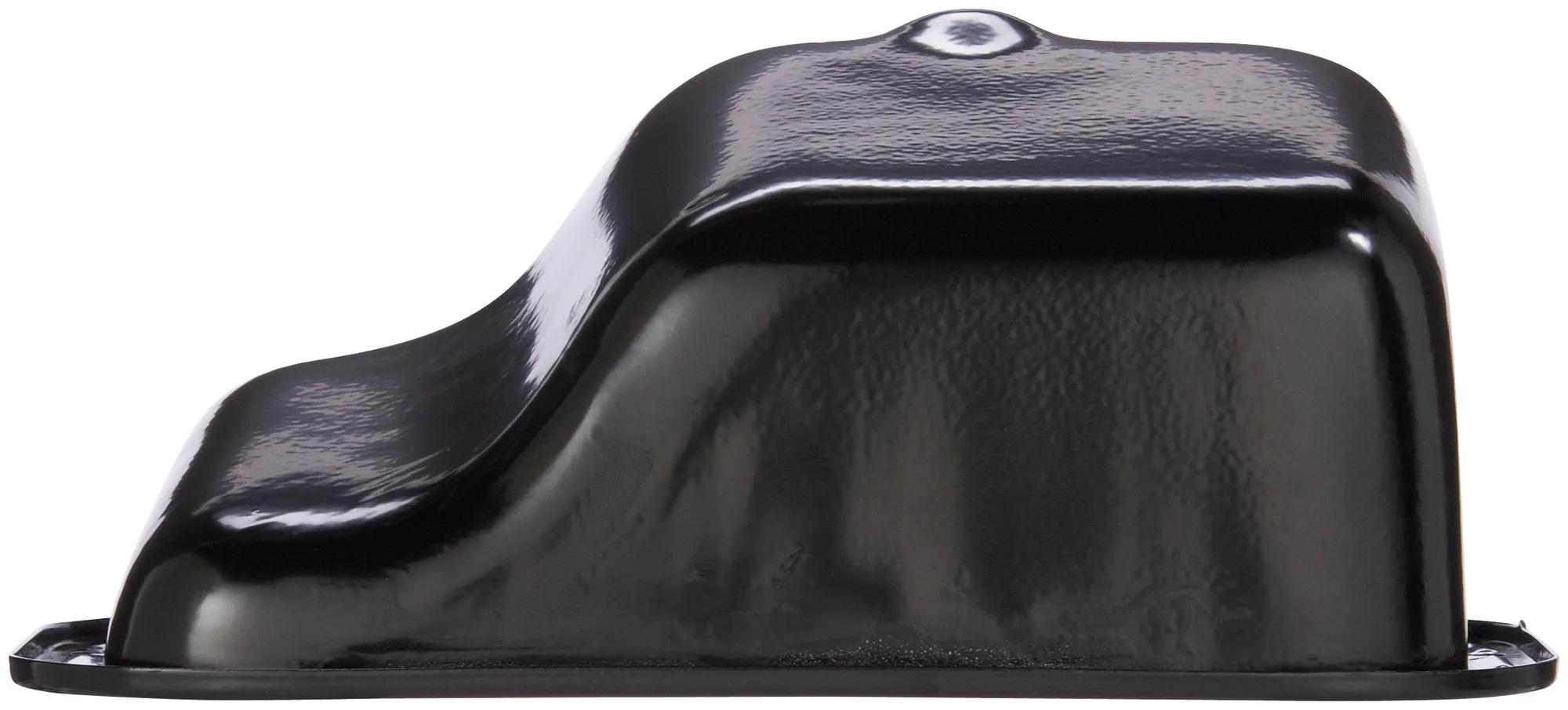

Oil Pan - New
#SPEGMP14A
Product Overview
Innovative Engineering, Manufacturing Technology And Quality Control Ensure That Spectra Premium Oil Pans Meet Or Exceed The Performance Of The Original Equipment They Replace.
Features & Benefits
Features & Benefits
SPEGMP14A - Features Documents - A
SPEGMP14A - Features Documents - B
SPEGMP14A - Features Documents - C
- Unit Is Designed To OE Fit, Form And Function Requirements Accomplished By Leveraging Our OE Expertise
- Durable Powder Coating Applied To Exterior Of Oil Pan For A Long Lasting Rust Free Unit
- Washed And Then Sealed With An Anti-Corrosive Spray On The Interior For A Rust Free Unit At Installation
- Fit Tested On The Very Same Vehicle Application For Which It Was Developed Verifying First-Hand That The Design Fits Properly And Can Be Easily Installed
- Engineered To Stringent Tolerances Based On Our Canadian Engineers In-Depth Knowledge Of The OE Part It is Designed To Replace
- Road Tested To Ensure Real World Performance And To Verify That Each Design Meets Our High Standards For Quality
- Coating Salt Spray Tested For Over 200 Hours To Insure Durability
- Addition Of Threaded Stainless Steel Inserts In The Aluminum Pans To Increases Product Lifespan By Providing Increased Durability While Maintaining The OE Drain Plug Specifications
Specifications
| Baffled | Yes |
| Capacity | 3.7 QT |
| Color | Black |
| Contents | 1 Engine Oil Pan |
| Crank Shaft Wiper Included | No |
| Depth (Inches) | 5 15/16 in. |
| Depth (mm) | 150 mm |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Finish | Black Powder Coating |
| Gasket Or Seal Included | No |
| Kick Out Type Pan | No |
| Length | 13-1/2 in (34.29 cm) |
| Length (in.) | 13 1/2 in. |
| Length (Inches) | 13 1/2 in. |
| Length (mm) | 343 mm |
| Material | Cold Rolled Steel (EDDQ) |
| Maximum Width | 8 5/8 in. |
| Mount Hole Quantity | 16 |
| New or Remanufactured | New |
| Oil Drain Plug Thread Size | M14 x 1.5 |
| Oil Level Sensor Port | No |
| Oil Pan Capacity | 3.7 QT |
| Oil Pan Material | Cold Rolled Steel (EDDQ) |
| Packaging | Box, Corrugated Or Solid |
| Pickup Included | No |
| Product Application | 92-85 Chevrolet Sprint; 95-92 Geo Metro; 91-89 Geo Metro; 95-94 Pontiac Firefly; 91-85 Pontiac Firefly; 88-85 Suzuki Forsa; 93-92 Suzuki Swift |
| Sump Type | Wet |
| Sump Location | Front |
| Width (Inches) | 8 5/8 in. |
| Width (mm) | 219 mm |
| Windage Tray Included | No |
Interchanges & Equivalent parts:
| 103271 |
| 501101 |
| 96060011 |
| GMP14A |
| 264159 |
| SPIGMP14A |
| 58090 |
| 58189 |
| 264-159 |
