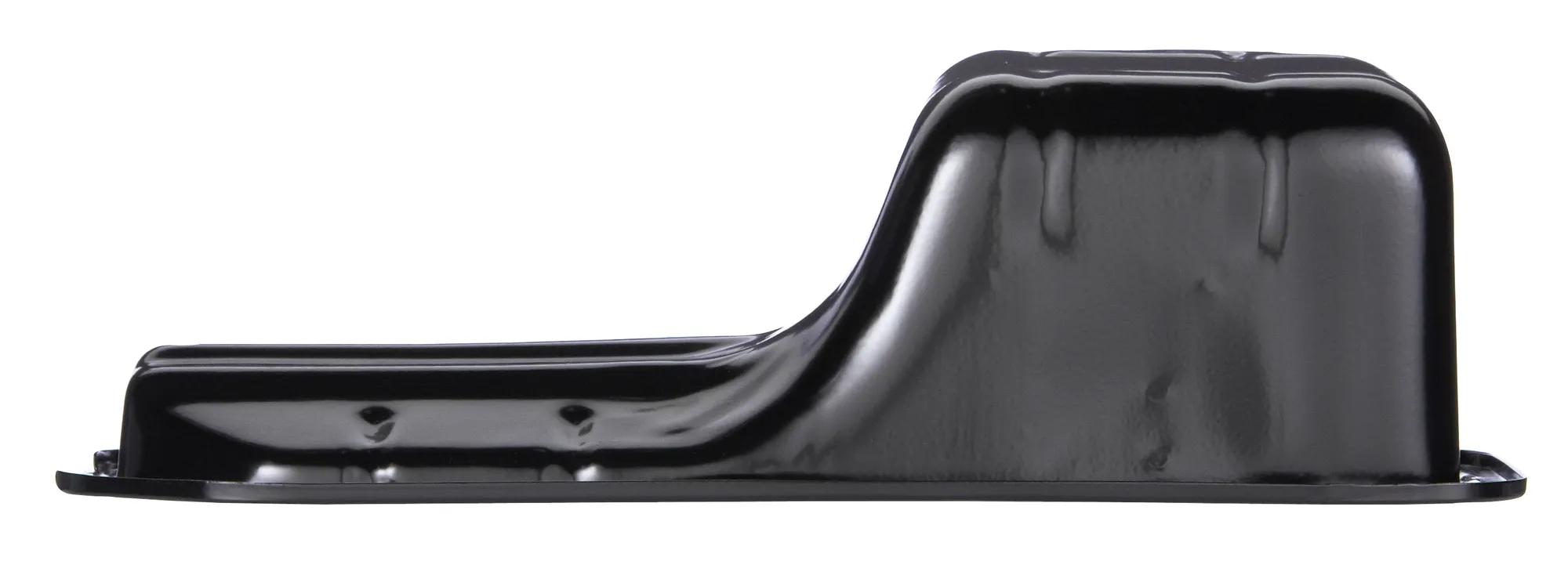

Oil Pan - New
#SPEHYP02A
Product Overview
Innovative Engineering, Manufacturing Technology And Quality Control Ensure That Spectra Premium Oil Pans Meet Or Exceed The Performance Of The Original Equipment They Replace.
Features & Benefits
Features & Benefits
SPEHYP02A - Features Documents - A
SPEHYP02A - Features Documents - B
SPEHYP02A - Features Documents - C
- Unit Is Designed To OE Fit, Form And Function Requirements Accomplished By Leveraging Our OE Expertise
- Durable Powder Coating Applied To Exterior Of Oil Pan For A Long Lasting Rust Free Unit
- Washed And Then Sealed With An Anti-Corrosive Spray On The Interior For A Rust Free Unit At Installation
- Fit Tested On The Very Same Vehicle Application For Which It Was Developed Verifying First-Hand That The Design Fits Properly And Can Be Easily Installed
- Engineered To Stringent Tolerances Based On Our Canadian Engineers In-Depth Knowledge Of The OE Part It is Designed To Replace
- Road Tested To Ensure Real World Performance And To Verify That Each Design Meets Our High Standards For Quality
- Coating Salt Spray Tested For Over 200 Hours To Insure Durability
- Addition Of Threaded Stainless Steel Inserts In The Aluminum Pans To Increases Product Lifespan By Providing Increased Durability While Maintaining The OE Drain Plug Specifications
Specifications
| Baffled | Yes |
| Capacity | 4.23 QT |
| Color | Black |
| Contents | 1 Engine Oil Pan |
| Crank Shaft Wiper Included | No |
| Depth (Inches) | 5 1/2 in. |
| Depth (mm) | 140 mm |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Finish | Black Powder Coating |
| Gasket Or Seal Included | No |
| Kick Out Type Pan | No |
| Length | 18-1/8 in (46.05 cm) |
| Length (in.) | 18 1/8 in. |
| Length (Inches) | 18 1/8 in. |
| Length (mm) | 460 mm |
| Material | Cold Rolled Steel (EDDQ) |
| Maximum Width | 9 3/4 in. |
| Mount Hole Quantity | 19 |
| New or Remanufactured | New |
| Oil Drain Plug Thread Size | M14 x 1.5 |
| Oil Level Sensor Port | No |
| Oil Pan Capacity | 4.23 QT |
| Oil Pan Material | Cold Rolled Steel (EDDQ) |
| Packaging | Box, Corrugated Or Solid |
| Pickup Included | No |
| Product Application | 00-96 Hyundai Elantra; 01-97 Hyundai Tiburon |
| Sump Type | Wet |
| Sump Location | Front |
| Width (Inches) | 9 3/4 in. |
| Width (mm) | 248 mm |
| Windage Tray Included | No |
Interchanges & Equivalent parts:
| 58476 |
| 103222 |
| 501138 |
| 501184 |
| KHYP2A |
| 264801 |
| 2151023030 |
| SPIHYP02A |
| HYP02A |
| 21510-23030 |
| OP38126 |
| 3310096 |
| DOR264801 |
| 264-801 |
