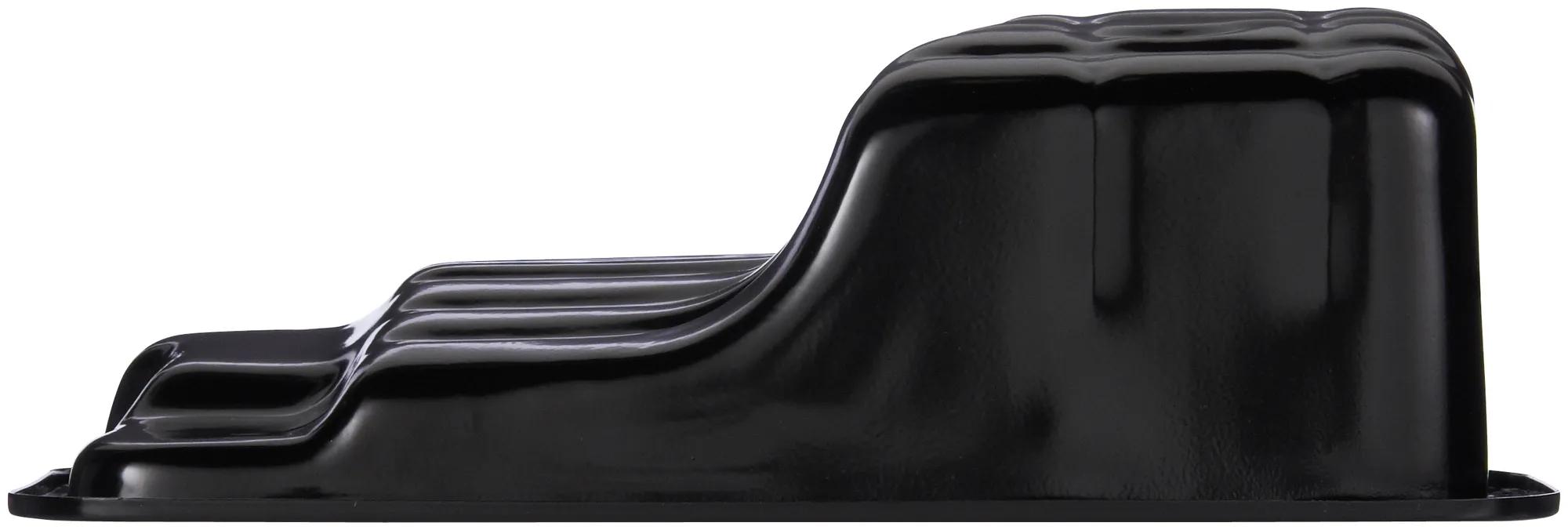

Oil Pan - New
#SPENSP01A
Product Overview
Innovative Engineering, Manufacturing Technology And Quality Control Ensure That Spectra Premium Oil Pans Meet Or Exceed The Performance Of The Original Equipment They Replace.
Features & Benefits
Features & Benefits
SPENSP01A - Features Documents - A
SPENSP01A - Features Documents - B
SPENSP01A - Features Documents - C
- Unit Is Designed To OE Fit, Form And Function Requirements Accomplished By Leveraging Our OE Expertise
- Durable Powder Coating Applied To Exterior Of Oil Pan For A Long Lasting Rust Free Unit
- Washed And Then Sealed With An Anti-Corrosive Spray On The Interior For A Rust Free Unit At Installation
- Fit Tested On The Very Same Vehicle Application For Which It Was Developed Verifying First-Hand That The Design Fits Properly And Can Be Easily Installed
- Engineered To Stringent Tolerances Based On Our Canadian Engineers In-Depth Knowledge Of The OE Part It is Designed To Replace
- Road Tested To Ensure Real World Performance And To Verify That Each Design Meets Our High Standards For Quality
- Coating Salt Spray Tested For Over 200 Hours To Insure Durability
- Addition Of Threaded Stainless Steel Inserts In The Aluminum Pans To Increases Product Lifespan By Providing Increased Durability While Maintaining The OE Drain Plug Specifications
Specifications
| Baffled | yes |
| Capacity | 3.38 QT |
| Color | Black |
| Contents | 1 Engine Oil Pan |
| Crank Shaft Wiper Included | No |
| Depth (Inches) | 5 5/8 in. |
| Depth (mm) | 142 mm |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Finish | Black Powder Coating |
| Gasket Or Seal Included | No |
| Kick Out Type Pan | No |
| Length | 17 in (43.18 cm) |
| Length (in.) | 17 in. |
| Length (Inches) | 17 in. |
| Length (mm) | 432 mm |
| Material | Cold Rolled Steel (EDDQ) |
| Maximum Width | 8 in. |
| Mount Hole Quantity | 14 |
| New or Remanufactured | New |
| Oil Drain Plug Thread Size | M14 x 1.5 |
| Oil Level Sensor Port | No |
| Oil Pan Capacity | 3.38 QT |
| Oil Pan Material | Cold Rolled Steel (EDDQ) |
| Packaging | Box, Corrugated Or Solid |
| Pickup Included | No |
| Product Application | 98-95 Nissan 200SX; 00-96 Nissan Lucino; 93-91 Nissan NX; 90-89 Nissan Pulsar NX; 94-90 Nissan Sentra; 00-96 Nissan Sentra; 06-00 Nissan Sentra; 89 Nissan Sentra; 95 Nissan Sentra; 04-95 Nissan Tsubame; 96-95 Nissan Tsuru; 17-97 Nissan Tsuru |
| Sump Type | Wet |
| Sump Location | Front |
| Width (Inches) | 8 in. |
| Width (mm) | 203 mm |
| Windage Tray Included | No |
Interchanges & Equivalent parts:
| 58227 |
| 58285 |
| 58630 |
| 111104Z000 |
| 111105M000 |
| 1010862 |
| 103069 |
| 501145 |
| KNSP1A |
| NSP01A |
| 264500 |
| 11110F4100 |
| 11110F4600 |
| SPINSP01A |
| 1111077A12 |
| 3310086 |
| SK264500 |
| OP38070 |
| INSP01A |
| DOR264500 |
| 264-500 |
