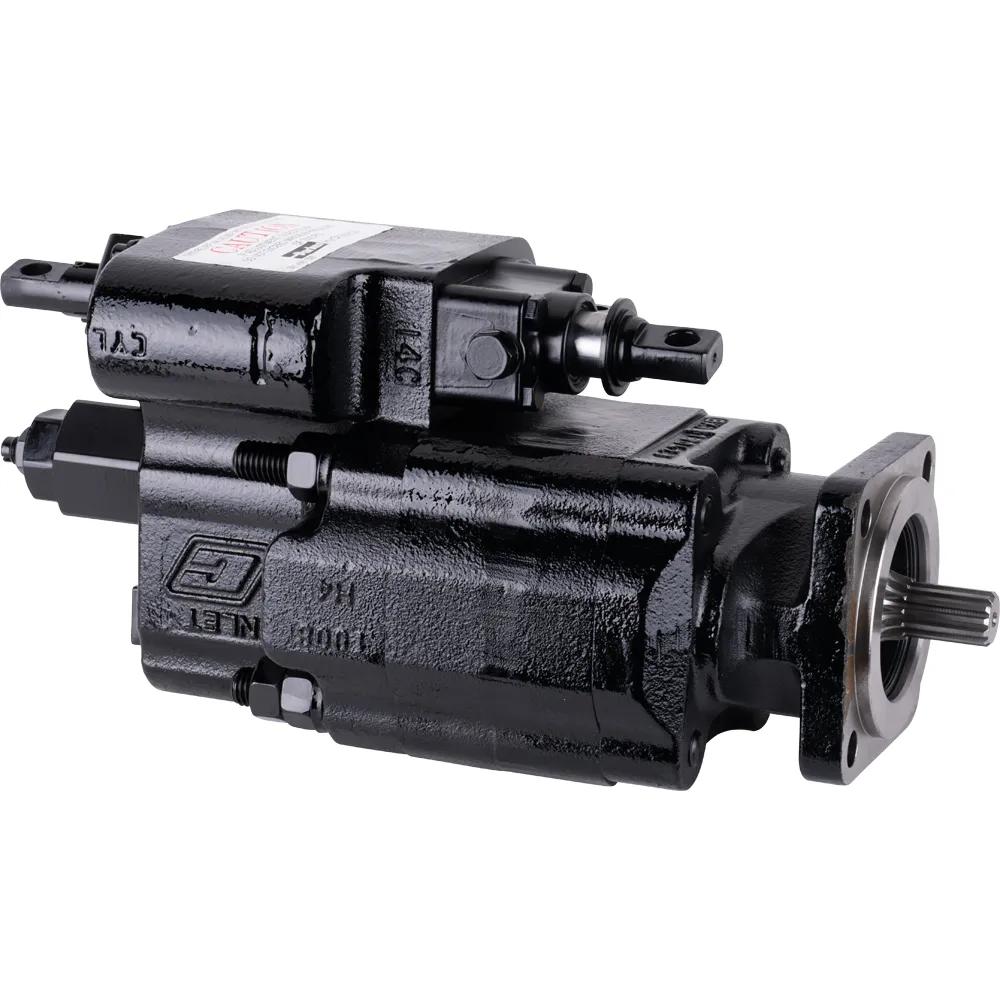

Parker Hannifin Hydraulic Pump Direct Mount, Cast Iron, Fixed Displacement
#CHEC102D-2.5-3
Product Overview
Parker’s C101/C102 fixed displacement gear pumps offer high performance and high endurance due to their durable cast iron construction, making them ideal for vocational and municipal equipment markets. This pump is available as a standard model with an integrated valve for raising and lowering dump beds, featuring an integral relief valve for added protection.Hydraulic Pump, Fixes, NPT Port, Cast Iron, Displacement: 6.4 cu-in, Fluid Compatibility: Standard Hydraulic Fluids, Phosphate-Ester, Mounting Style: Direct, 2500 psi, Rotational: CCW, 2400 rpm, 0 to 180 °F, For Dump Truck, Dump Trailer
Features & Benefits
- Hydraulic Pump
- Three-piece cast iron construction for distribution flexibility
- Durable high-strength cast iron body for excellent power-to-weight ratio
- Cast iron construction for durability
- Balanced thrust plates minimize friction and leakage
- Roller bearings for durability
Specifications
| Matériel | Fonte |
| Type | Fixe |
| Poids | 70 lb |
| Application | Camion benne, Remorque basculante |
| Cylindrée | 6.38 |
| Compatibilité des fluides | Standard Hydraulic Fluids, Phosphate-Ester |
| Inclus | Valve intégrée pour le levage et l'abaissement des bennes basculantes, soupape de décharge intégrale |
| Style de montage | Direct |
| Pression de fonctionnement | 2500 psi |
| Port Type | NPT |
| Port Size | 2.5 |
| Rotational | CCW |
| Speed Rating | 2400 tr/min |
| Temperature Range | 0 à 180 °F |
| Product Category | Pompe hydraulique |
Interchanges & Equivalent parts:
| U98E2XL272BPRL |
| 3149325204 |
| BPC1010DMCW |
| C102ASK-24 |
| C102D |
| C102D-2.5-3 |
| C102D2.5 |
| C102D2.5-1 |
| C102D2.5-3 |
| E2XL272BPRL |
| TYRT102AX25A20 |
| TYRT102AX25L20 |
