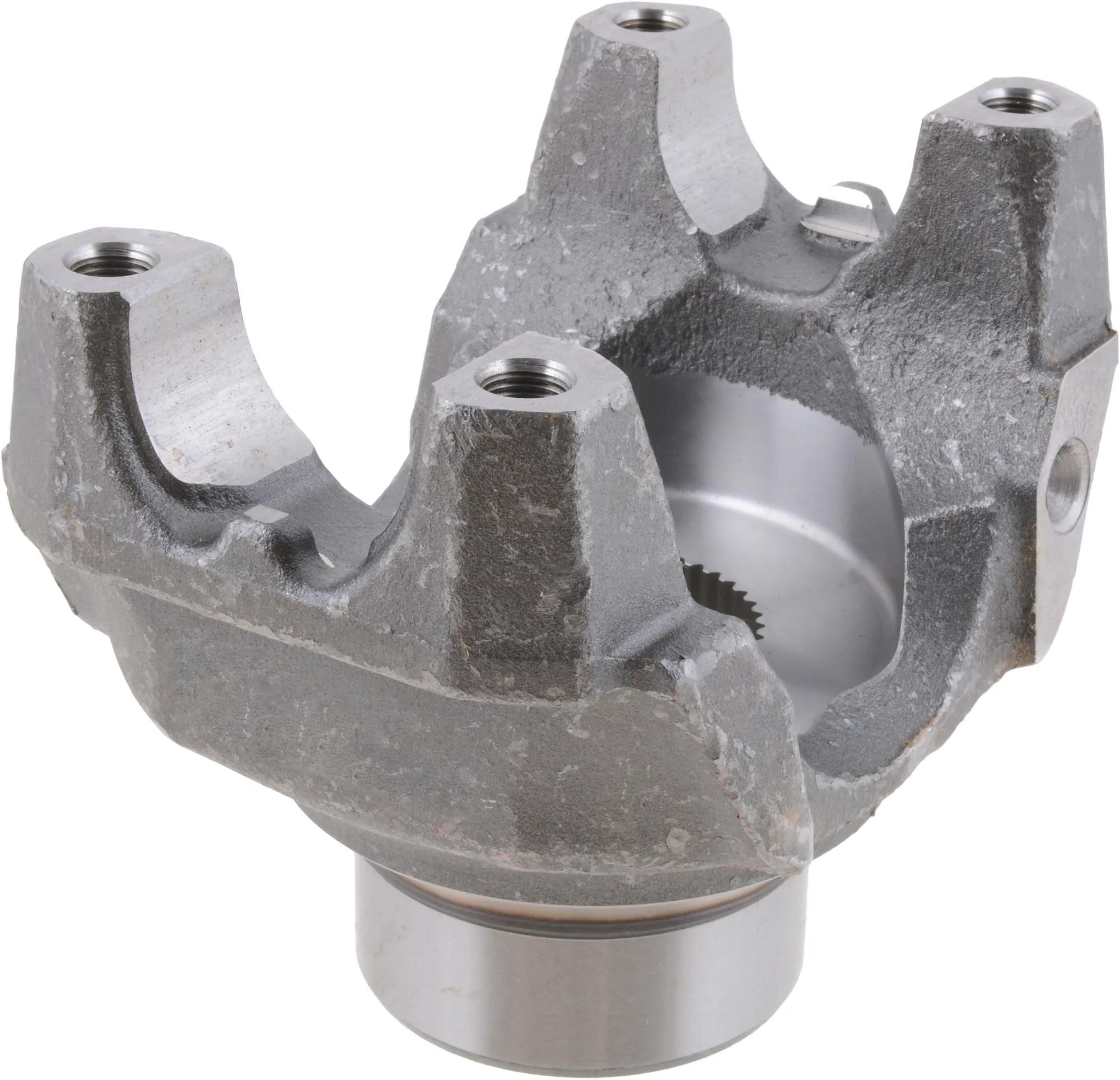

Pinion Shaft End Yoke, 1710, Steel, HR Yoke, 3 in Hub Dia, 6.19 in Outside Yoke
#SPI6-4-8451-1
Product Overview
Pinion Shaft End Yoke, Steel, C-Bore Depth: 0.236 in, Center Line to End Hub: 5.19 in, 3 in Hub Dia, Joint Angle: 30 deg, 2.5 in Length Thru Hole, 6.19 in Outside Yoke, 1710, 44 Spline Count, Yoke Bearing Dimension: 1.938 in, HR Yoke
Specifications
| C-Bore Depth | 236 |
| Hub Diameter | 3 in |
| Joint Angle | 30 deg |
| Material | Steel |
| Quantity | 1 |
| Series | 1710 |
| Spline Count | 44 |
| VMRS Code | 022003072 |
| Weight | 11.99 lb |
| Yoke Style | HR |
| Center Line to End Hub | 5.19 in |
| Length Thru Hole | 2.5 in |
| Outside Yoke Dimension | 6.19 in |
| Yoke Bearing Dimension | 1.938 in |
| Manufacturer Part Number | 6-4-8451-1 |
| Product Category | Pinion Shaft End Yoke |
