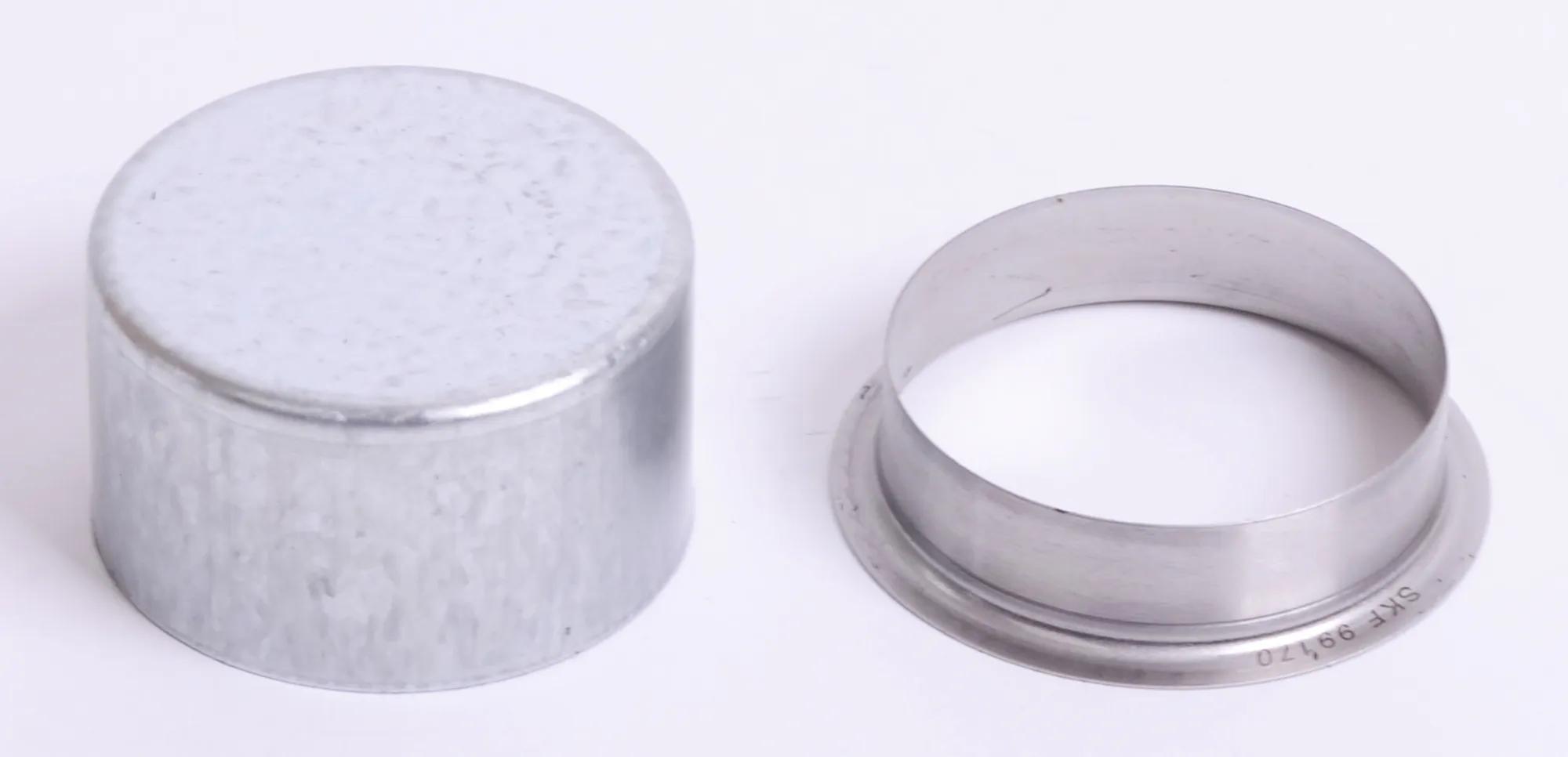

Pinion Speedi-Sleeve - Rear Axle
#SKF99170
Product Overview
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Features & Benefits
Features & Benefits
SKF99170 - Features Documents - A
SKF99170 - Features Documents - B
SKF99170 - Features Documents - C
SKF99170 - Features Documents - D
SKF99170 - Features Documents - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Fits Shaft Diameter | 1.736 in. To 1.742 in. / 44.09 mm To 44.25 mm |
| Flange Diameter | 2.063 in. / 52.40 mm |
| Installation Dimension | .813 in. / 20.65 mm |
| N Nominal Dimension | 1.739 in. / 44.17 mm |
| Packaging | Boxed |
| Seal Surface Width | .375 in. / 9.52 mm |
| Speedi-Sleeve Width | .500 in. / 12.70 mm |
