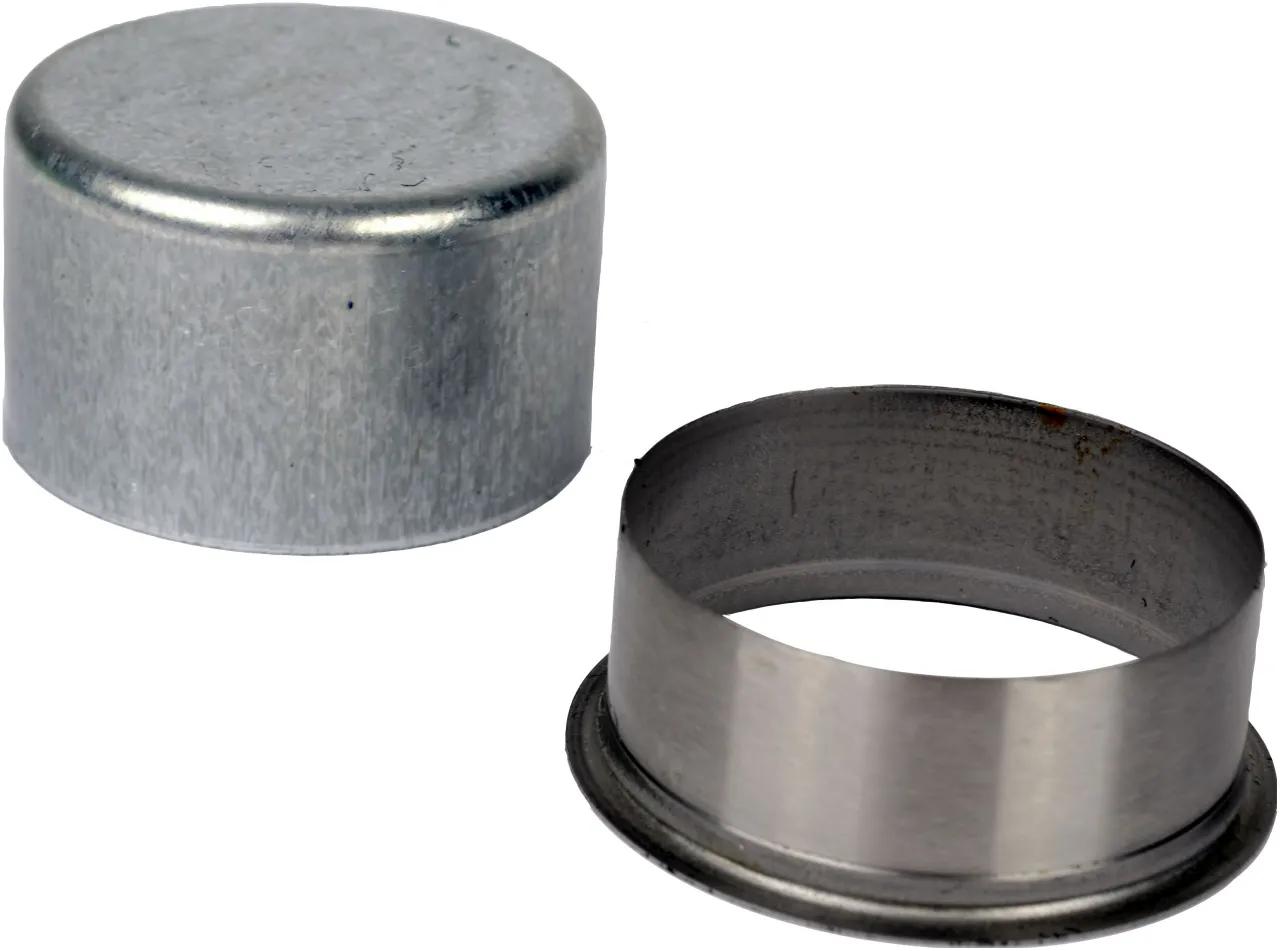

Pinion Speedi-Sleeve - Rear Axle
#SKF99168
Product Overview
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Features & Benefits
Features & Benefits
SKF99168 - Features Documents - A
SKF99168 - Features Documents - B
SKF99168 - Features Documents - C
SKF99168 - Features Documents - D
SKF99168 - Features Documents - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Compatible avec le diamètre de l'arbre | 1.684 in. To 1.690 in. / 42.78 mm To 42.93 mm |
| Diamètre de bride | 1-29/32 in (4.85 cm) |
| Épaisseur | 9/16 in (1.42 cm) |
Interchanges & Equivalent parts:
| 6002057 |
| 145899168 |
| 91393252 |
| CR99168 |
| 965899168 |
| 99168 |
| 991681 |
| 99168CHR |
| 99168RS |
| CHR99168 |
| N99168 |
| NN99168 |
| ZAR99168 |
| KWK99168 |
