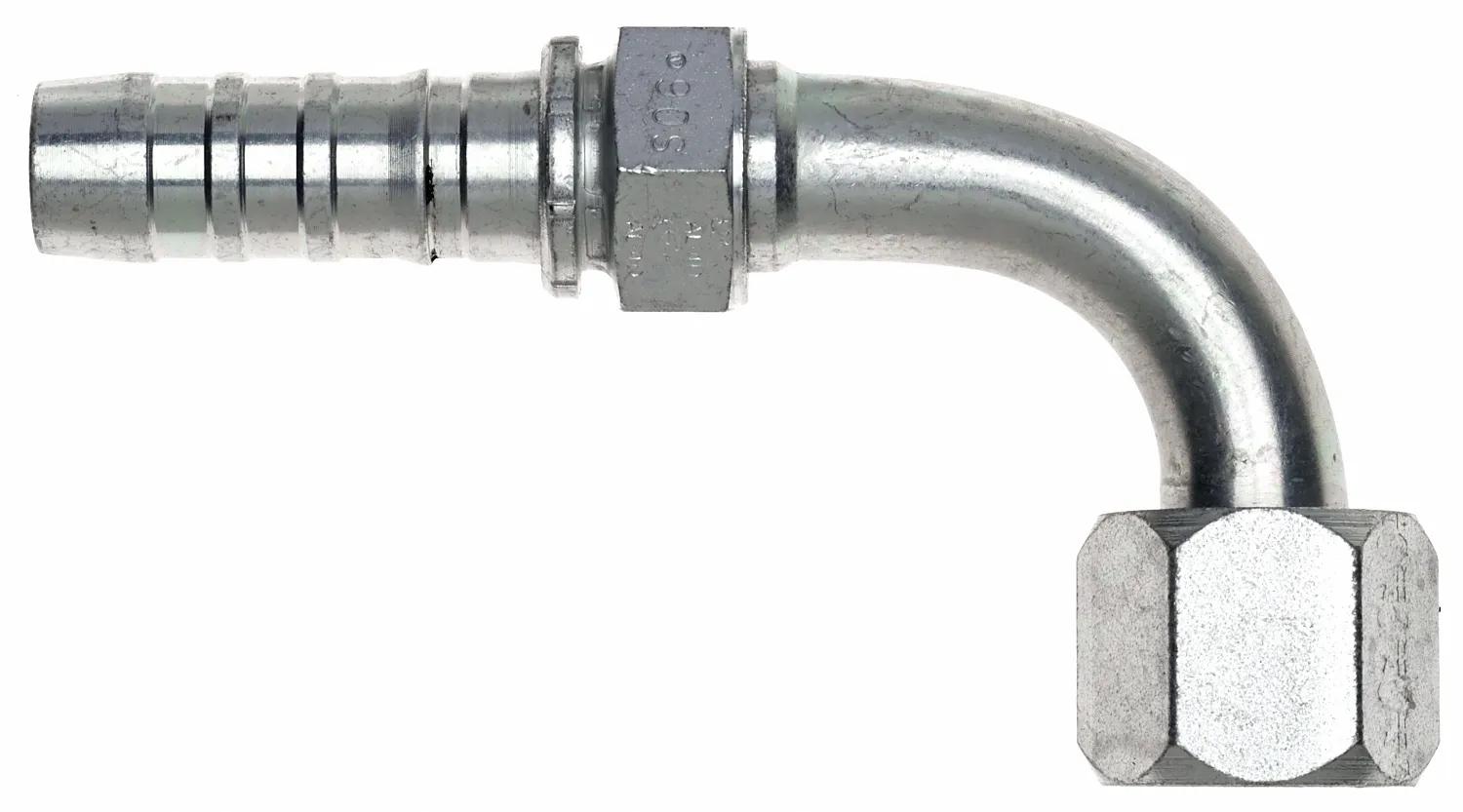

Power Crimp Female JIC 37 Flare Swivel - 90*, 24C2-24FJX90S
#GAT83149
Product Overview
Gates Power Crimp Couplings Are a 2 Piece design, Stem & Ferrule, for Select Gates Wire Braid & Fiber Braid Hoses.
Features & Benefits
- Power Crimp Couplings Can Be Used on Certain Sizes of Gates C5E, G1, G1H, GTH, G2, M3K, RLA & LP350X Hoses.
Specifications
| Coupling Description | Power Crimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Cut Off (in) – C | 4-15/32 in (11.35 cm) |
| Drop (in.) | 4 in (10.16 cm) |
| Hose Recommendation | Gates C5E; G1; G2; GTH; M3K & RLA |
| Industrial Description | 24C2-24FJX90S |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 7-7/64 in (18.06 cm) |
| Nut Hex (in) – H2 | 3/32 in (0.23 cm) |
| Nut Hex Size | 2-1/4 in (5.72 cm) |
| Thread | 1-7/8 in-12 |
| Thread Type | Female JIC 37 deg Flare Swivel - 90 deg Bent Tube |
| Type | Power Crimp Female JIC 37 Flare Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 83149 |
| UCJCFX902424 |
| 1AA24FJB24 |
| 24C224FJX90S |
| 925006837 |
