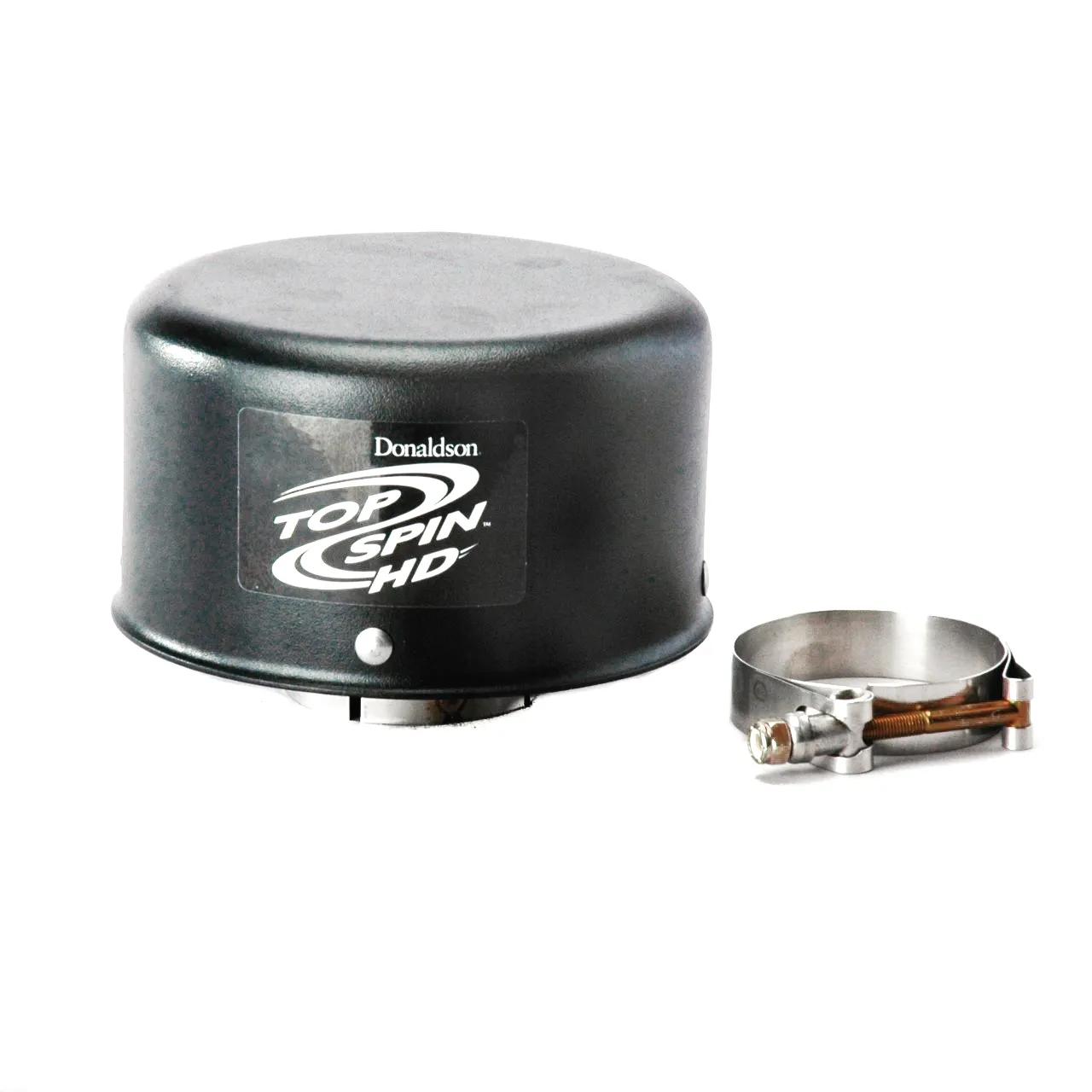

Pre-Cleaner, H: 4,26 in, OD: 2,6 in
#DONH002851
Features & Benefits
- TopSpin HD extends primary air filter life, boosts system efficiency and extends engine life in medium to heavy dust environments
- Separates up to 80% of incoming contaminant per ISO 5011
- All-metal pre-cleaner is a durable solution for punishing conditions
- All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments
- One-piece stainless-steel impeller is the only moving part
Specifications
| Diameter | 6.3 in (160.1 mm) |
| Diameter Range | 6 to 6.99 in |
| Efficiency | 80 |
| Efficiency Test Std | ISO 5011 |
| Height | 4.26 in (108.21 mm) |
| Outer Diameter | 2.6 in (66.04 mm) |
| Rated Flow High Range | 198 cfm (5,61 m³/min) |
| Rated Flow Low Range | 99 cfm (2,8 m³/min) |
| Restriction HR | 8,59 in H2O (218 mm H2O) |
| Restriction LR | 1,69 in H2O (42,93 mm H2O) |
Interchanges & Equivalent parts:
| H002851 |
| EX25 |
| 255 |
| AP3000 |
