2 POINTS

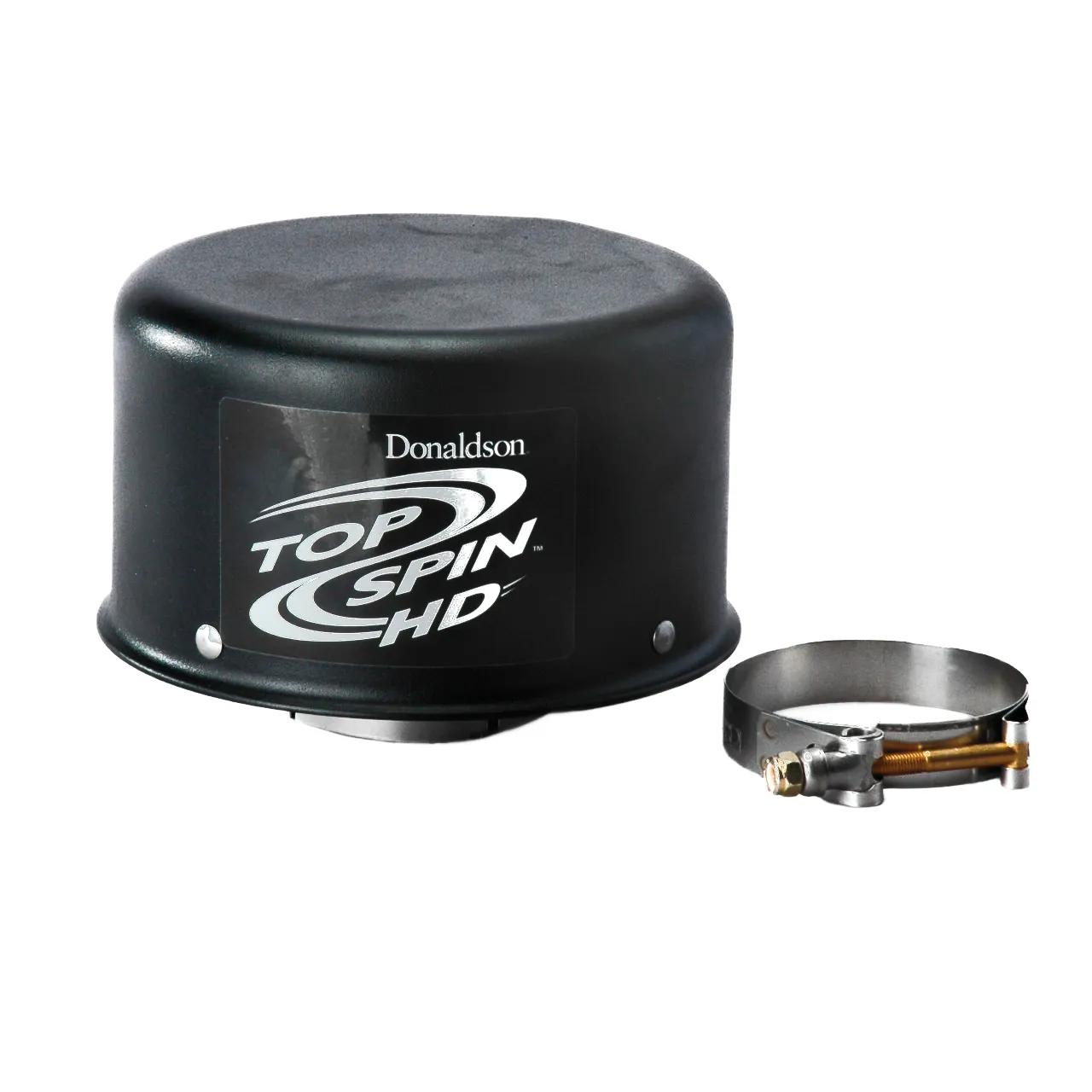

Pre-Cleaner, H: 4,97 in, OD: 3,07 in
#DONH002852
Features & Benefits
- TopSpin HD extends primary air filter life, boosts system efficiency and extends engine life in medium to heavy dust environments
- Separates up to 80% of incoming contaminant per ISO 5011
- All-metal pre-cleaner is a durable solution for punishing conditions
- All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments
- One-piece stainless-steel impeller is the only moving part
Specifications
| Diameter | 7.21 in |
| Diameter Range | 7 to 7.99 in |
| Efficiency | 0.8 |
| Efficiency Test Std | ISO 5011 |
| Height | 4.97 in |
| Outer Diameter | 3.07 in |
| Rated Flow High Range | 276 cfm (7,82 m³/min) |
| Rated Flow Low Range | 149 cfm (5 m³/min) |
| Restriction HR | 8,71 in H2O (221 mm H2O) |
| Restriction LR | 2,52 in H2O (64,01 mm H2O) |
Interchanges & Equivalent parts:
| H002852 |
| EX30 |
| 330 |
| 24 |
| 50 |
