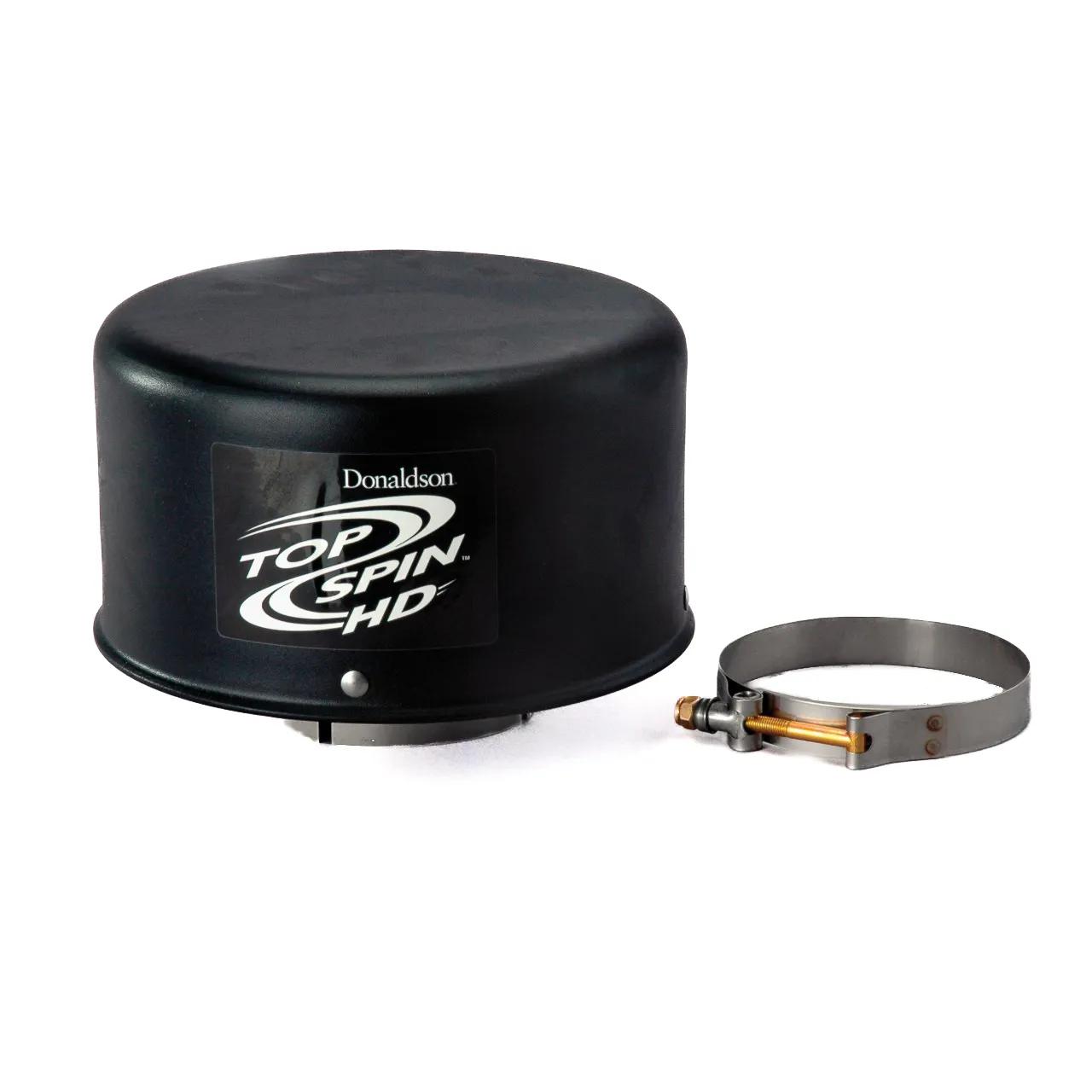

Pre-Cleaner, H: 5,83 in, OD: 4,1 in
#DONH002853
Product Overview
PRE-CLEANER, TOPSPIN HD
Features & Benefits
- TopSpin HD extends primary air filter life, boosts system efficiency and extends engine life in medium to heavy dust environments
- Separates up to 80% of incoming contaminant per ISO 5011
- All-metal pre-cleaner is a durable solution for punishing conditions
- All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments
- One-piece stainless-steel impeller is the only moving part
Specifications
| Diameter | 8.71 in (221.3 mm) |
| Diameter Range | 8 to 8.99 in |
| Efficiency | 80 |
| Efficiency Test Std | ISO 5011 |
| Height | 5.83 in (148.09 mm) |
| Outer Diameter | 4.1 in (104 mm) |
| Rated Flow High Range | 399 cfm (11,3 m³/min) |
| Rated Flow Low Range | 198 cfm (6 m³/min) |
| Restriction HR | 9,02 in H2O (229 mm H2O) |
| Restriction LR | 2,01 in H2O (51,06 mm H2O) |
Interchanges & Equivalent parts:
| EX40 |
| 440S |
| AP4500 |
| AP8403 |
| 9001R |
| 24 |
| 50 |
