Pre-Cleaner, H: 7,56 in, OD: 5,08 in
#DONH002854
Product Overview

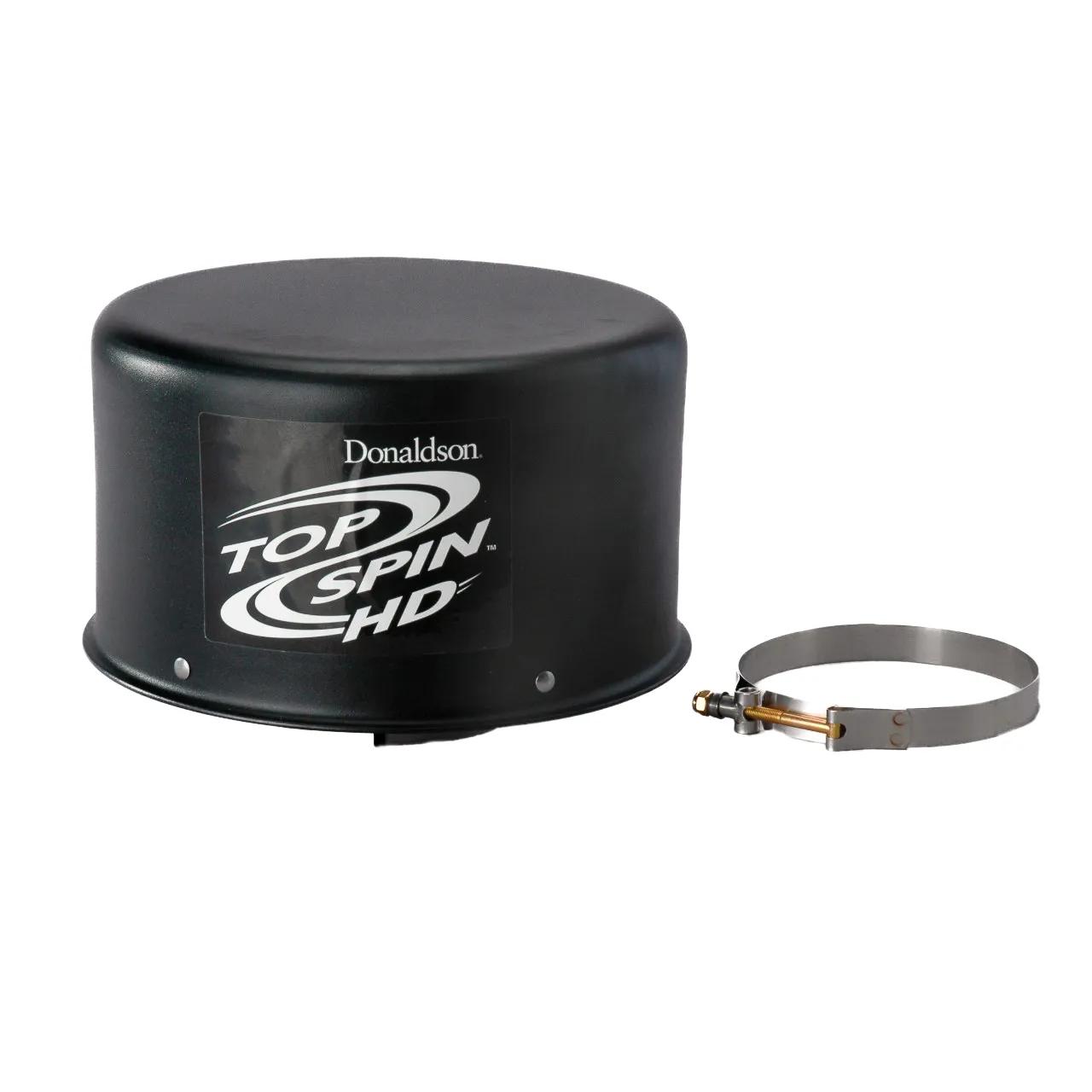

PRE-CLEANER, TOPSPIN HD
Features & Benefits
- TopSpin HD extends primary air filter life, boosts system efficiency and extends engine life in medium to heavy dust environments
- Separates up to 80% of incoming contaminant per ISO 5011
- All-metal pre-cleaner is a durable solution for punishing conditions
- All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments
- One-piece stainless-steel impeller is the only moving part
Specifications
| Diameter | 11.18 in (284 mm) |
| Diameter Range | 11 to 11.99 in |
| Efficiency | 80 |
| Efficiency Test Std | ISO 5011 |
| Height | 7.56 in (192.03 mm) |
| Outer Diameter | 5.08 in (129 mm) |
| Rated Flow High Range | 706 cfm (20 m³/min) |
| Rated Flow Low Range | 354 cfm (10 m³/min) |
| Restriction HR | 10,79 in H2O (274,07 mm H2O) |
| Restriction LR | 2,4 in H2O (60,96 mm H2O) |
Interchanges & Equivalent parts:
| EX50 |
| 550 |
| AP5000 |
| 9002 |
| 9002R |
| 0340063000 |
| 46 |
