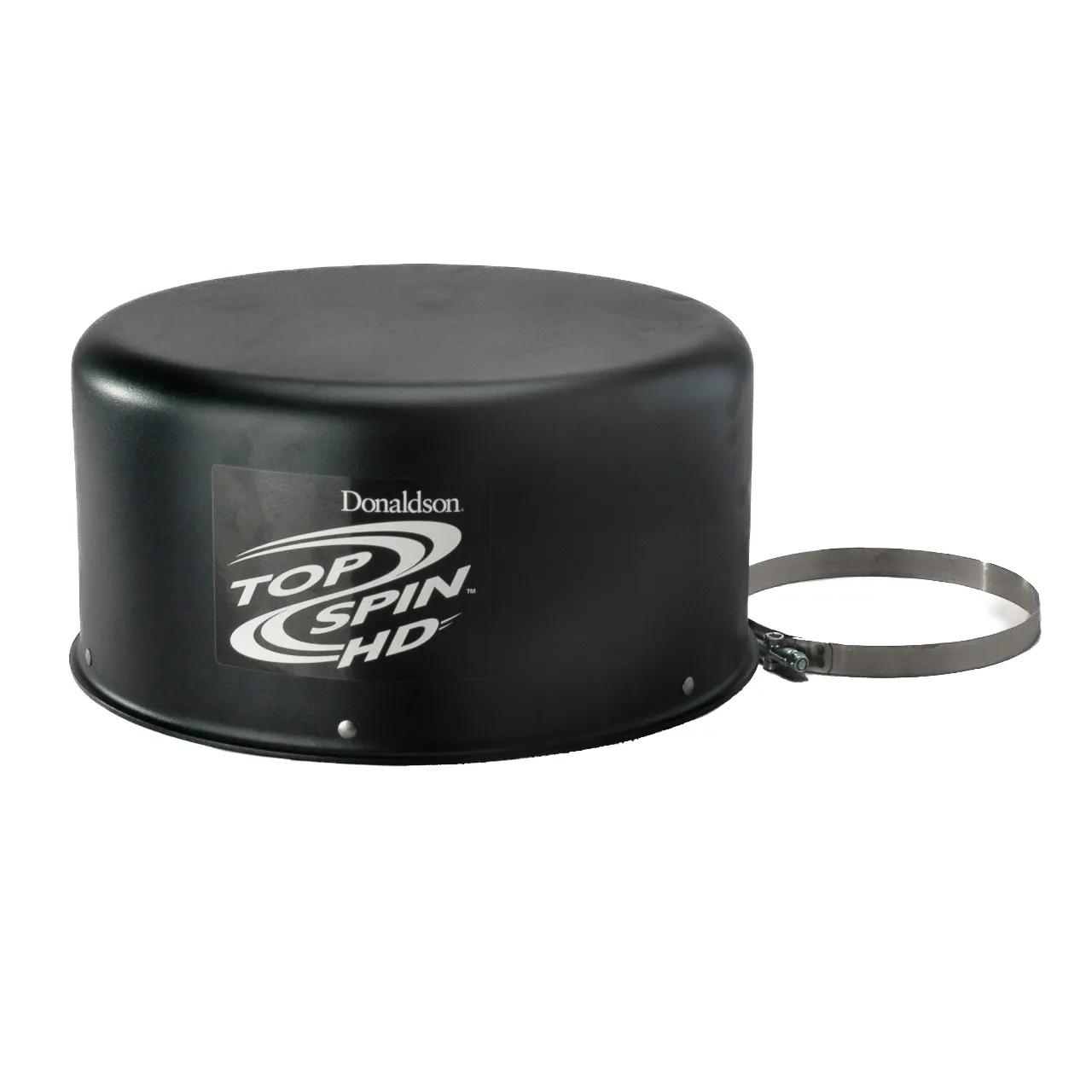

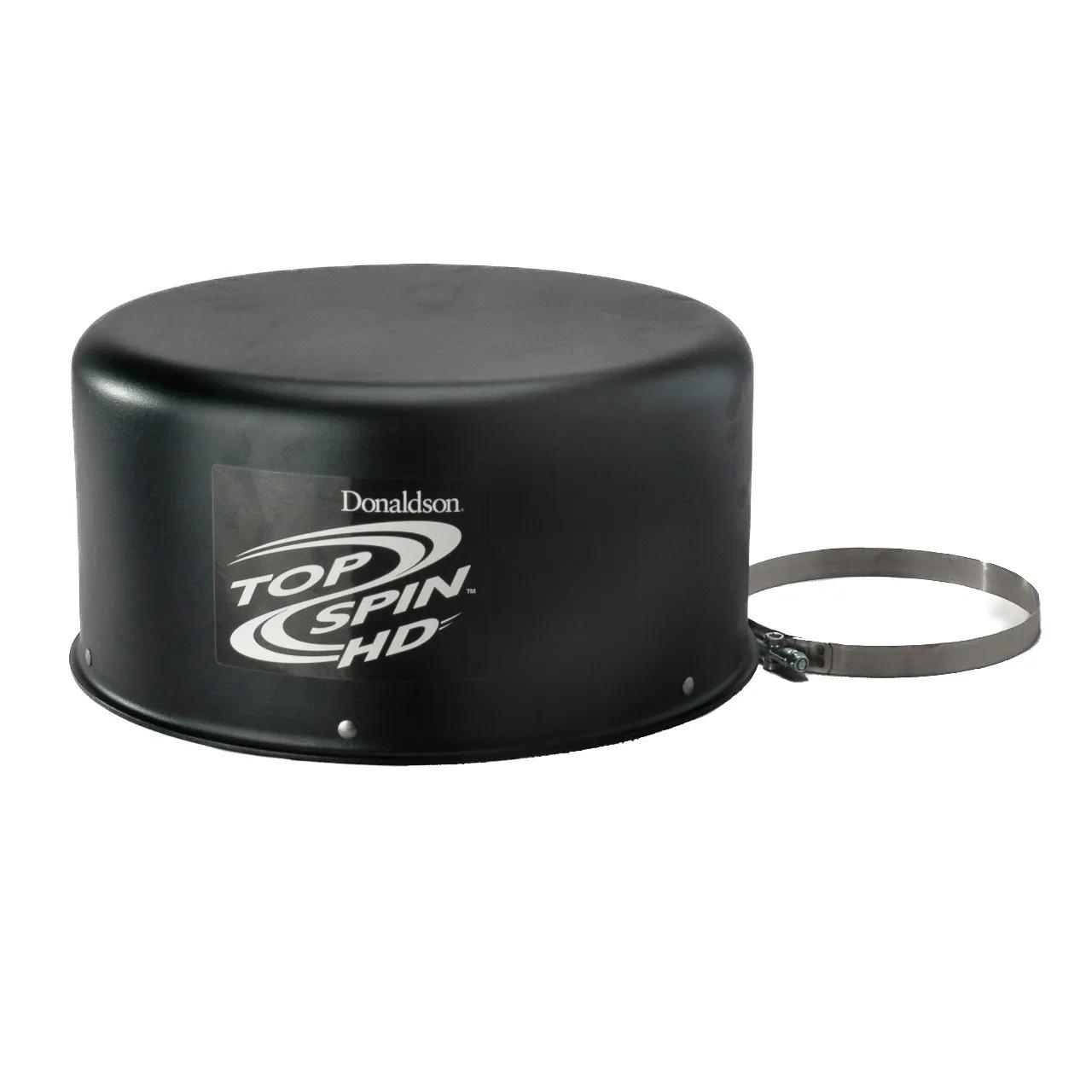

Pre-Cleaner, H: 8,39 in, OD: 7,09 in
#DONH002856
Features & Benefits
- TopSpin HD extends primary air filter life, boosts system efficiency and extends engine life in medium to heavy dust environments
- Separates up to 80% of incoming contaminant per ISO 5011
- All-metal pre-cleaner is a durable solution for punishing conditions
- All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments
- One-piece stainless-steel impeller is the only moving part
Specifications
| Diameter | 14.76 in (375 mm) |
| Diameter Range | 13 to 13.99 in |
| Efficiency | 80 |
| Efficiency Test Std | ISO 5011 |
| Height | 8.39 in (213.11 mm) |
| Outer Diameter | 7.09 in (180 mm) |
| Rated Flow High Range | 1342 cfm (38,01 m³/min) |
| Rated Flow Low Range | 742 cfm (21 m³/min) |
| Restriction HR | 9,69 in H2O (246 mm H2O) |
| Restriction LR | 2,8 in H2O (71,12 mm H2O) |
Interchanges & Equivalent parts:
| H002856 |
| EX70 |
| 770L |
| 500 |
| 68 |
| AP8405 |
