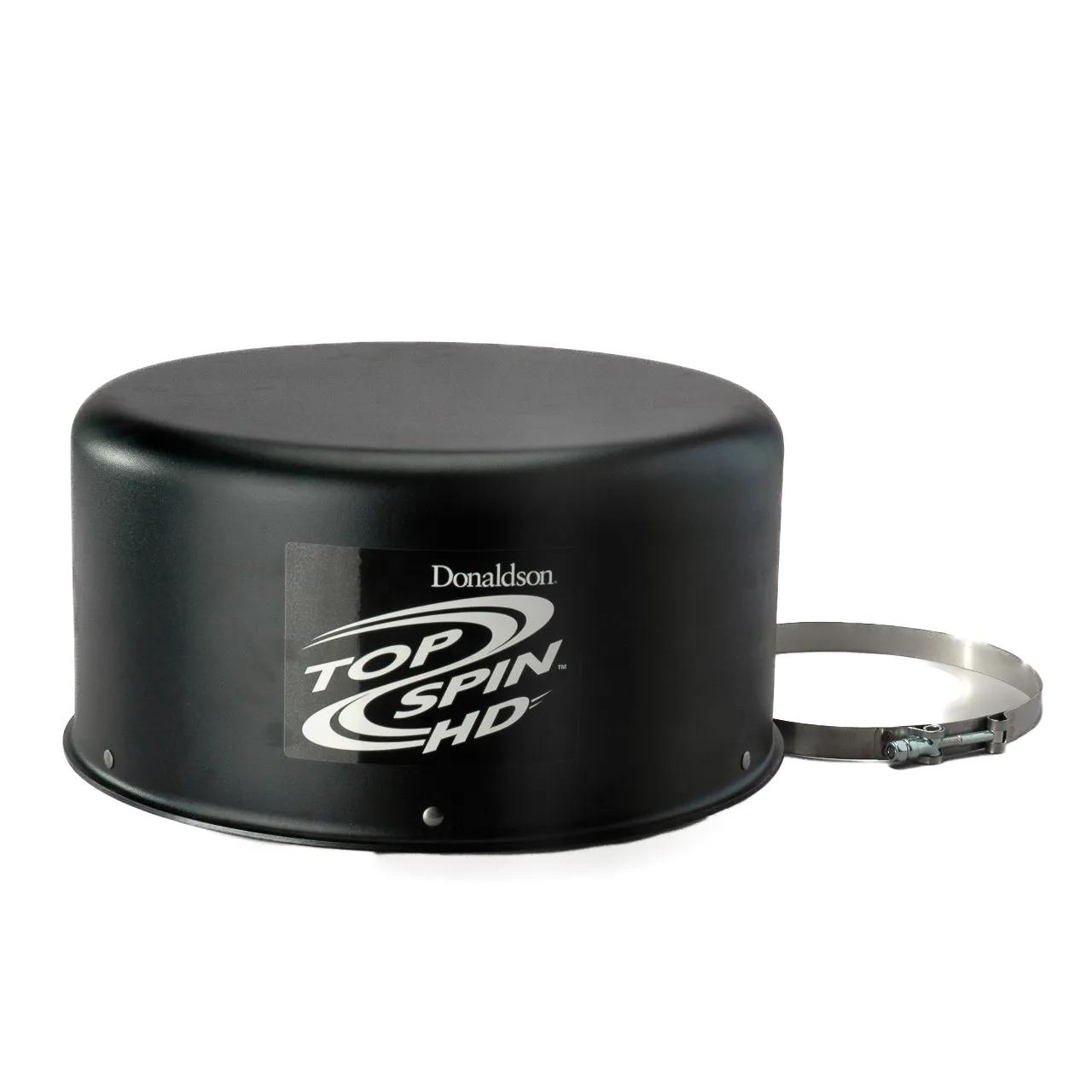

Pre-Cleaner, H: 8,39 in, OD: 8,08 in
#DONH002857
Product Overview
Why Choose Donaldson TopSpin HD Pre-Cleaners?
Features & Benefits
- TopSpin HD extends primary air filter life, boosts system efficiency and extends engine life in medium to heavy dust environments
- Separates up to 80% of incoming contaminant per ISO 5011
- All-metal pre-cleaner is a durable solution for punishing conditions
- All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments
- One-piece stainless-steel impeller is the only moving part
Specifications
| Diameter | 14.76 in (375 mm) |
| Diameter Range | 8 to 8.99 in |
| Efficiency | 80 |
| Efficiency Test Std | ISO 5011 |
| Height | 8.39 in (213.11 mm) |
| Outer Diameter | 8.08 in (205 mm) |
| Rated Flow High Range | 1583 cfm (44,83 m³/min) |
| Rated Flow Low Range | 940 cfm (26,6 m³/min) |
| Restriction HR | 10,98 in H2O (278,9 mm H2O) |
| Restriction LR | 3,7 in H2O (93,98 mm H2O) |
Interchanges & Equivalent parts:
| EX80 |
| 880 |
| 9003 |
| 500 |
| 68 |
| AP8405 |
