PRE-CLNR
#DONH002425
Features & Benefits

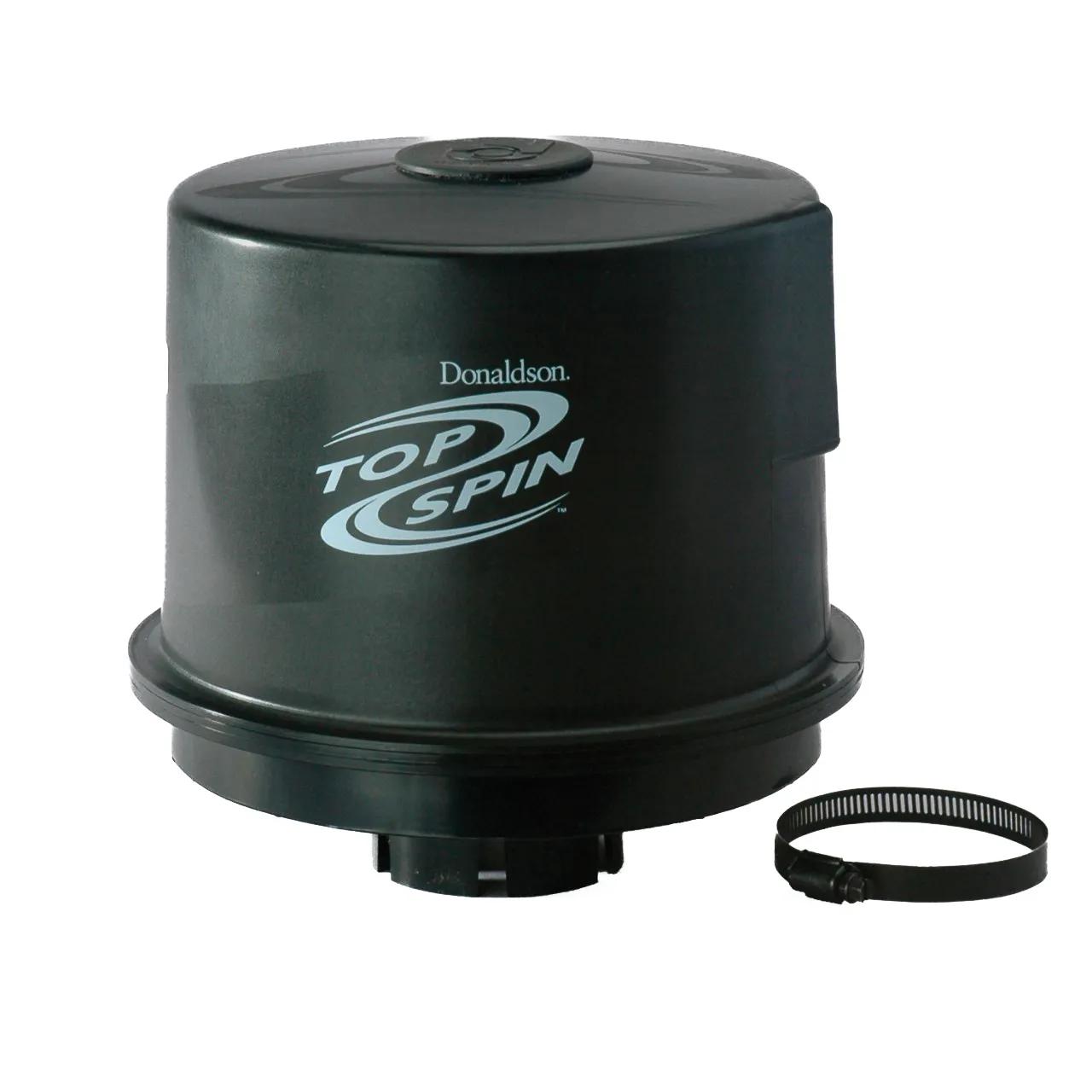

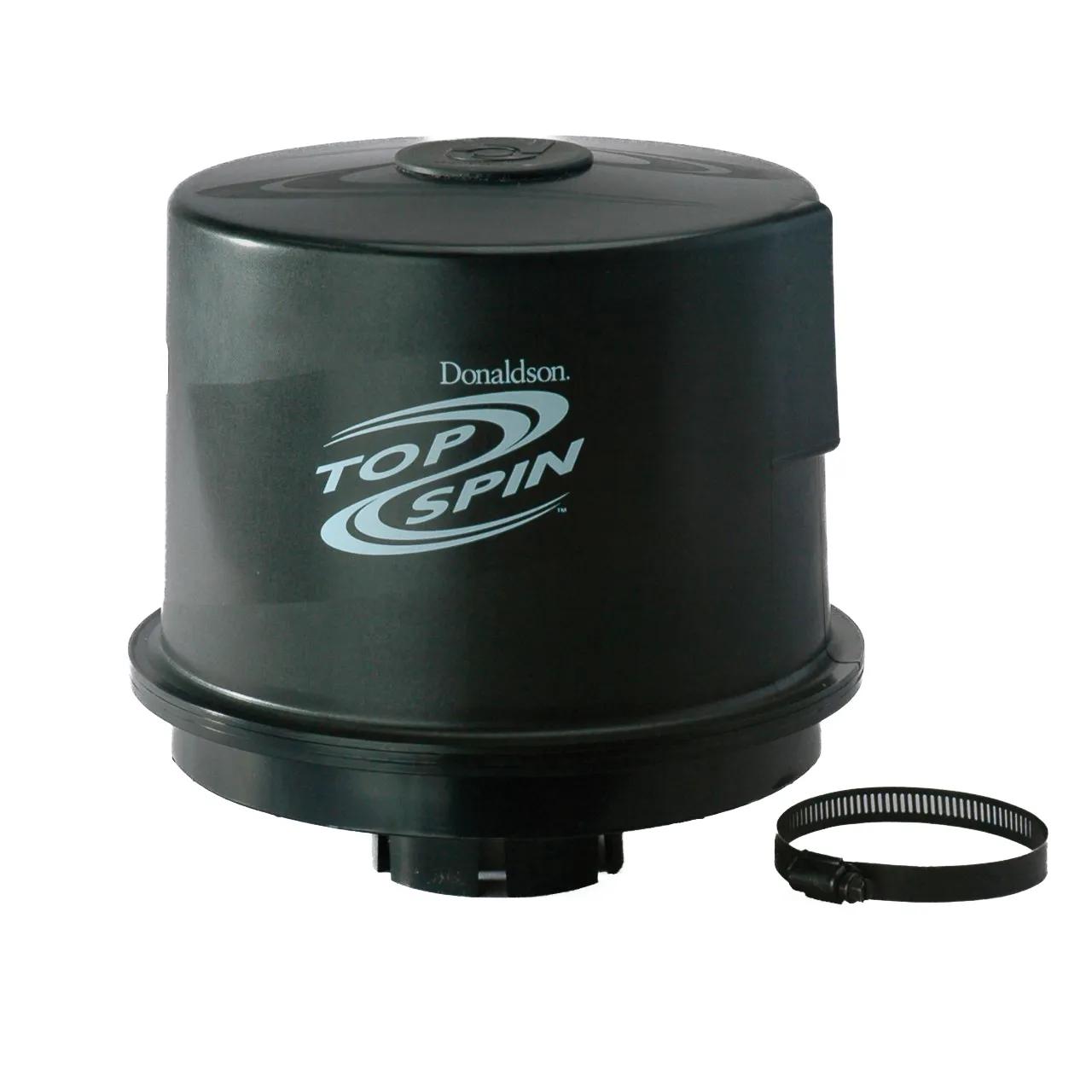

- Donaldson TopSpin pre-cleaners extend primary air filter life, boost system efficiency, and extend engine life
- Separates up to 85% of incoming contaminant per ISO 5011/SAE J726
- Self-cleaning- no maintenance bowl to clean
- Quick installation- one clamp to tighten
- Lighter than competitive pre-cleaners
Specifications
| Diameter | 9,49 in (241,1 mm) |
| Diameter Range | 3 to 3.99 in |
| Efficiency | 85 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Height | 9,4 in (238,8 mm) |
| Outer Diameter | 3,07 in (77,98 mm) |
| Rated Flow High Range | 448 cfm (12,7 m³/min) |
| Rated Flow Low Range | 202 cfm (6 m³/min) |
| Restriction HR | 5,01 in H2O (127 mm H2O) |
| Restriction LR | 0,98 in H2O (24,9 mm H2O) |
Interchanges & Equivalent parts:
| H002425 |
| 4169 |
| 24169 |
| 89169 |
| PROLTV069 |
| 8541738 |
| 14140089 |
| 5H0LTA0049 |
| CLD2351 |
| 11888212 |
| CH12953 |
| VOE11888212 |
| 060012217 |
| 2191-H002425 |
| DN H002425 |
| DN H002425 |
| DONH002425 |
| 60012217 |
| cH12953 |
