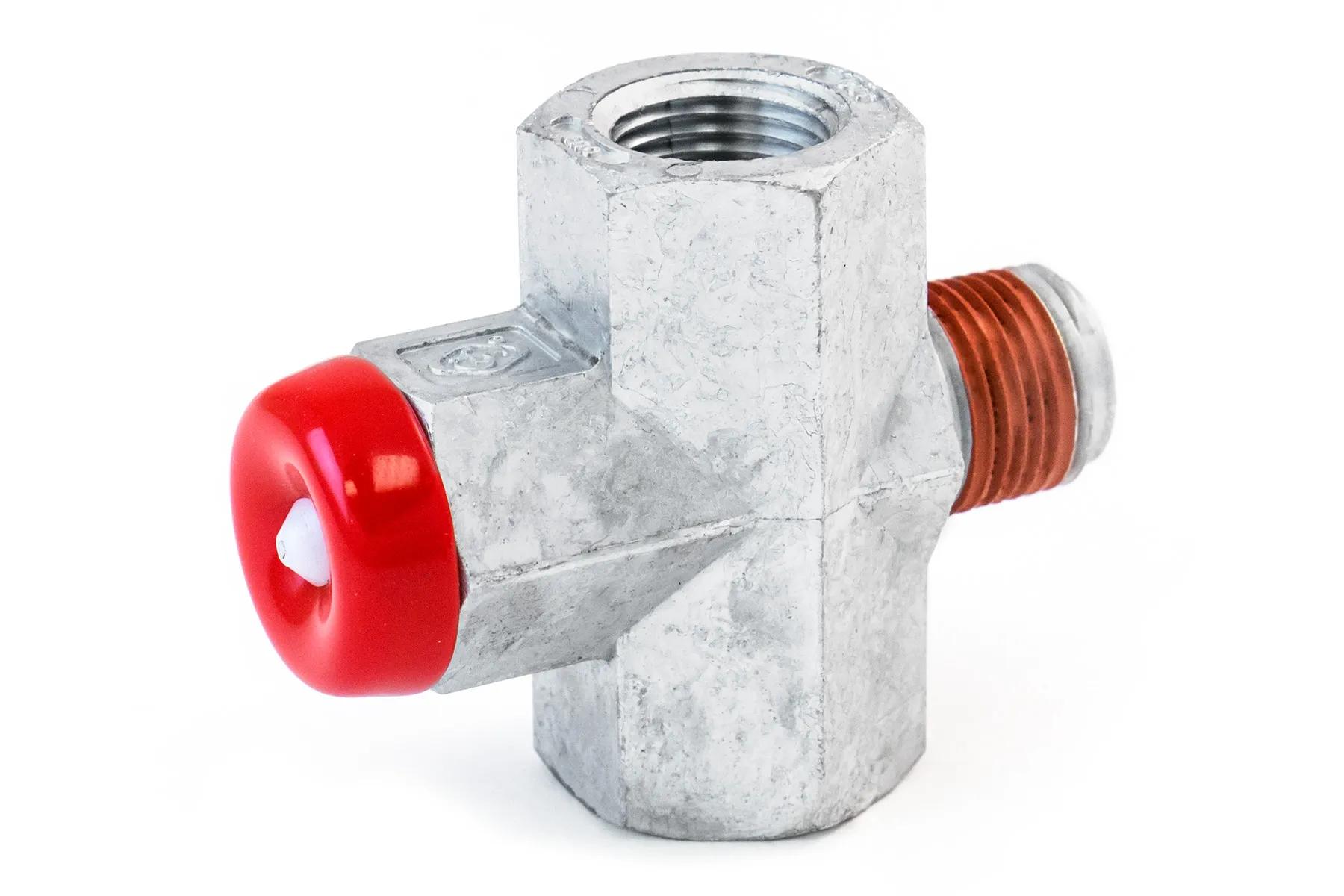

Pressure Protection Valve, 3/8 in MNPT Inlet, 3/8 in FNPT Outlet, 85 psi Operating Pressure
#SLN401153
Product Overview
Pressure Protection Valve, MNPT Inlet, FNPT Outlet, 3/8 in Inlet, 3/8 in Outlet, 85 psi Operating, 67 psi Closing Pressure
Features & Benefits
- Protects primary air source against loss of air pressure downstream
- Designed for in-tank mounting on tanks with dual outlet ports
- Red cap
Specifications
| Height | 2 in |
| Length | 2-27/64 in |
| Nom. Closing Pressure | 67 psi (4.62 bar) |
| Nom. Opening Pressure | 85 psi (5.86 bar) |
| Weight | 0.38 lbs (0.17 kg) |
| Width | 1-5/32 in |
| Inlet Size | 3/8 in |
| Inlet Type | MNPT |
| Mounting | In-tank |
| Outlet Size | 3/8 in |
| Outlet Type | FNPT |
| Pressure Rating | 85 psi Operating, 67 psi Closing |
| Product Category | Pressure Protection Valve |
| Quantity | 1 |
Interchanges & Equivalent parts:
| A6814291444 |
| 032217 |
| 223-385V |
| 91-8304 |
| AC158 |
| 223 385V |
| SNV401153 |
| 918304 |
| 401153TRA |
| 6450-401153 |
| 91-8304TEC |
| TEW91-8304 |
| TWD401153 |
