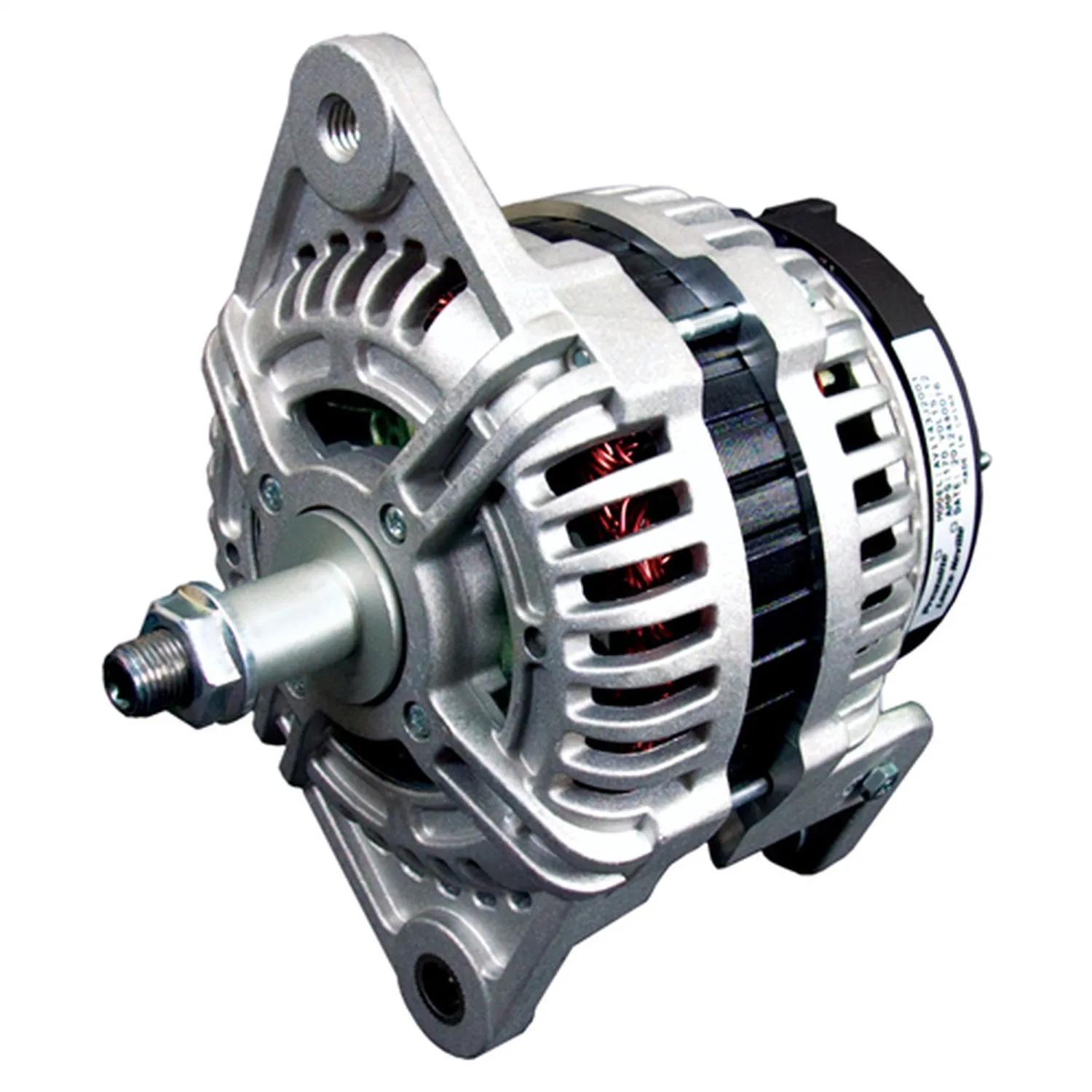

Prestolite Electric AVI 12V 170 Amp Alternator with J-180 Mount, CW Rotation
#LEEAVI555J
Product Overview
Leece-Neville heavy duty AVI555 alternators are part of the iconic "triple nickel" family, delivering 170 amps of powerful, consistent performance. Designed for Class 5 through 8 vehicles, this new alternator features a dual internal fan design to minimize heat damage and extend service life. It includes multiple connection points for both positive and negative terminals, heavy duty front and rear bearings, and is equipped with remote sense capability for optimal voltage regulation.Brush Alternator, 170 A, WX, WXLL, WXR, Xpeditor, A9513 Aeromax 113, CF8000, CLT9000, F800, FT900, J-180 (Short) Mounting, Polarity: Grounded, CW Rotation, 12 V System
Features & Benefits
- New alternator with 170 amp output
- 12 Volt system compatible
- CW (clockwise) rotation
- J-180 hinge mount type (short mounting)
- Dual internal fan design for enhanced cooling
- Remote sense equipped for stable voltage regulation
- Heavy duty front and rear bearings
- Includes instruction sheet
- Self excite excitation type
- Internal voltage regulator and rectifier
- Grounded polarity with multiple terminal options
- Lamp driver included
Specifications
| Adjustable Regulator | No |
| B+ Output Terminal | 1/4 in |
| Contents | (1) Alternator, Instruction Sheet |
| Diode Trio | No |
| Dust Shield | No |
| Excitation Type | Self Excite |
| Fan Type | Internal |
| Ground Terminal | Negative |
| I Terminal | #10 |
| Lamp Driver | Yes |
| Model | AVI, WX, WXLL, WXR, Xpeditor, A9513 Aeromax 113, CF8000, CLT9000, F800, FT900 |
| Negative Stud Size | M6 |
| New or Remanufactured | New |
| Note | REGULATOR/BRUSH ASSEMBLY SF-23-1.. REMOTE SENSE |
| Polarity | Grounded |
| Positive stud size | M8 |
| Rectifier location | Internal |
| Regulator number | SF-22 |
| Remote sense | No |
| Remote Sense Terminal | No |
| R Terminal | 10 |
| Shaft Diameter | 55/64 in |
| Terminal | # 10 |
| Weight | 16 lb (7.26 kg) |
| Current Rating | 170 A |
| Mounting Configuration | J-180 (Short) |
| Pulley Type | Pulley Not Included |
| Regulator Type | Internal |
| Rotation Direction | CW |
| System Voltage | 12 V |
| Product Category | Brush Alternator |
Interchanges & Equivalent parts:
| AVI555 |
