Radiator, International / Navistar, 40-1/8 x 24-1/2 x 2-1/16 in
#HDRNAV16
Features & Benefits
- OEM designs
- Made by TS16949 certified factories
- Allow for efficient expansion and contraction
- Stainless Steel Oil Coolers
- Double Crimped Headers
- Included hardware kit
- Individually packaged in a rugged double ply cardboard box with foam protection
- One year unlimited mileage warranty against manufacturing or material defect
Specifications
| Application | International, Navistar |

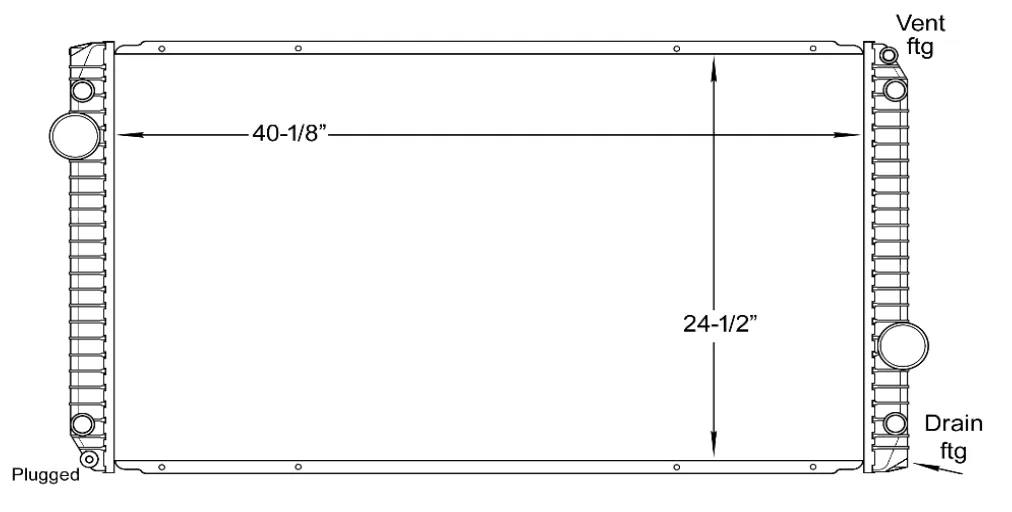

| Core Size | 40-1/8 x 24-1/2 x 2-1/16 in |
| Height | 40-1/8 in (101.93 cm) |
| Inlet Diameter | 2-1/2 in (6.35 cm) |
| Outlet Diameter | 2-1/2 in (6.35 cm) |
| Thickness | 2-1/16 in (5.23 cm) |
| Width | 24-1/2 in (62.23 cm) |
Interchanges & Equivalent parts:
1S180148, 1S180149, 1S180150, 1S180179, 1S180212, 1S180237, 3S11553, FC4Z8005UA, 2601431-C91, 2598299-C91, 2596586-C91, 2591560-C91, 2591558-C91, 2591557-C91, 2591556-C91, AKM5782A, 2591560C91 NAV16, 2591560C91 NAV16, 2601431-C91, 1S180237, 1S180150, 1S180148, 2591556-C91, 3S11553, 2596586-C91, 2591557-C91, 1S180179, 2598299-C91, 2591558-C91, 1S180212, 1S180149, FC4Z8005UA, 2591560-C91, AKM5782A
