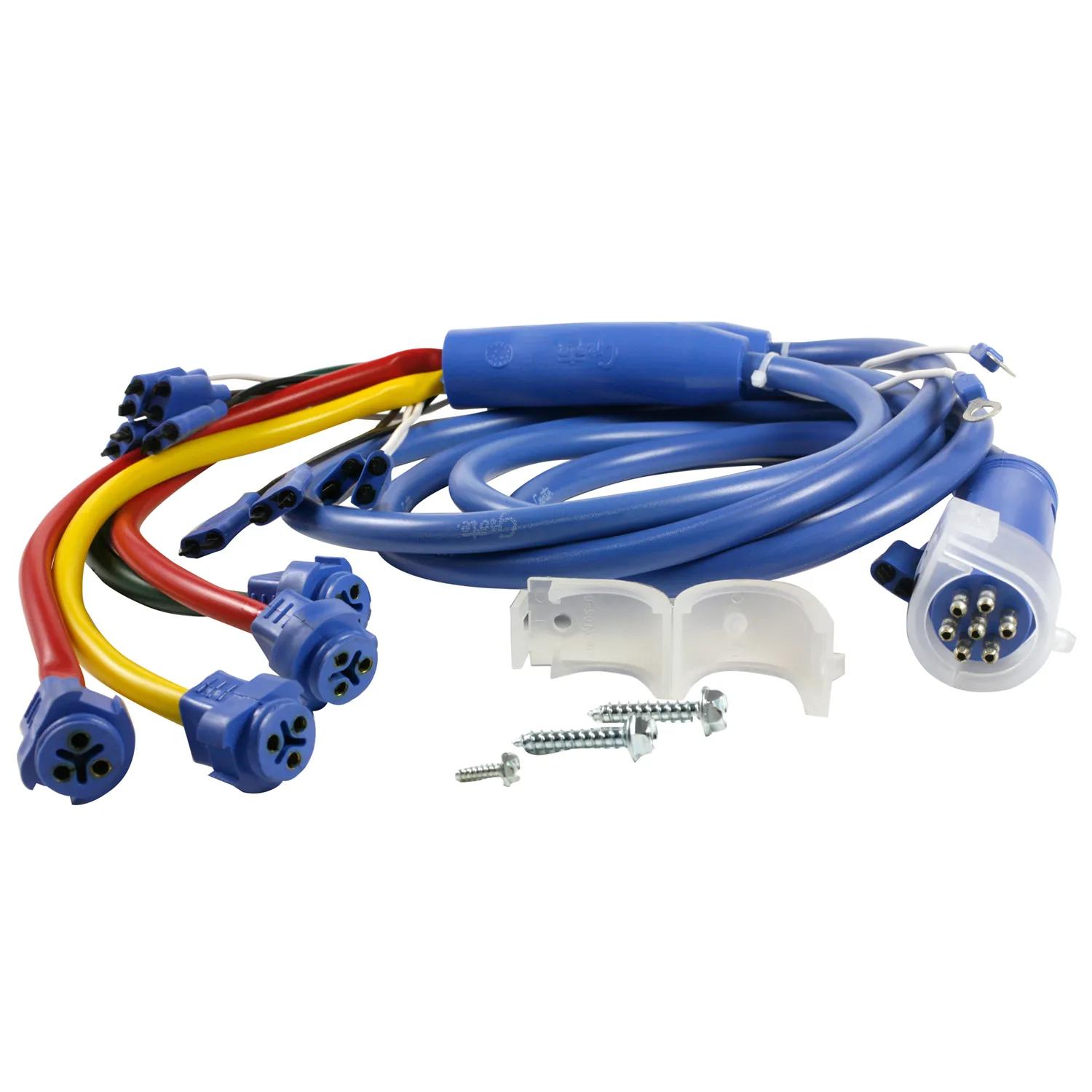

Rear Sill Harness, Blue, Female x Male, USB 7-Way Plugs x Straight Pin, 56 in, 10 Wires, 1-12 GA, 4-14 GA
#GRO67581
Sommaire du produit
Designed for female pin lamps, this rear sill harness features a redundant frame ground with ring terminal, weather-sealed connections via a foolproof USB-style plug, and a double-jacketed build for enhanced resistance to road splash and abrasion. Compatible with 4 in round and oval stop tail turn lamps, it offers durable performance with a 7-year warranty.Rear Sil Harness, Blue, Thermoplastic, Female x Male Connector, UBS 7-Way Plugs/Double Slim-Line Bullet Connector Side 1, Straight Pin/Double Standard Bullets Connector Side 2, 0.18 in Connector Size 1, 0.18 in Connector Size 2, For 4 in Round and Oval Stop Tail Turn Lamps, 1-12 GA, 4-14 GA Gauge, 10 Wires, 7 Years Warranty, 53.5 in Wire Length, 56 in Length
Caractéristiques et avantages
- All connections weather-sealed by simple, foolproof USB plug
- Entire harness double-jacketed for extra resistance to road-splash and abrasion
- Redundant frame ground with ring terminal
- Used for male pin lamps
- Double-jacketed harness resists road-splash, abrasion
Spécifications
| Color | Blue |
| Length | 56 in |
| Material | Thermoplastic |
| Package Contents | (1) ABS Harness/Cable Per Box/Bag |
| Product Category | Rear Sill Harness |
| Type | UBS Harness Rear Sill Option |
| VMRS Code | 034-004-023 |
| Warranty | 7 Years |
| Wire Length | 56 in |
| Connector Gender | Female x Male |
| Connector Side One | USB 7-Way Plugs/Double Slim-Line Bullet |
| Connector Side Two | Straight Pin/Double Standard Bullets |
| Connector Size 1 | 0.18 in |
| Connector Size 2 | 0.18 in |
| For Use With | 4 in Round and Oval Stop Tail Turn Lamps |
| Gauge | 1-12 GA, 4-14 GA |
| IP Rating | Weather-Sealed |
| Terminal Type | Ring Terminal |
| Quantity | 1 |
Interchanges et pièces équivalentes:
| 67581GRC |
