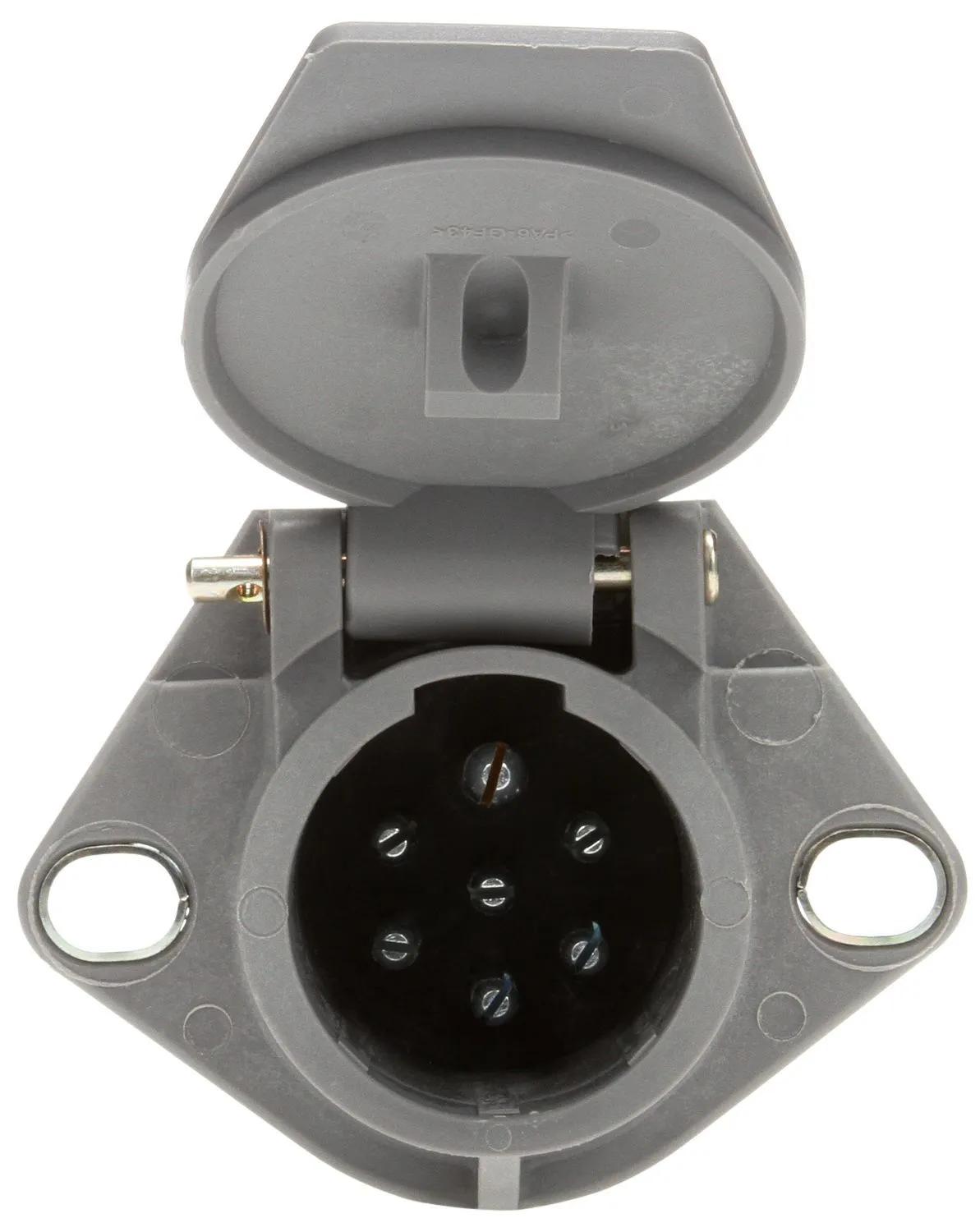

Receptacle, 50 Series, Le: 3-45/64 in
#TRL50869
Sommaire du produit
50 Series, 7 Split Pin, Grey Plastic, Flush Mount, Receptacle
Caractéristiques et avantages
- Tough GE Noryl, non-conductive, corrosion resistant body
- Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug
- Internal connections feature a direct wired ground
Spécifications
| Color | Gray |
| Depth | 3-19/64 in (8.38 cm) |
| Height | 2-49/64 in (7.04 cm) |
| Kit (Y/N) | No |
| Length | 3-45/64 in (9.4 cm) |
| Number Of Contacts | 7 |
| Series | 50 Series |
| Standard | SAE J560 |
| Type | Receptacle |
| Weight | 0.43 lb (0.2 kg) |
| Width | 3-23/32 in (9.45 cm) |
Spécifications
| Terminal Type | Split Pin |
Interchanges et pièces équivalentes:
| 41302040 |
| 14500417 |
| 43960 |
| 76915899 |
| 821002 |
| CT6101481 |
| AB30285 |
| 841350869 |
| 703050353 |
| 85106735 |
| 50869 |
| HT50603027 |
| TL50869 |
| TLD50869 |
| TRU50869 |
| MTL050869 |
| LNB36291 |
| 50869-TL |
| 8413-50869 |
| LIT50869 |
| TL 50869 |
| TL 50869 |
| 81280 |
| 82-1002GR0 |
| TKL50869 |
