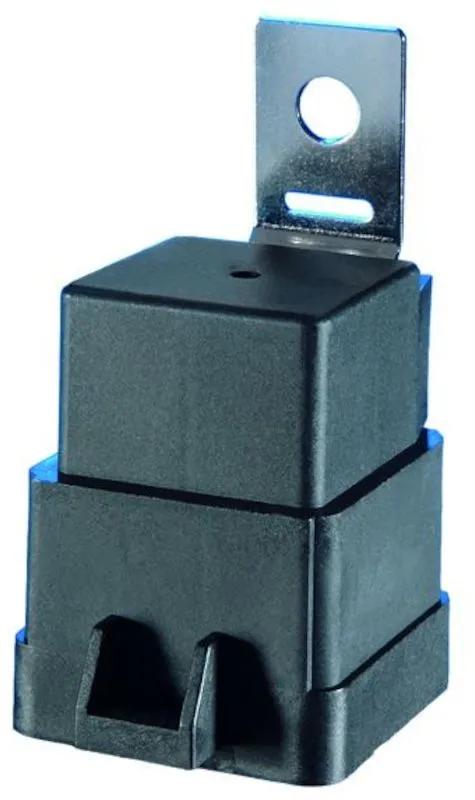

RELAY 12V 20/40A SPDT RES
#HLA931410087
Features & Benefits
- SPDT / Form C
- Resistor Coil Suppression
- Dust Cover
- Weatherproof Cover
- Mounting Bracket
Specifications
| Coil Resistance | 88 Ohm ± 10% (excluding suppression component) |
| Contact Form | 1 Form C / SPDT |
| Contact Material | AgSnO2 |
| Current (A) | 40 |
| Dielectric strength | ≥ 900 VDC |
| Height | 2,6 in. |
| Inductive Load / Switching Cycles | N/O 80A inrush / 33A steady, 300,000 cycles |
| IP Rating | IP54 DIN IEC 60 529 |
| Lamp Load (capacitive) / Switching Cycles | N/O 150A inrush / 30A steady, 300,000 cycles |
| Length | 1,4 in. |
| Max. Coil Voltage (V) | 18 |
| Maximum Ambient Temperature (C) | -40 to +125 |
| Max. Inrush Load | 150A lamp load / 166A motor load |
| Mechanical Cycles | 10000000 |
| Mechanical Shock | 500 m/s2 , 11ms, period: 1 min, 1,000 times |
| Operating / Drop out Voltage | ≤ 8.0V / ≥1.0V |
| Operating / Releasing Time | 10 ms / 10 ms |
| Pole | Single |
| Quantity | 240 |
| Rated Continuous Load | N/O 40A |
| Relay Terminal | 5 Male |
| Resistive Load / Switching Cycles | N/O 40A |
| Suppression | Resistor, 680 Ohm |
| # Terminals | 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn; 30, 87: ISO 8092 6.3 x 0.8, E-Cu, gal Sn |
| Terminal Type | Spade |
| UPC | 760687017226 |
| Vibration | 20 - 200 Hz, 50 m/s2, 6 h per axis |
| Voltage | 12 |
| Width | 1,4 in. |
| Wiring Harness Included | No |
