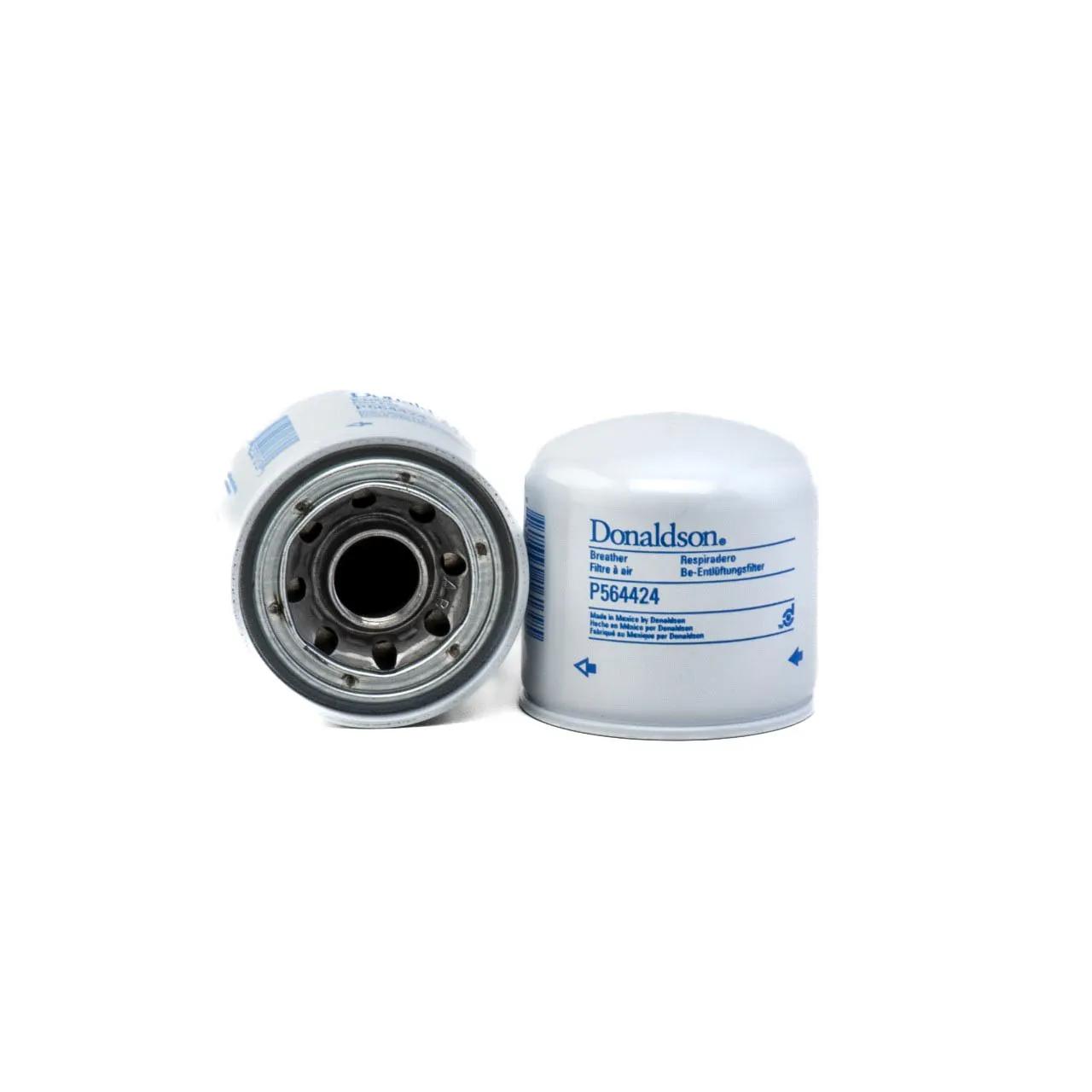

Donaldson Hydraulic Breather, Spin-On, Cellulose Media, 3.66 in OD, Thread 1 1/8-16 UN
#DONP564424
Product Overview
Donaldson hydraulic breather with spin-on style and cellulose media, designed for superior contamination control in hydraulic systems. Features precise 3.66 inch outer diameter and 1 1/8-16 UN thread size for reliable fit and performance.Hydraulic Breather, Spin-On, Cellulose Media, 3 micron Beta Efficiency, 3.66 in OD, 1-1/8-16 UN Thread, 3.66 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Length | 3-21/32 in |
| Outer Diameter | 3.66 in |
| UPC | 742330161395 |
| Beta Efficiency | 3 micron |
| Filter Type | Spin-On |
| Thread Size | 1 1/8-16 UN |
| Media Type | Cellulose |
| Product Category | Hydraulic Breather |
Interchanges & Equivalent parts:
| P564424 |
| DN P564424 |
| 0623454 |
| 0600402001 |
| 015279001 |
| HPBQ360735 |
| M666 |
| 106207 |
| 101348 |
| 623454 |
| AFR84884A |
| SGB09010P |
| 600402001 |
| AF4884A |
| HF28905 |
| 137787 |
| HF911 |
| LF473 |
| 51778454 |
| 51790517 |
| LA1764 |
| LFH4909 |
| ABG10 |
| 6460 |
| BT367 |
| BT367S |
| 7312009 |
| ABF25 |
| ABF310F |
| G1199 |
| 53431 |
| 4004062 |
| AF564424 |
| WGHB1000 |
| 94460 |
| 46460 |
| 542469 |
| SGB9010P |
| T225008 |
| C1C101348 |
| 88460 |
| 15279001 |
| 2191-P564424 |
| 87469 |
| ABF-3/10 |
| ABF-3/10-F |
| AF4884 |
| AF4884FLG |
| DONP538532 |
| DONP564424 |
| SF6509 |
| DN P564424 |
| 42469 |
| 49060 |
| BT367-S |
