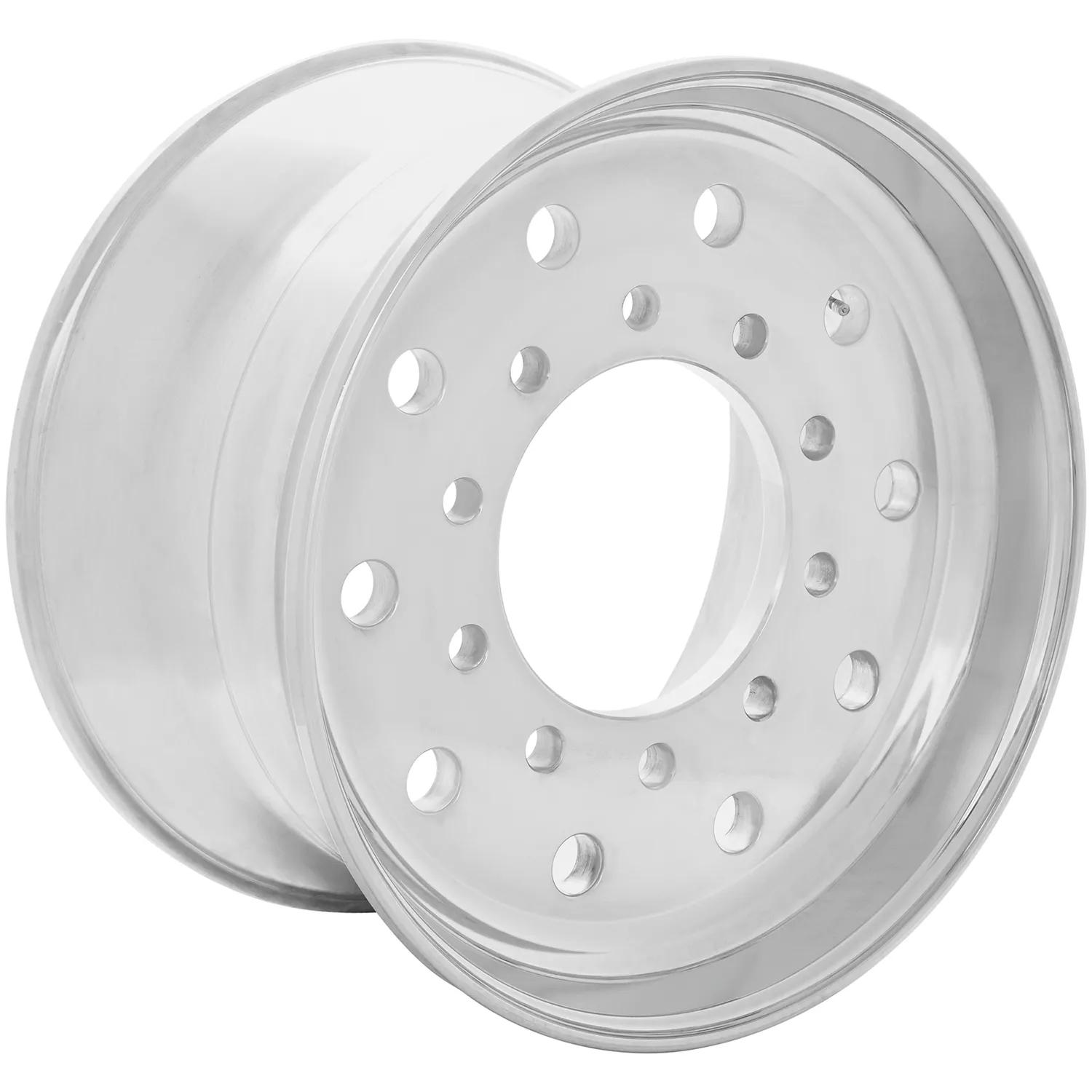

ALU WHL 22.5X12.25 OP WB HP
#ACC29683XP
Features & Benefits
- 15 TUBELESS DUPLEX DISC WHEELS
- Aluminum Hub-Piloted Mounting(1) Two-Piece Flange Nut
- Recommended Valve TR545E
- Disc Thickness 1.125 in
Specifications
| Bolt Circle | 11-1/4 in (28.58 cm) |
| Center Bore (in) | 8-21/32 in (21.99 cm) |
| Finish | Standard Polish |
| Inset (in) | 2-7/8 in (7.31 cm) |
| Material | Aluminum |
| Max Inflation (psi) | 125 psi (8.62 bar) |
| Max Load | 12300 lb (5578.23 kg) |
| Mounting | Hub-Piloted Wheels |
| Number of Bolt Holes | 10 |
| Rim Diameter (in) | 22-1/2 in (57.15 cm) |
| Rim Width (in) | 12-1/4 in (31.12 cm) |
| Weight | 62 lbs (28.12 kg) |
| Wheel Size | 22-1/2 in x 12-1/4 in (57.15 cm x 31.12 cm) |
Interchanges & Equivalent parts:
| 823651 |
| ALC823651 |
