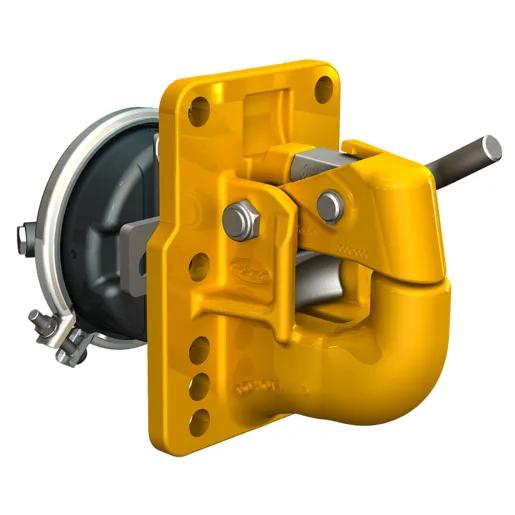

SAF-Holland PH-400-H Air Cushioned Pintle Hook Assembly with Adjustable Plunger
#HOLPH-400-H
Features & Benefits
- Air cushioned snubber is designed to minimize the gap between the pintle hook and the drawbar on vehicles with air systems
- Cast alloy steel body is heat treated for increased strength, durability, and wear resistance
- Automatic secondary lock for improved safety
- Unique one-handed latch operation
- Plunger/snubber force is developed by the vehicle’s air system to reduce wear and to provide shock absorption
- Adjustable plunger
- The complete assembly includes a pintle hook, plunger, air chamber, and mounting bracket
- Can be operated with or without the air chamber
- Complies with NOM-0350-SCT-2-2010 Safety Specifications and Test Methods
Specifications
| Application | Over-the-Road |
| Includes | Pintle hook, plunger, air chamber, mounting bracket |
| Locking Mechanism | Automatic secondary lock |
| Mounting Type | Bracket |
| Standards | NOM-0350-SCT-2-2010 Safety Specifications and Test Methods |
| Tongue Weight | 20000 lb (9070.29 kg) |
| Trailer Weight | 100000 lb (45351.47 kg) |
| Type | Pintle Hook |
| Product Category | Pintle Hook Assembly |
Interchanges & Equivalent parts:
| 100-4HA-2 |
| 281-5051 |
| 2815051 |
| HOLPH400H |
| MNC281-5051 |
| PH400H |
| 3889-PH400H |
| HLD PH 400 H |
| HOHPH400H |
| SAFPH400H |
| TWDPH400H |
| PH-400-H |
