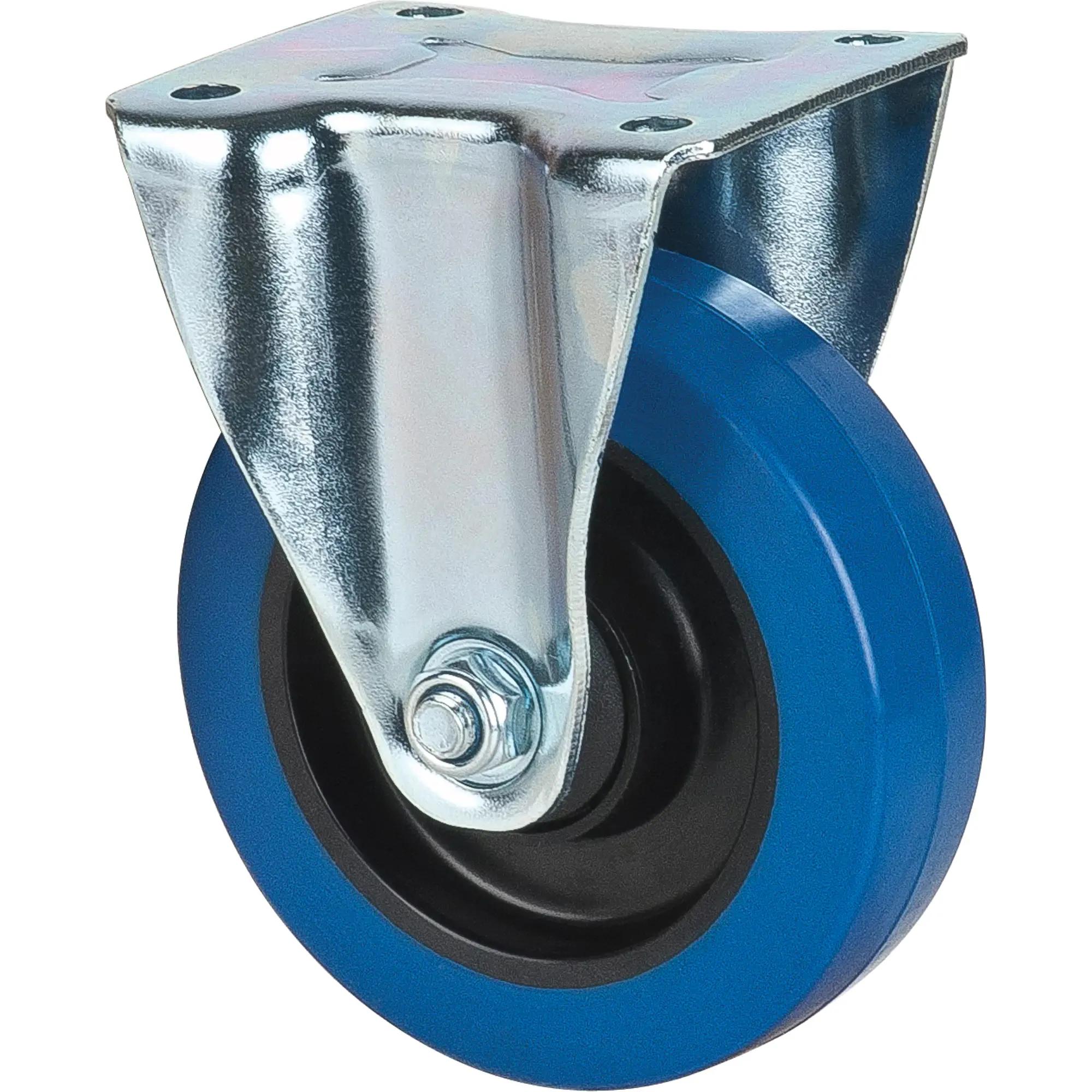

SCN Rigid Plate Caster, 5 in Rubber Wheel, 400 lbs Load Capacity, Total Locking Brake, Blue
#SCNML338
Product Overview
This Blue Caster is a rigid, 5-inch rubber caster with a 400 lbs capacity, designed for general duty applications in mobile warehouse equipment and factory use. It features a zinc chrome plated finish for corrosion resistance, an elastic rubber tread that rejects floor debris, and a non-marking design for excellent floor protection. The caster rolls easily and quietly on all floors, equipped with thread guards, ball bearings, and a sealed double ball raceway. It is constructed with a steel frame and includes a total locking brake type. The caster is categorized as a Plate Caster and is manufactured in China
Features & Benefits
- Zinc chrome plated finish provides corrosion resistance
- Elastic rubber tread rejects floor debris
- Non-marking, excellent floor protection
- High load capacity, rolls easily and quietly on all floors
- Thread guards
- Ball bearing
- Sealed double ball raceway
Specifications
| Application | General duty applications in mobile warehouse equipment and factory use |
| Bolt Circle Diameter | 2-3/8 in x 3-1/8 in |
| Diameter | 5 in |
| Dimensions | 3-3/8 in x 4 in |
| Finish | Zinc chrome plated |
| Height | 6 in |
| Hub Style | Plate Caster |
| Material | Steel |
| Max Load (lbs) | 400 lbs |
| Mounting Hole Diameter | 3/8 in |
| Quantity | 1 |
| Type | Rigid |
| Wheel Diameter | 5 in |
| Wheel Size | 5 in |
| Width | 1-3/8 in |
| Manufacturer Part Number | ML338 |
| Product Category | Plate Casters |
