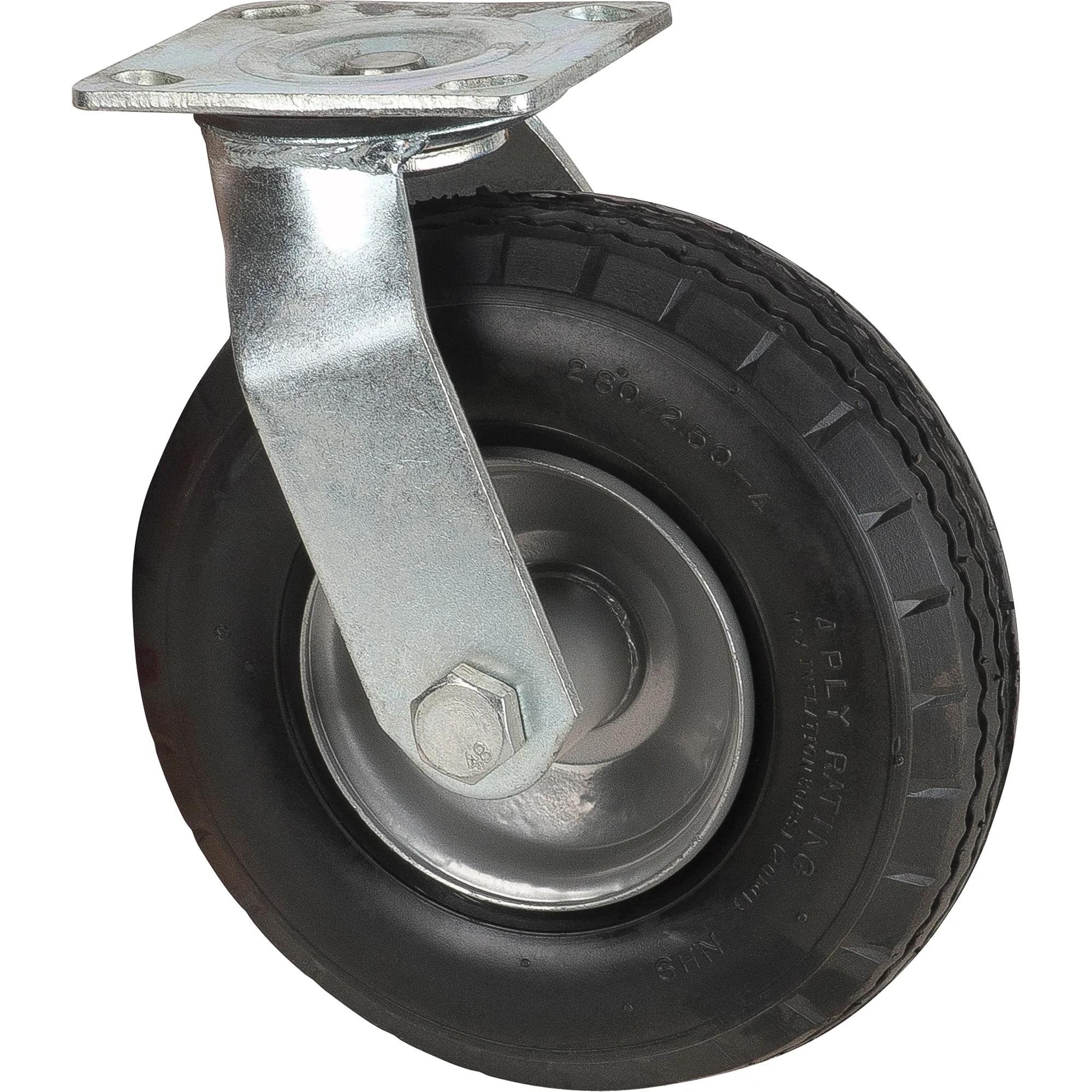

SCN Swivel Caster, 8 in Pneumatic Wheel, 350 lbs Load Capacity, Steel, 4 in x 4-1/2 in Plate

#SCNMN222

Product Overview


This product is a pneumatic caster with a swivel design, 8 in pneumatic wheels, and a capacity of 350 lbs Each caster features four ply pneumatic wheels that provide smooth and quiet rolling over rough surfaces and outdoor terrain. The shock absorbing properties offer maximum protection to both the load and the floor. The "Air cushion" feature ensures the safe transport of the most fragile materials and instruments without damage. It is not recommended for floors with metal shavings or corrosive chemicals. The plate size is 4 in x 4 1/2 in with bolt hole centers measuring 2 3/4 in x 3 3/8 in and bolt hole size of 13/32 in. Suitable surface applications include concrete, brick, carpet, steel, tile, asphalt, wood, and linoleum. For optimum use, pneumatic wheels must be properly inflated

See More
See Less

Features & Benefits


  • Four ply pneumatic casters offer smooth and quiet rolling over the roughest surfaces and outdoor terrain
  • Shock absorbing properties give the greatest possible protection to both the load and floor
  • The "Air cushion" feature will transport the most fragile material and instruments without damage
  • Not recommended for floors with metal shavings or corrosive chemicals

Specifications


Application Type Concrete, brick, carpet, steel, tile, asphalt, wood and linoleum
Bolt Circle Diameter 2-3/4 in x 3-3/8 in
Dimensions 4 in x 4-1/2 in
Height 10 in
Material Steel
Max Load (lbs) 350 lbs
Mounting Hole Diameter 13/32 in
Quantity 1
Type Swivel
Wheel Diameter 8 in
Width 2 in
Manufacturer Part Number MN222
Product Category Plate Casters
