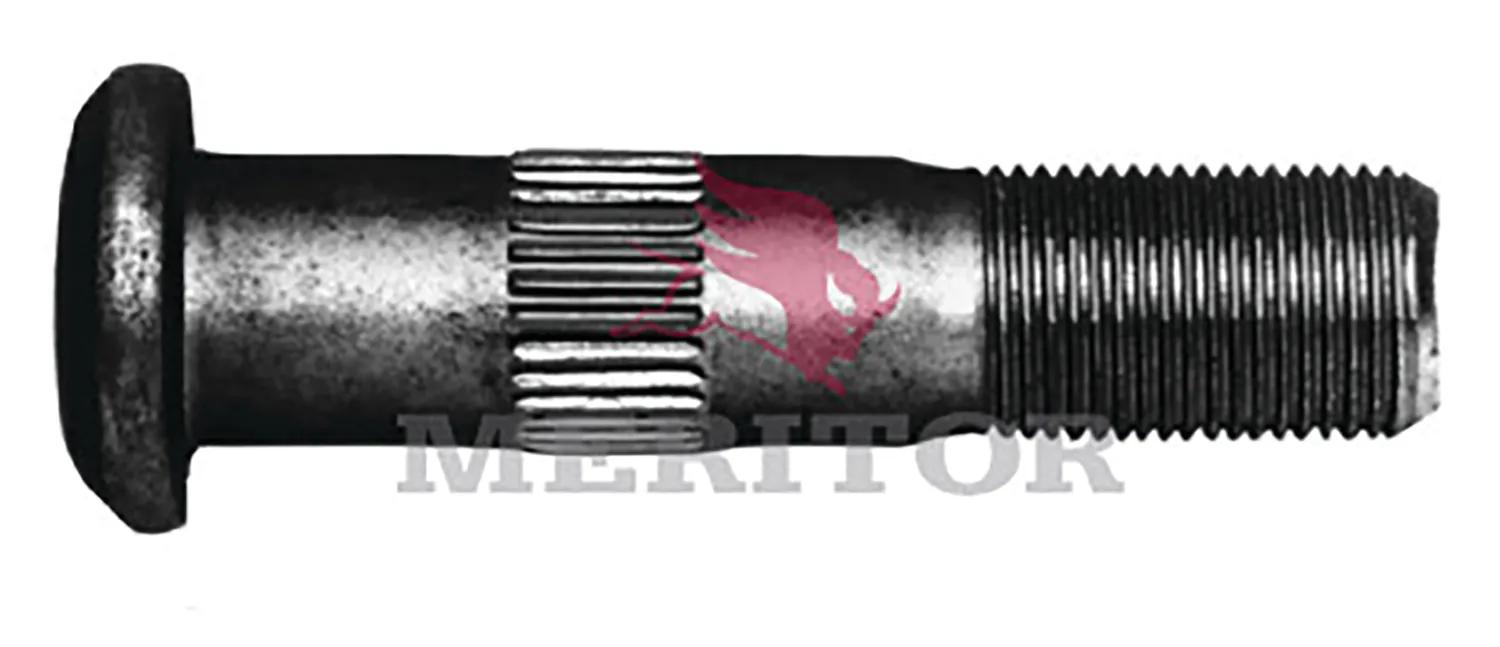

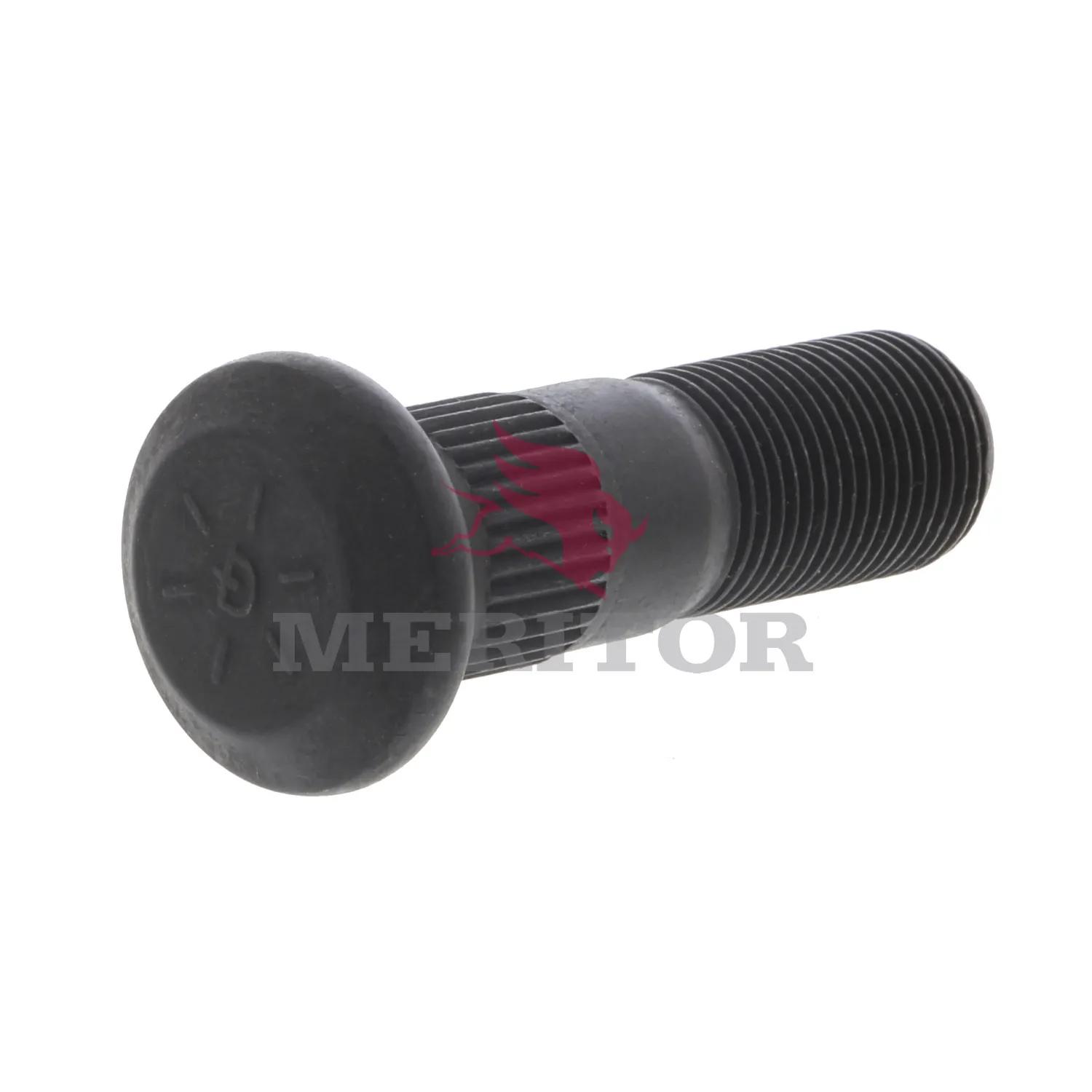

Serrated Stud, UHL: 2-5/8 in, Thread: 31/32 in x 3/4-16
#ROCR004966L
Product Overview
We Offer a Wide Variety of Wheel Attaching Hardware Sure to Meet Your Fleets Ever Changing Needs.
Features & Benefits
- Made of hardened steel that’s specially treated against premature failure for a longer service life
- Proven robust and lightweight design helps improve efficiency and lower fuel consumption
- Meets or exceeds OEM specifications to ensure an optimum fit with OEM wheel ends and axles
- Supports a wide range of axle configurations and is compatible with superfast gear ratios
Specifications
| Body Diameter | 25/32 in (1.98 cm) |
| Body Length | 1-1/4 in (3.18 cm) |
| Hex | 1-9/32 in (3.26 cm) |
| Length | 2-5/8 in (6.67 cm) |
| Length from Under Head-OAL | 2-5/8 in (6.68 cm) |
| Package Quantity | 10 |
| Right or Left Hand Threads | LH |
| Serration | Serrated |
| Thread | 3/4-16 |
| Thread Length | 31/32 in (2.47 cm) |
| Type | Round |
| Application | Used on TK. TKL. RL. TL (also Eaton). With some cast drums on TK. TKL. use R004968-R/L. Used on RN. RQ. TKN. |
Interchanges & Equivalent parts:
| 50-1123L |
| M77 |
| 13-1103L |
| 50-1118L |
| E-4966L |
| E4966L |
| U73X1713 |
| X1713 |
| 1541703L |
| 184197R1 |
| 18AX1109 |
| 20X431 |
| 3946404 |
| 50-33A-30 |
| 501123L |
| 59263 |
| 59264 |
| 610-209 |
| 7EQH-1119 |
| 8235-R004966L |
| 877578 |
| 9628 R004966 L |
| 983878R1 |
| ATIR004966L |
| KB4966L |
| M-76 |
| M-77 |
| MWCX01713 |
| NL5305 |
| OK59264 |
| R004966L-RI |
| TDA R004966L |
| TDAR004966L |
| TP821L |
| TWDR004966L |
| W-67 |
| W67 |
| WA1213 |
| WE4966L |
| X-1713 |
| PA11632 |
| 610209 |
| M76 |
