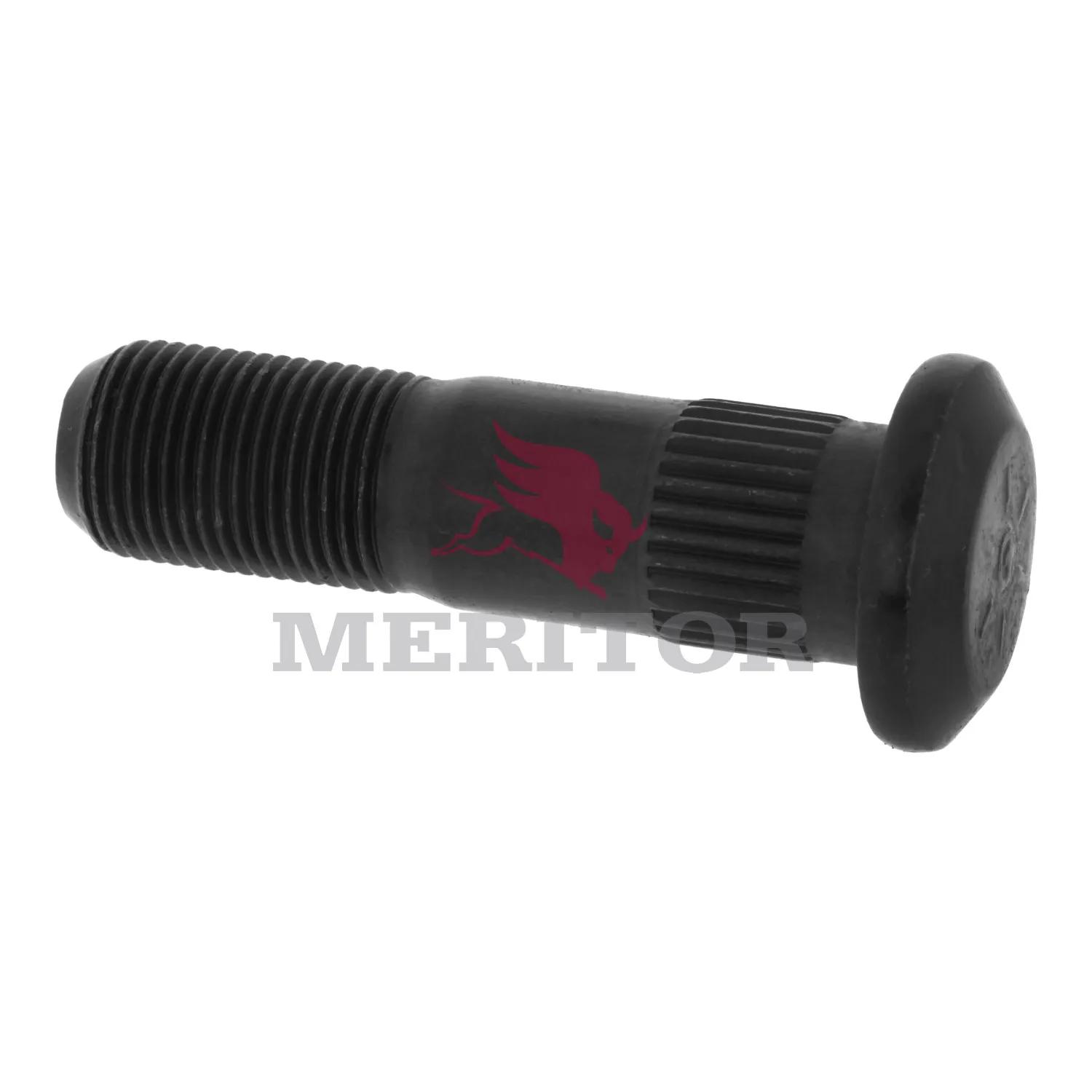

Serrated Stud, UHL: 2-7/8 in, Thread: 31/32 in x 3/4-16
#ROCR004967R
Product Overview
We Offer a Wide Variety of Wheel Attaching Hardware Sure to Meet Your Fleets Ever Changing Needs.
Features & Benefits
- Made of hardened steel that’s specially treated against premature failure for a longer service life
- Proven robust and lightweight design helps improve efficiency and lower fuel consumption
- Meets or exceeds OEM specifications to ensure an optimum fit with OEM wheel ends and axles
- Supports a wide range of axle configurations and is compatible with superfast gear ratios
Specifications
| Body Diameter | 25/32 in (1.98 cm) |
| Body Length | 1-1/2 in (3.81 cm) |
| Height | 3-29/64 in (8.78 cm) |
| Hex | 1-9/32 in (3.26 cm) |
| Length | 7-3/32 in (18.02 cm) |
| Length from Under Head-OAL | 2-7/8 in (7.32 cm) |
| Package Quantity | 10 |
| Right or Left Hand Threads | RH |
| Serration | Serrated |
| Thread | 3/4-16 |
| Thread Length | 31/32 in (2.47 cm) |
| Type | Round |
| Application | Used on TK. TKL. RL. TL (also Eaton). With some cast drums on TK. TKL. use R004968-R/L. Used on RN. RQ. TKN. |
Interchanges & Equivalent parts:
| 13-1107R |
| 50-1127R |
| E-4967R |
| E4967R |
| M2778 |
| U73W68 |
| U73X1823 |
| W68 |
| X1823 |
| 1925790 |
| 501127R |
| 67245 |
| 8235-R004967R |
| 9628 R004967 R |
| ATIR004967R |
| M-78 |
| NL5306 |
| OK61968 |
| R004967R-RI |
| TDA R004967R |
| TDAR004967R |
| TP822R |
| TWDR004967R |
| 1541704R |
| 20X1576 |
| 610-089 |
| 61968 |
| 6196869 |
| 61969 |
| 6724567246 |
| 968 |
| SIR968 |
| W-68 |
| WA1216 |
| WE4967R |
| X-1823 |
| 180217 |
| 131107R |
| 3723968 |
| 3946400 |
| MERR004967R |
| RWR004967R |
