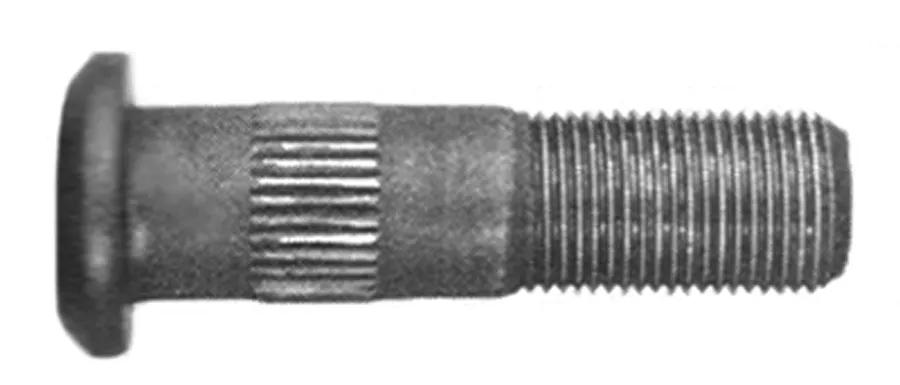

Serrated Stud, UHL: 3-1/8 in, Thread: 1-1/64 in x 3/4-16
#ROCR004969L
Specifications
| Application | Used on TK. TKL. RL. TL (also Eaton). With some cast drums on TK. TKL. use R004968-R/L. Used on RN. RQ. TKN. |
| Body Diameter | 25/32 in (1.99 cm) |
| Body Length | 1-3/4 in (4.45 cm) |
| Head Diameter | 1-9/32 in (3.26 cm) |
| Head Thickness | 5/16 in (0.8 cm) |
| Height | 3-1/4 in (8.26 cm) |
| Length | 7 in (17.78 cm) |
| Length from Under Head-OAL | 3-1/8 in (7.94 cm) |
| Note | Stepped Body Diameter |
| OEM # | Budd 59184; Fruehauf 582887 |
| Quantity | 10 |
| Right or Left Hand Threads | LH |
| Serration | Serrated |
| Thread | 3/4-16 |
| Thread Diameter | 3/4 in (1.91 cm) |
| Thread Length | 1-1/64 in (2.59 cm) |
| Type | Round |
| Weight | 5.08 lbs (2.31 kg) |
| Width | 4-1/2 in (11.43 cm) |
Interchanges & Equivalent parts:
13-1105L, 50-1131L, E-4969L, M83, U73X1387, X1387, 1541706L, 3946408, 501131L, 582887, 59183, 59184, 67249, 700779, 8235-R004969L, 9628 R004969 L, ATIR004969L, KB4969L, M-83, MWCX01387, NL5311, OK59184, R004969L-RI, RWR004969L, TDA R004969L, TDAR004969L, TWDR004969L, W-73, W73, WA1221, WE4969L, X-1387, 13-1105L, X1387, 50-1131L, M83, E-4969L, U73X1387, 501131L, ATIR004969L, M-83, 3946408, 67249, 59184, 1541706L, 59183, OK59184, R004969L-RI, TWDR004969L, 700779, RWR004969L, KB4969L, MWCX01387, NL5311, 8235-R004969L, TDAR004969L, 582887, 9628 R004969 L, TDA R004969L, WA1221, WE4969L, W73, W-73, X-1387, 180179, PA11662
