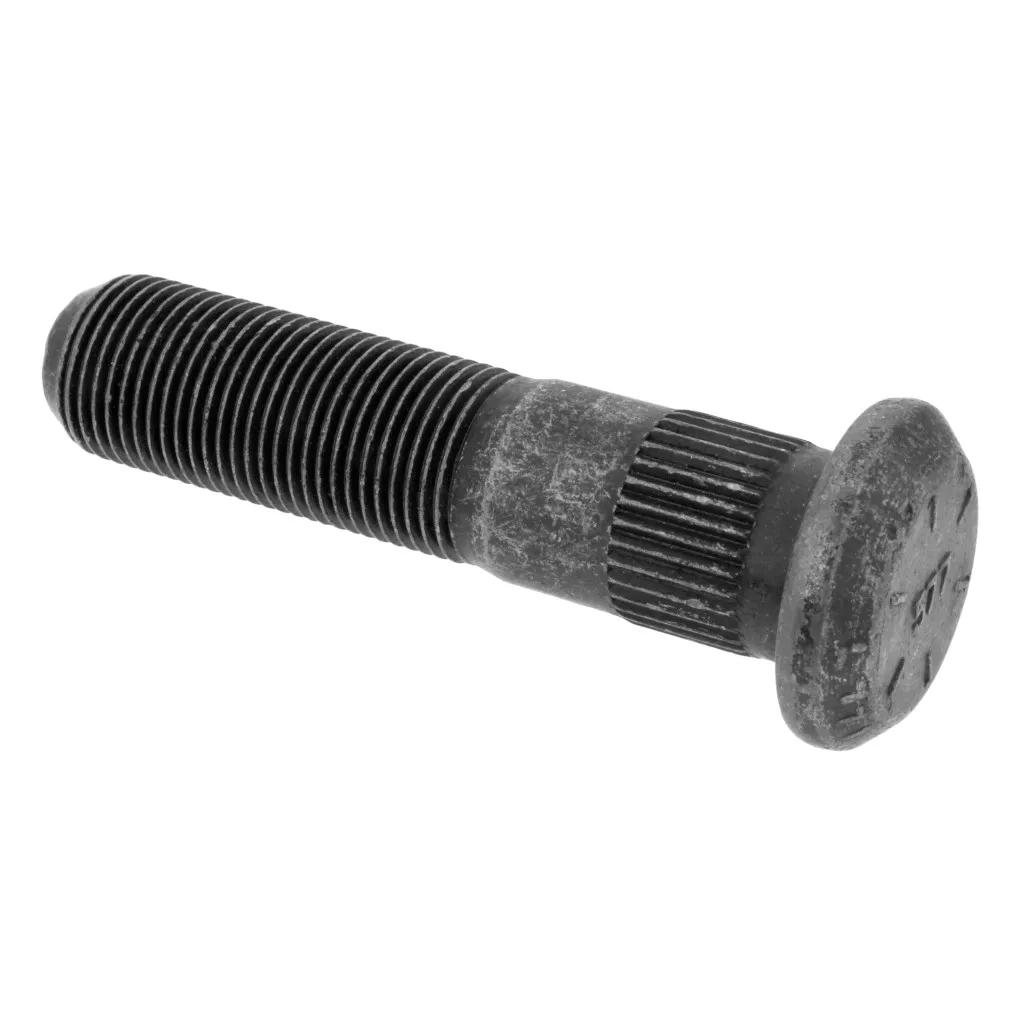

Serrated Stud, UHL: 3-21/64 in, Thread: 1-1/4 in x 3/4-16
#ROC20X1577Z
Product Overview
Meritor is the global braking leader both in size and capability for the commercial vehicle industry, supplying braking systems for trucks, trailers, buses and coaches. We are proud of our market-leading position with cost of ownership optimized through the applications of advanced predictive techniques and innovative manufacturing processes.
Specifications
| Body Diameter | 25/32 in (1.98 cm) |
| Body Length | 1 in (2.54 cm) |
| Hex | 1-5/16 po (3,34 cm) |
| Length | 3-1/3 in (8.47 cm) |
| Length from Under Head-OAL | 3-21/64 in (8.46 cm) |
| Right or Left Hand Threads | LH |
| Serration | Serrated |
| Serration Length | 1/2 in (1.27 cm) |
| Thread | 3/4-16 UNF-2A |
| Thread Length | 1-1/4 in (3.18 cm) |
| Type | Round |
Interchanges & Equivalent parts:
| 8235-20X1577Z |
| TDA 20X1577Z |
| TDA20X1577Z |
