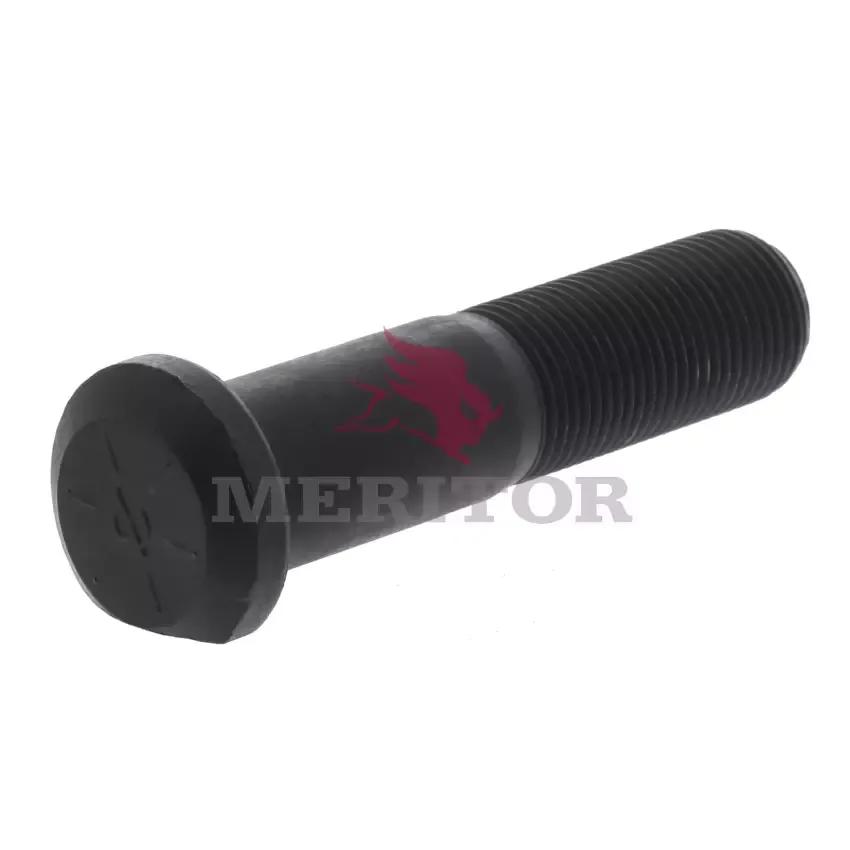

Serrated Stud, UHL: 3-5/32 in, Thread: 1-13/32 in x 3/4-16
#ROCR006026R
Specifications
| Application | For Aluminum Hubs |
| Body Diameter | 25/32 in (1.99 cm) |
| Body Length | 1-13/32 in (3.58 cm) |
| Height | 3-29/64 in (8.78 cm) |
| Length | 7-3/32 in (18.02 cm) |
| Length from Under Head-OAL | 3-5/32 in (8.02 cm) |
| Quantity | 10 |
| Right or Left Hand Threads | RH |
| Serration | Plain |
| Thread | 3/4-16 |
| Thread Diameter | 3/4 in (1.91 cm) |
| Thread Length | 1-13/32 in (3.58 cm) |
| Type | Clipped |
| Weight | 4.78 lbs (2.17 kg) |
| Width | 5-3/32 in (12.94 cm) |
Interchanges & Equivalent parts:
13-2372R, 50-1260R, E-6026R, W522, 100013R, 1542301R, 3098599, 501260R, 8235-R006026R, 9628 R006026 R, ATIR006026R, CM100013, M-3220, R006026R-RI, TDA R006026R, TDAR006026R, MWC101150, W-522, X-2198, 13-2372R, 50-1260R, E-6026R, W522, CM100013, R006026R-RI, 100013R, 3098599, TDAR006026R, 8235-R006026R, 1542301R, 501260R, 9628 R006026 R, ATIR006026R, M-3220, TDA R006026R, MWC101150, W-522, X-2198
